Fuel Gauge: Testing and Inspection

INSPECTION

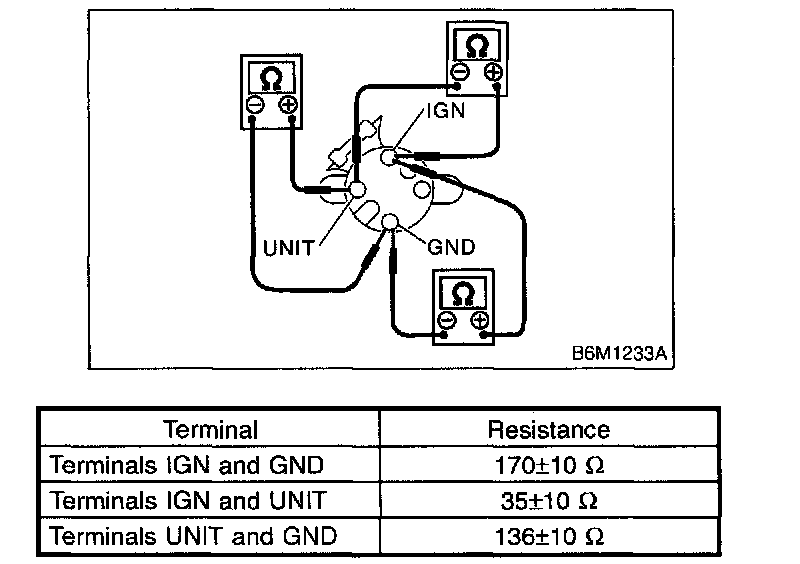

Measure fuel gauge resistance.
If NG, replace speedometer and fuel gauge assembly.
If OK, replace combination meter printed circuit.
