Cigarette Lighter: Service and Repair

REMOVAL
1. Disconnect ground cable from battery.
2. Remove center panel.

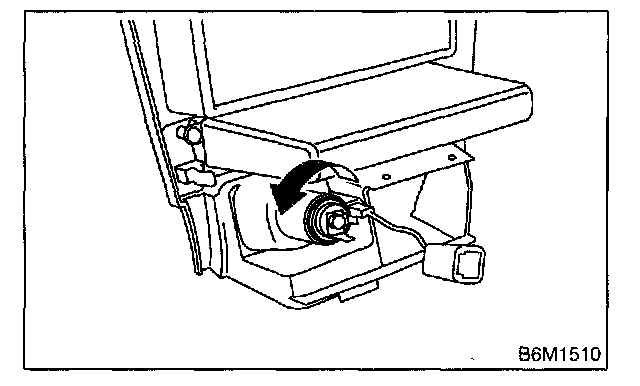

3. Disconnect harness connectors and remove cigarette lighter.

INSTALLATION
Install in the reverse order of removal.
