Blower Motor Is Not Rotated

BLOWER MOTOR IS NOT ROTATED

TROUBLE SYMPTOM:

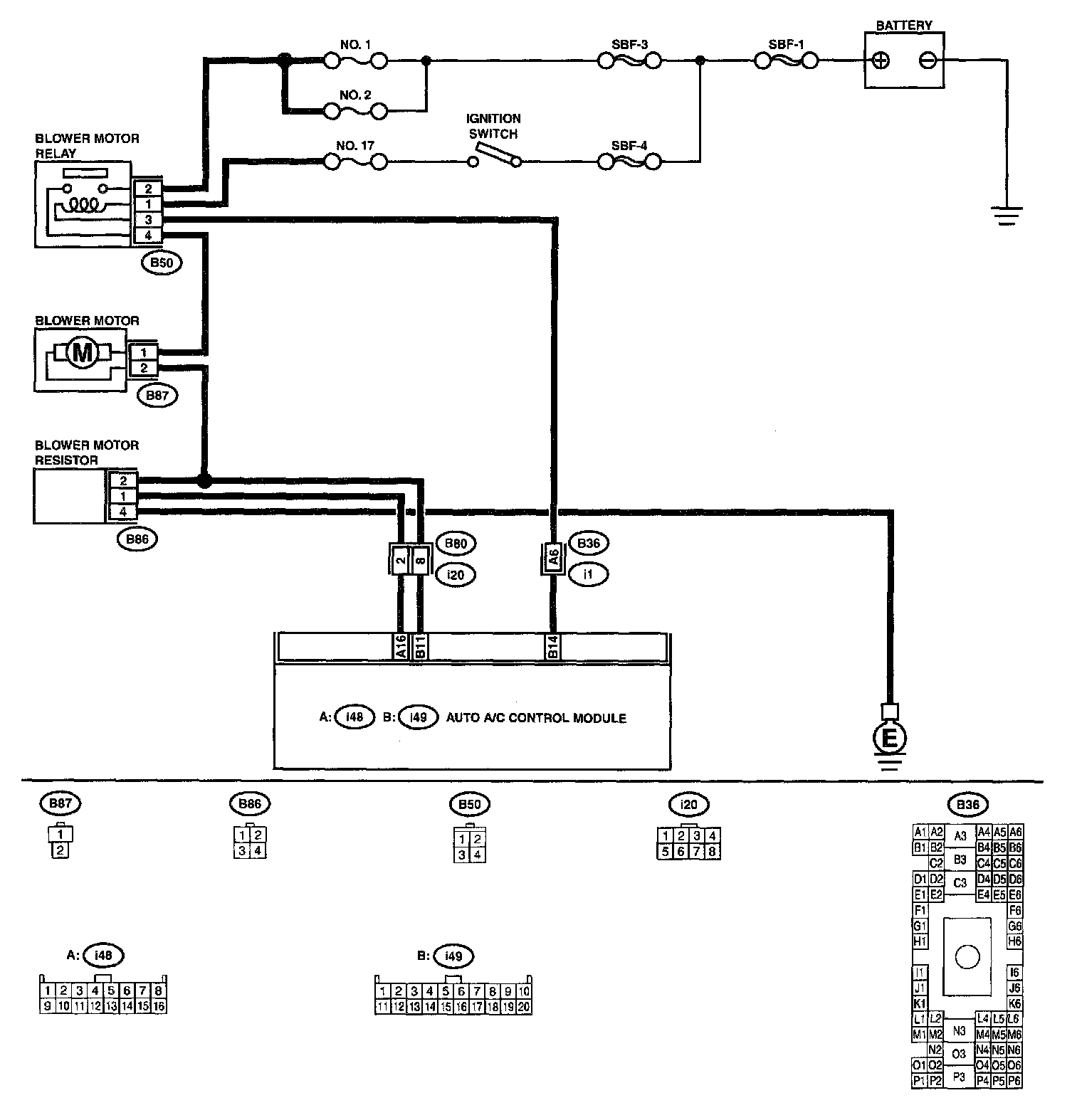

Wiring Diagram:

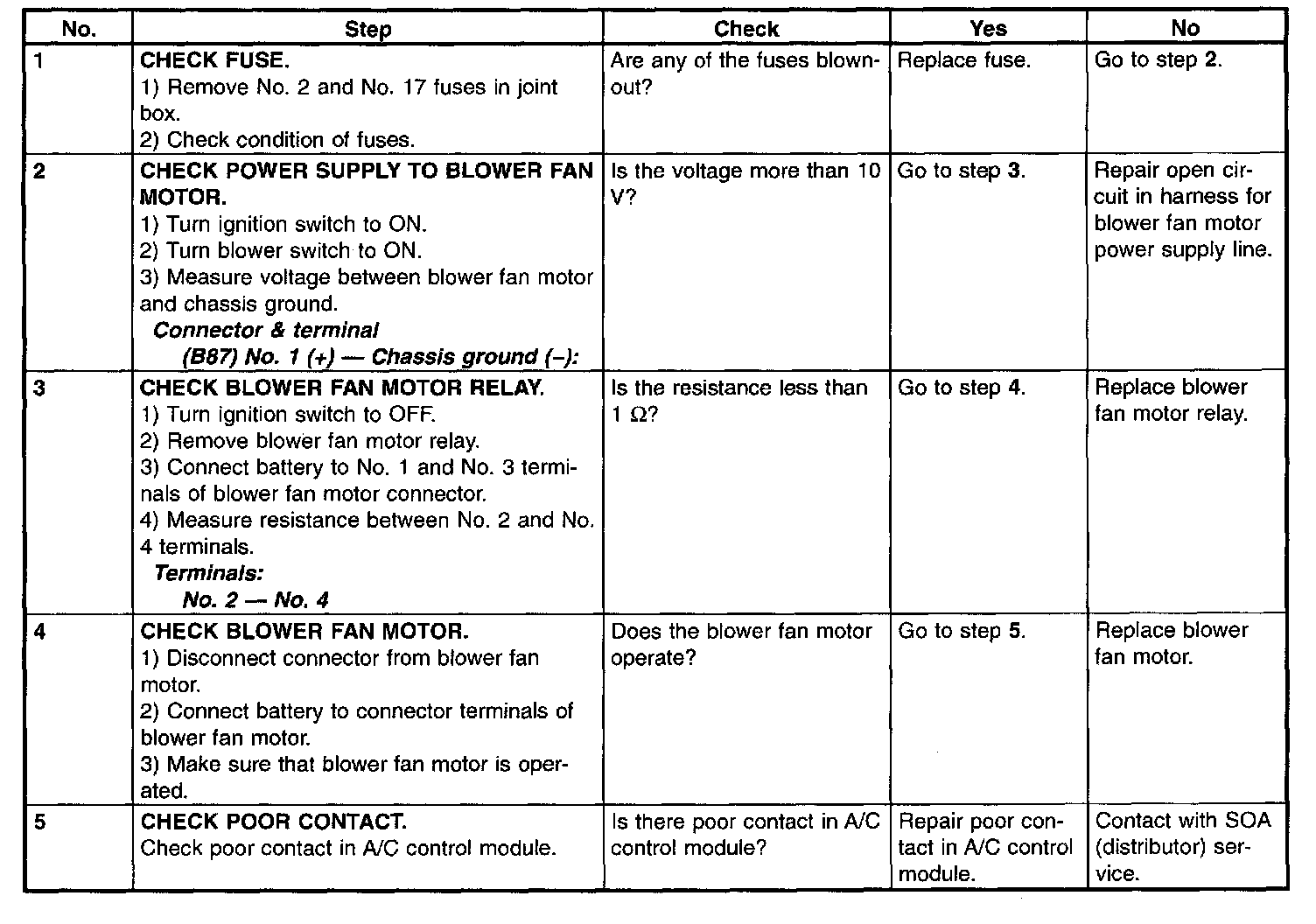

Step 1 - 5:




- Blower motor is not rotated.
- Blower motor is not rotated in "HI".
