Disassembly and Assembly

DISASSEMBLY

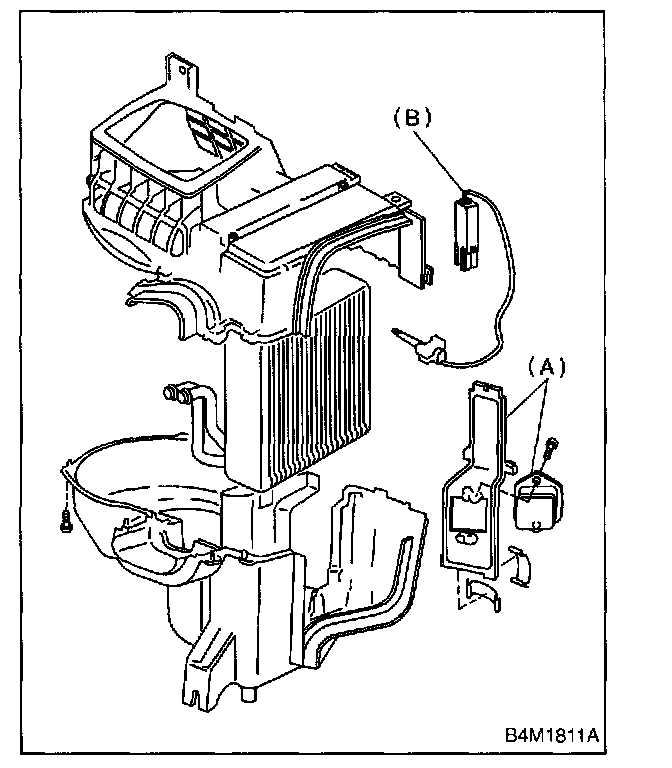

1. Remove resistor (A) and thermistor (B) from intake unit.




2. Remove screws and clips to separate intake unit.

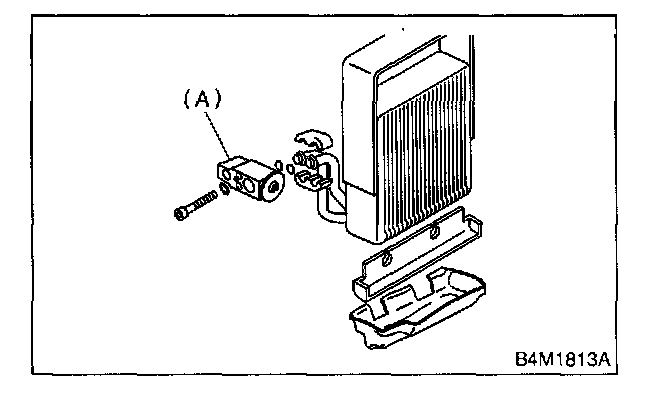

3. Remove expansion valve (A) from evaporator.

CAUTION: If evaporator is replaced, add appropriate amount of compressor oil to evaporator.

ASSEMBLY

Assemble in the reverse order of disassembly.

CAUTION: Replace O-rings with new ones, and then apply compressor oil.
