AIR MIX SERVO MOTOR

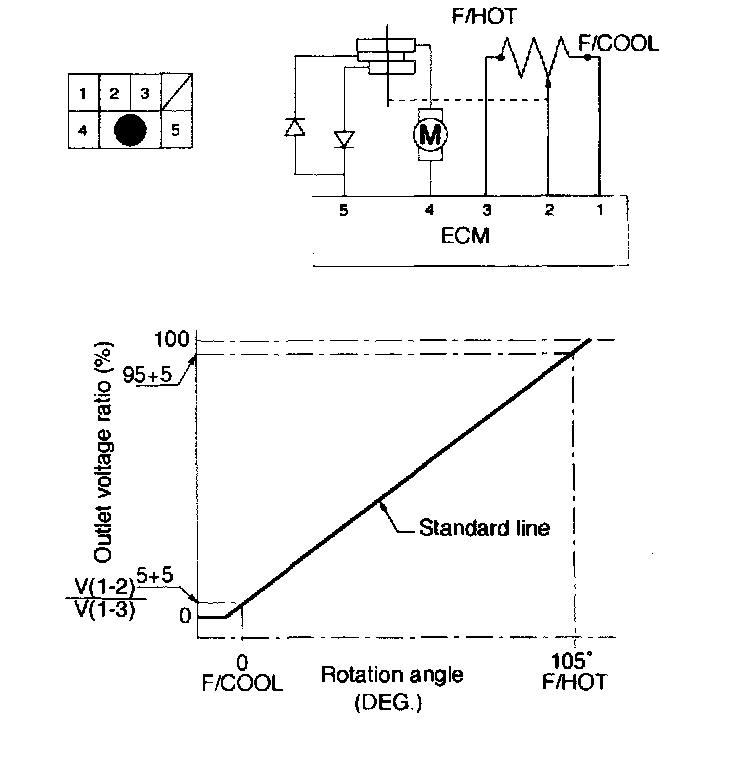

According to signals from the ECM, the servo motor forming integral part of the air mix damper rotates in one or the other direction to change the opening of the damper via a link.
The motor has a built-in potentiometer which detects the opening of the air mix damper and sends the result to the ECM.
