Oil Pressure Regulator Valve: Service and Repair

REMOVAL





1) Disconnect battery ground cable.
2) Lift-up the vehicle.





3) Remove under cover.
4) Drain coolant.
5) Lower the vehicle.
6) Remove radiator.
7) Remove V-belt.
8) Remove front chain cover.
9) Remove timing chain assembly.





10) Remove oil pump relief valve.

INSTALLATION
1) Install oil pump relief valve case and gasket.





1 of 2





2 of 2

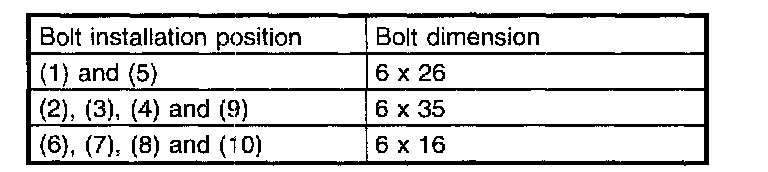

2) Tighten the bolts in the numerical sequence shown in the figure.
Tightening torque: 6.4 Nm (0.65 kgf-m, 4.7 ft. lbs.)
3) Install timing chain assembly.
4) Install front chain cover.
5) Install V-belt.
6) Install radiator.
7) Fill coolant.
