Water Pump: Service and Repair

REMOVAL
1) Remove radiator.
2) Remove V-belt.
3) Remove front chain cover.
4) Remove timing chain.





5) Remove water pump.

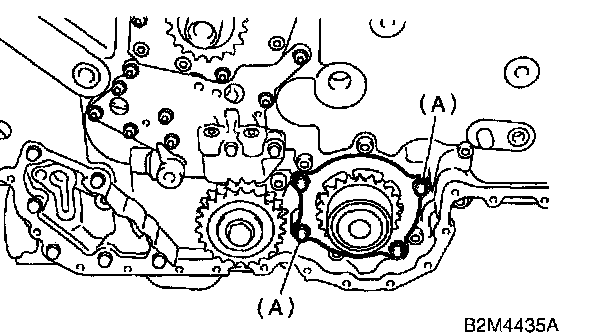

NOTE: When water pump cannot be easily removed, install M8 bolt in opposing bolt holes ("A" in figure). Alternately tightening each bolt should be enough to gradually free water pump from rear chain cover.

INSTALLATION

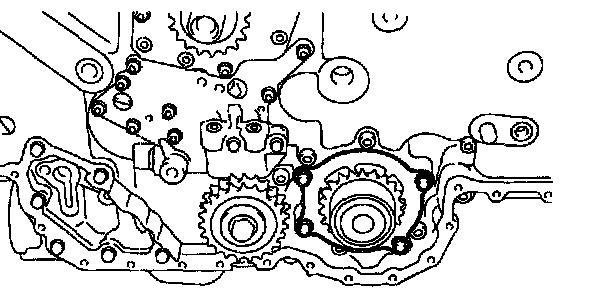

1) Install water pump onto rear chain cover.
Tightening torque: 6.4 Nm (0.65 kgf-m, 4.7 ft. lbs.)

NOTE:
^ Replace O-rings with a new one.
^ Applying engine coolant to O-ring makes water pump installation easier.

2) Install timing chain assembly.
3) Install front chain cover.
4) Install V-belt.
5) Install radiator.
6) Fill coolant.
