Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Brakes and Traction Control >> Parking Brake System >> System Diagram

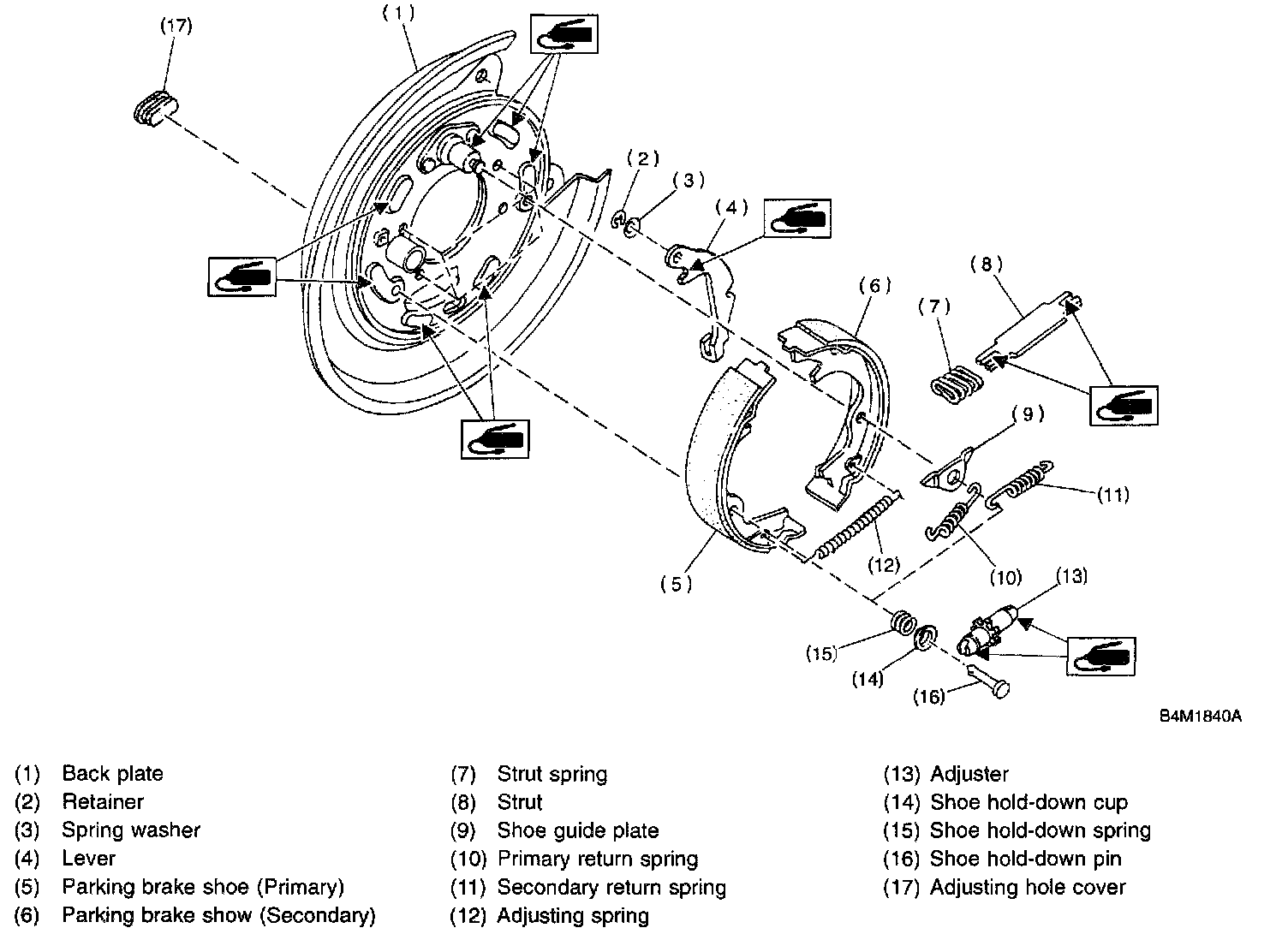

System Diagram

COMPONENT





1. PARKING BRAKE





2. PARKING BRAKE CABLE
