Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> Wiring Diagrams

Wiring Diagrams

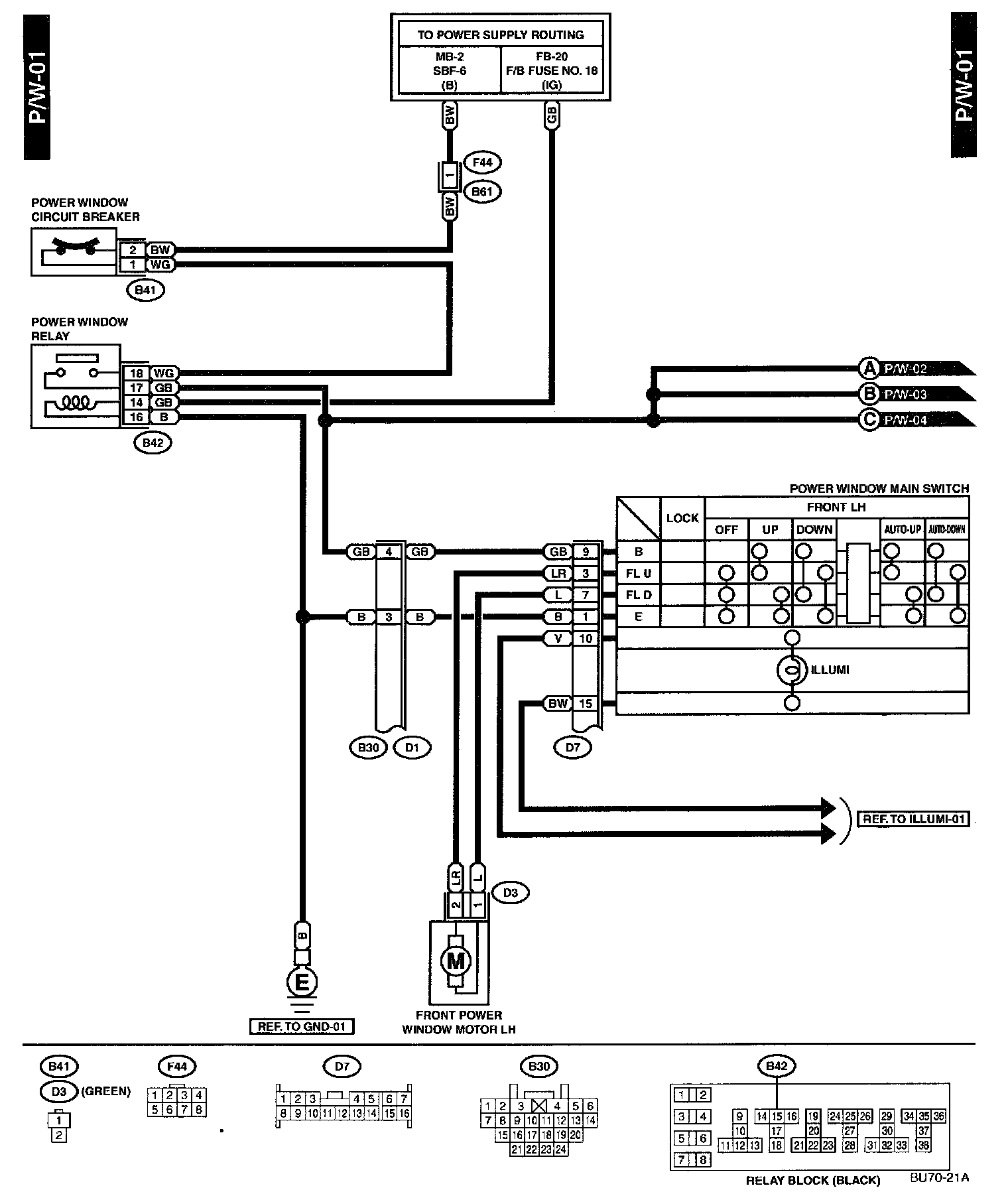

P/W-01 - Power Window System:



P/W-02 - Power Window System:



P/W-03 - Power Window System:

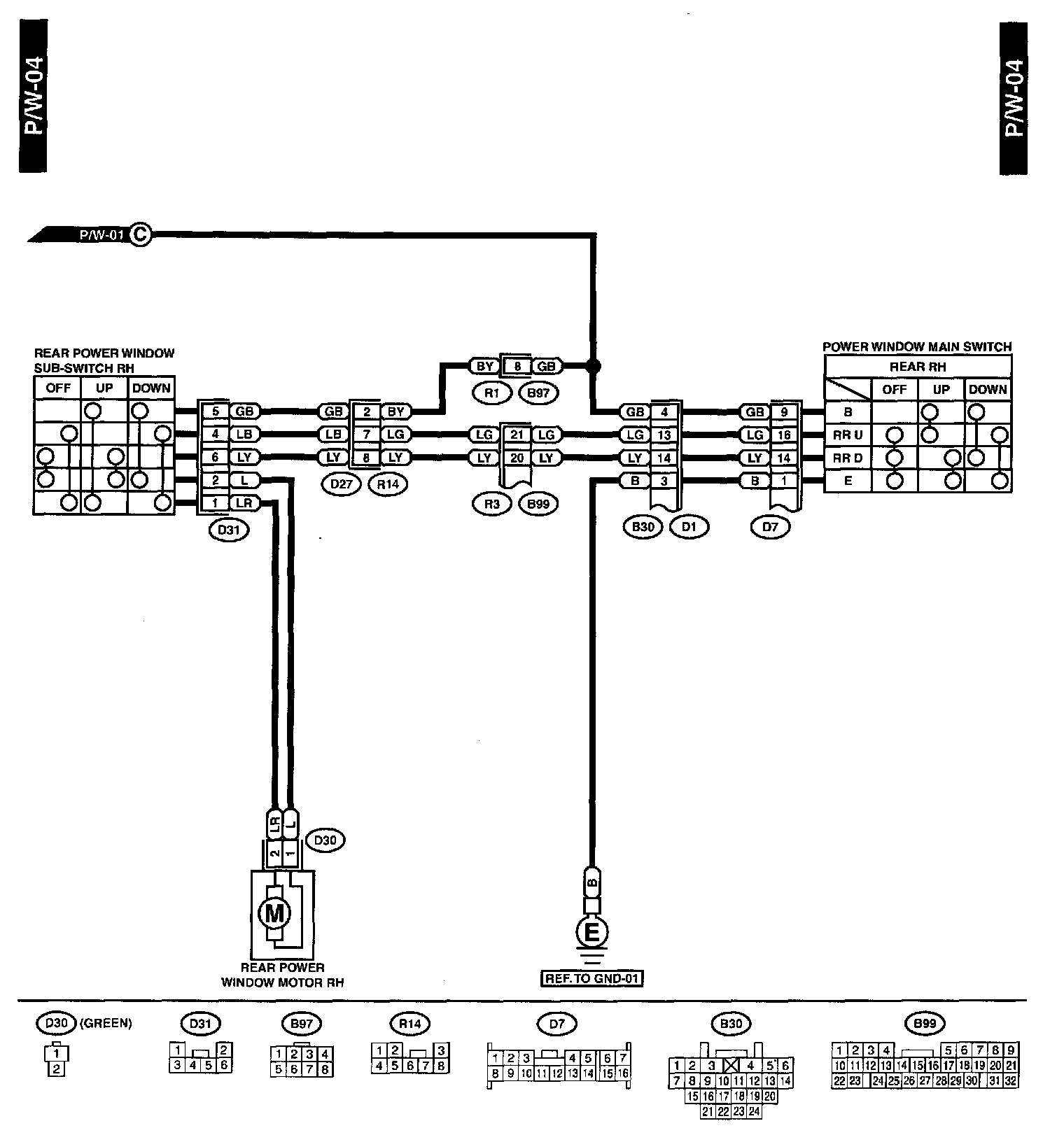

P/W-04 - Power Window System:
