Auxiliary Power Outlet

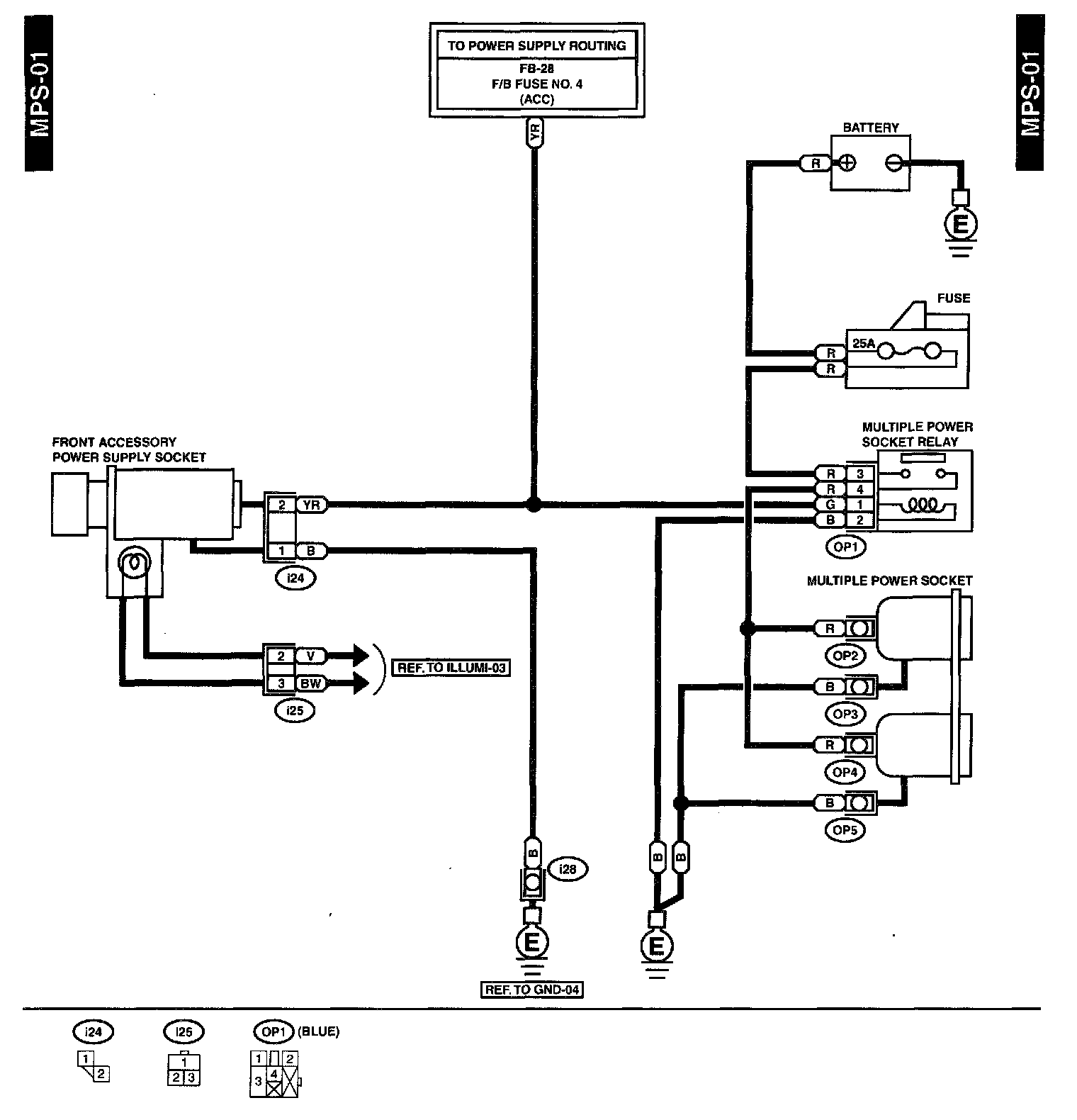

MPS-01 - Multiple Power Socket System (Option):

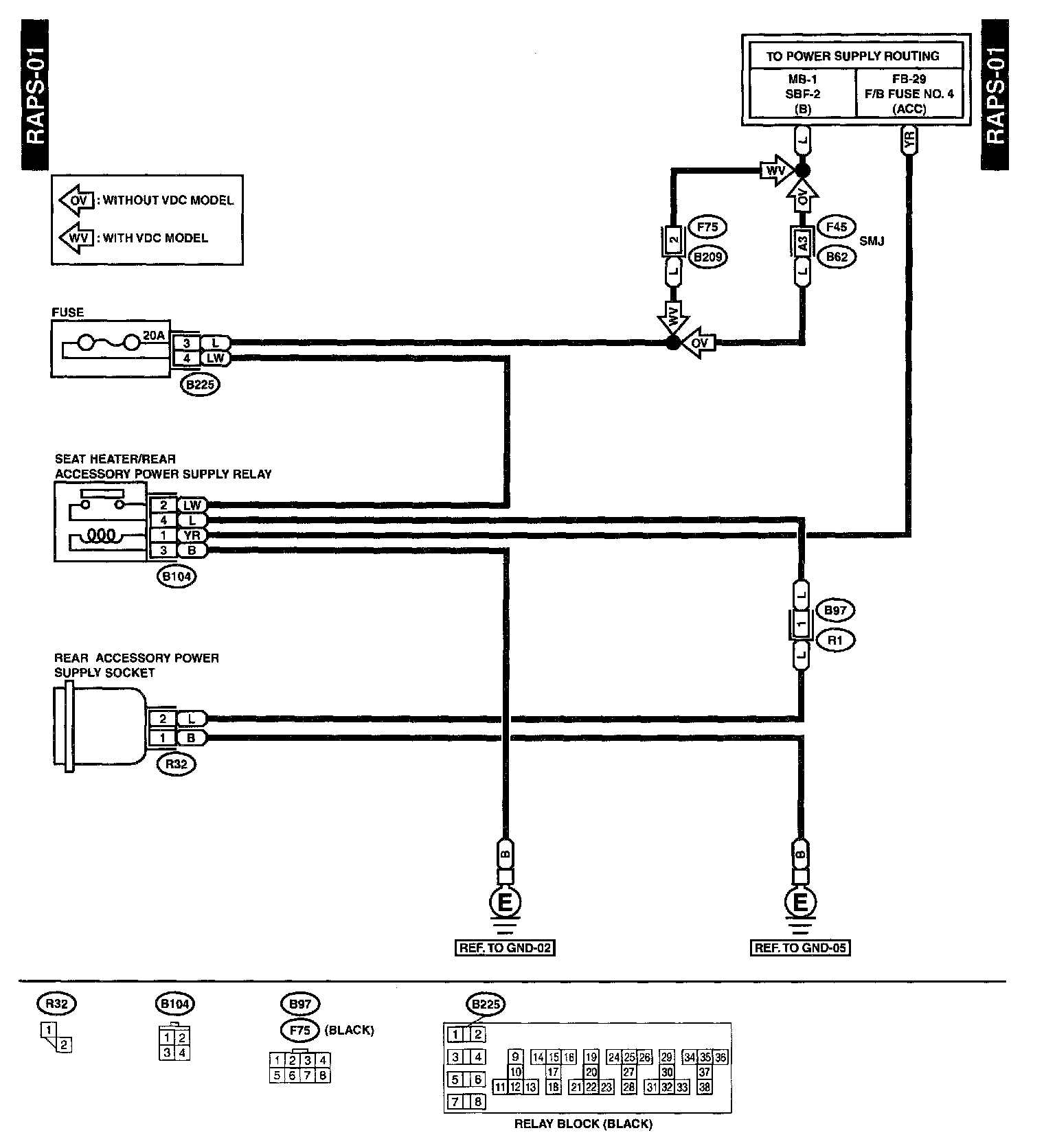

RAPS-01 - Rear Accessory Power Supply System:

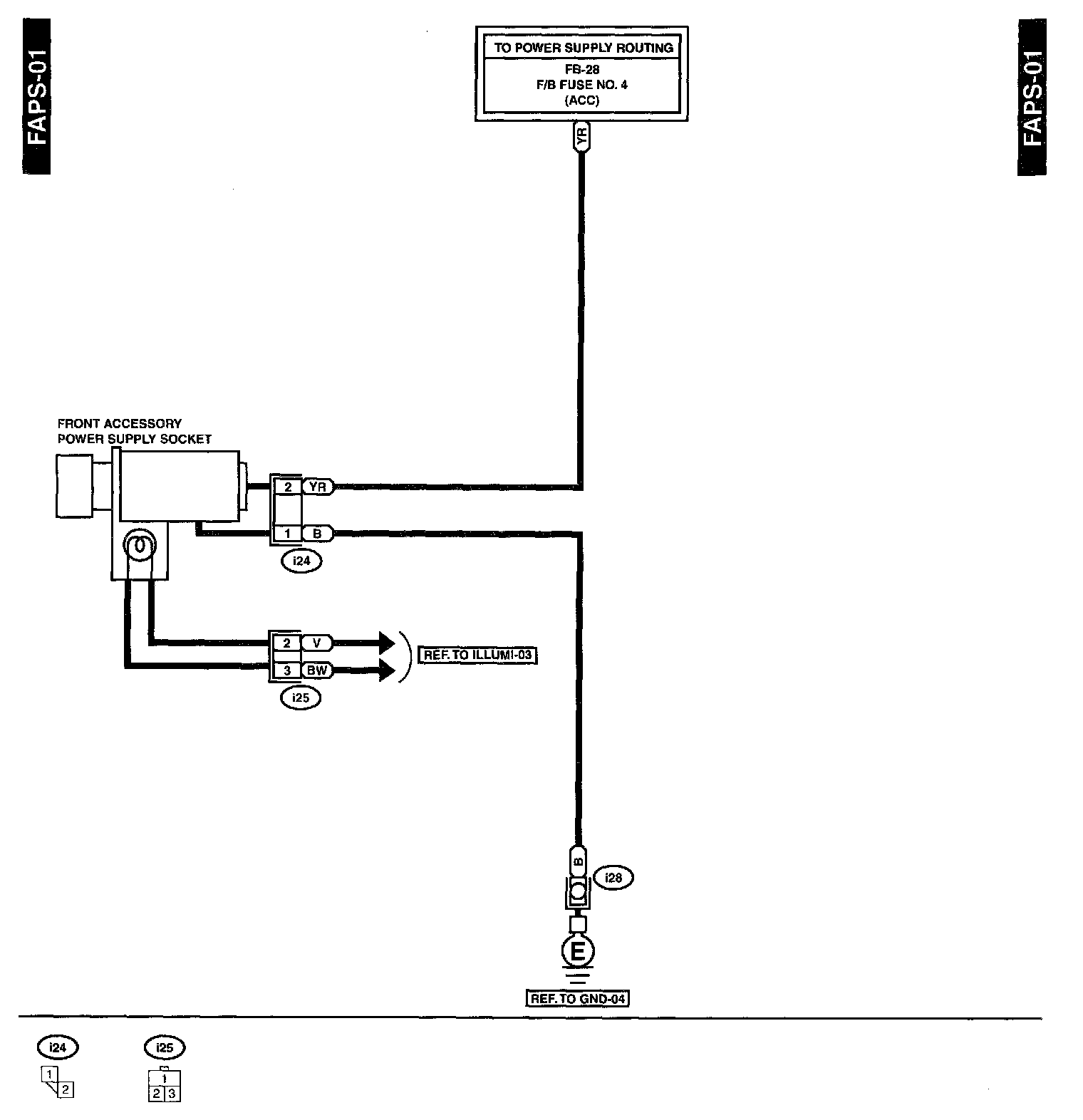

FAPS-01 - Front Accessory Power Supply System:
