Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power Locks >> Wiring Diagrams

Wiring Diagrams

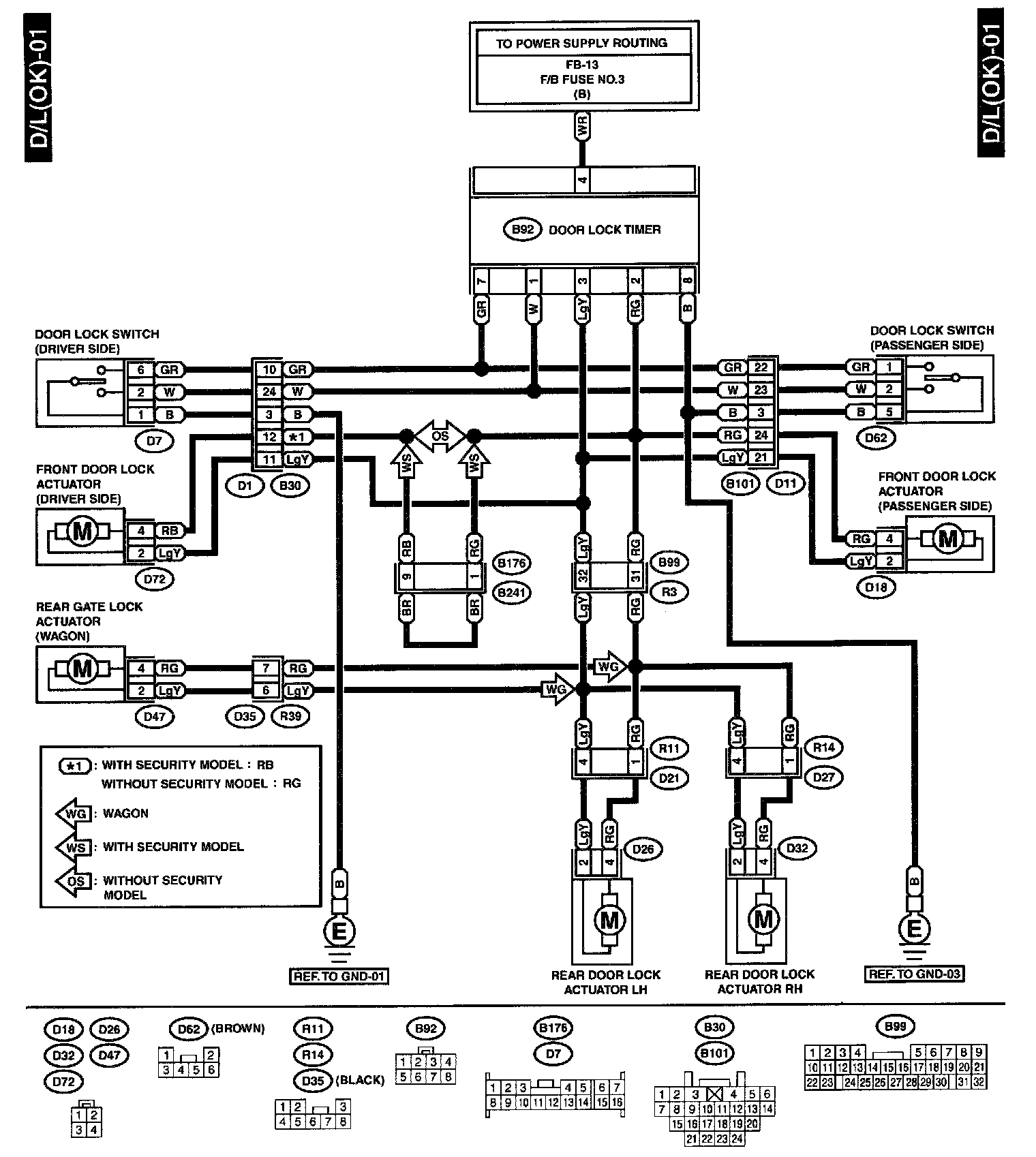

D/L(OK)-01 - Door Lock System (Without Keyless Entry Model):

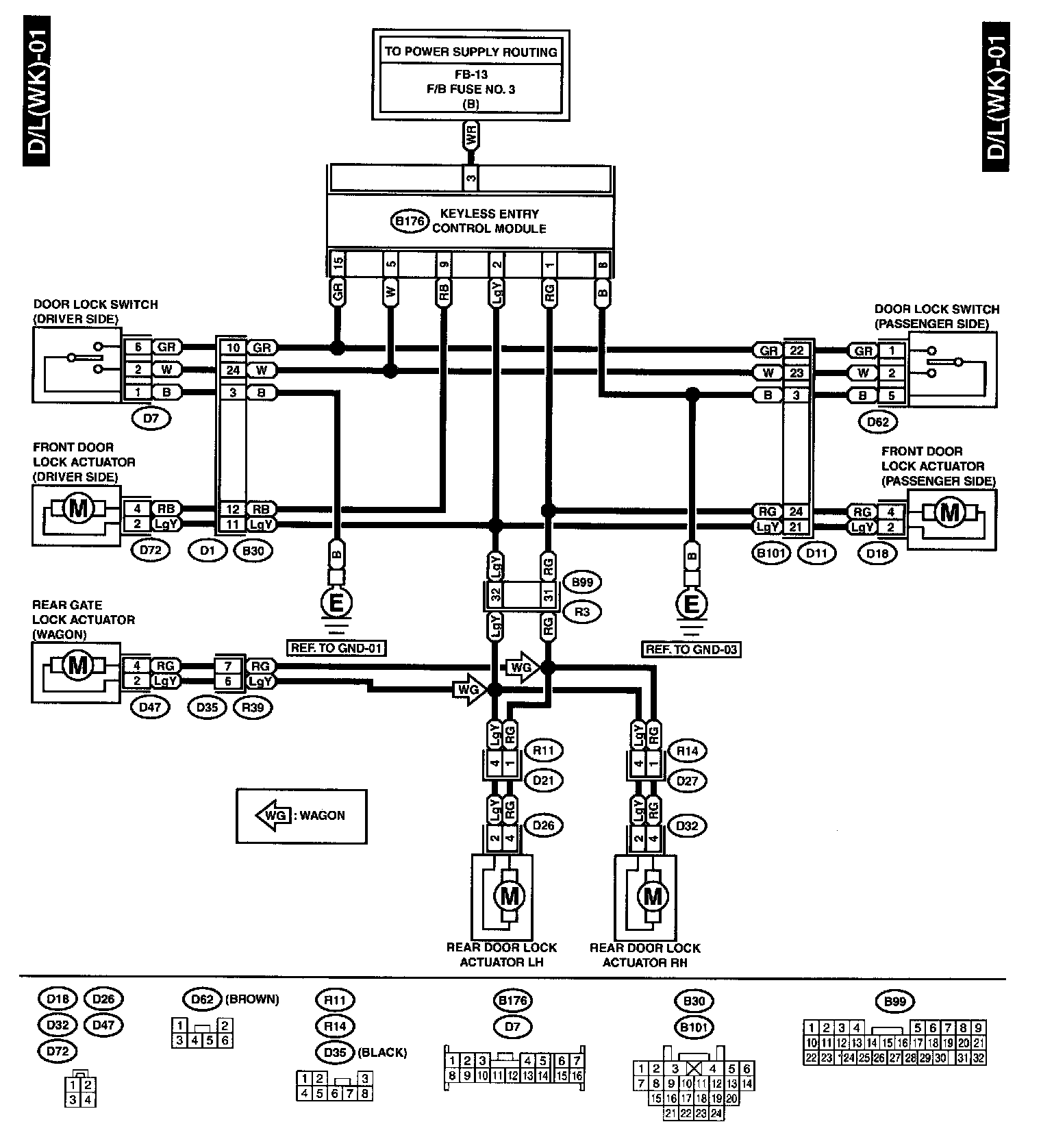

D/L(WK)-01 - Door Lock System (With Keyless Entry Model):
