Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antilock Brakes / Traction Control Systems >> Antilock Brake System (ABS)

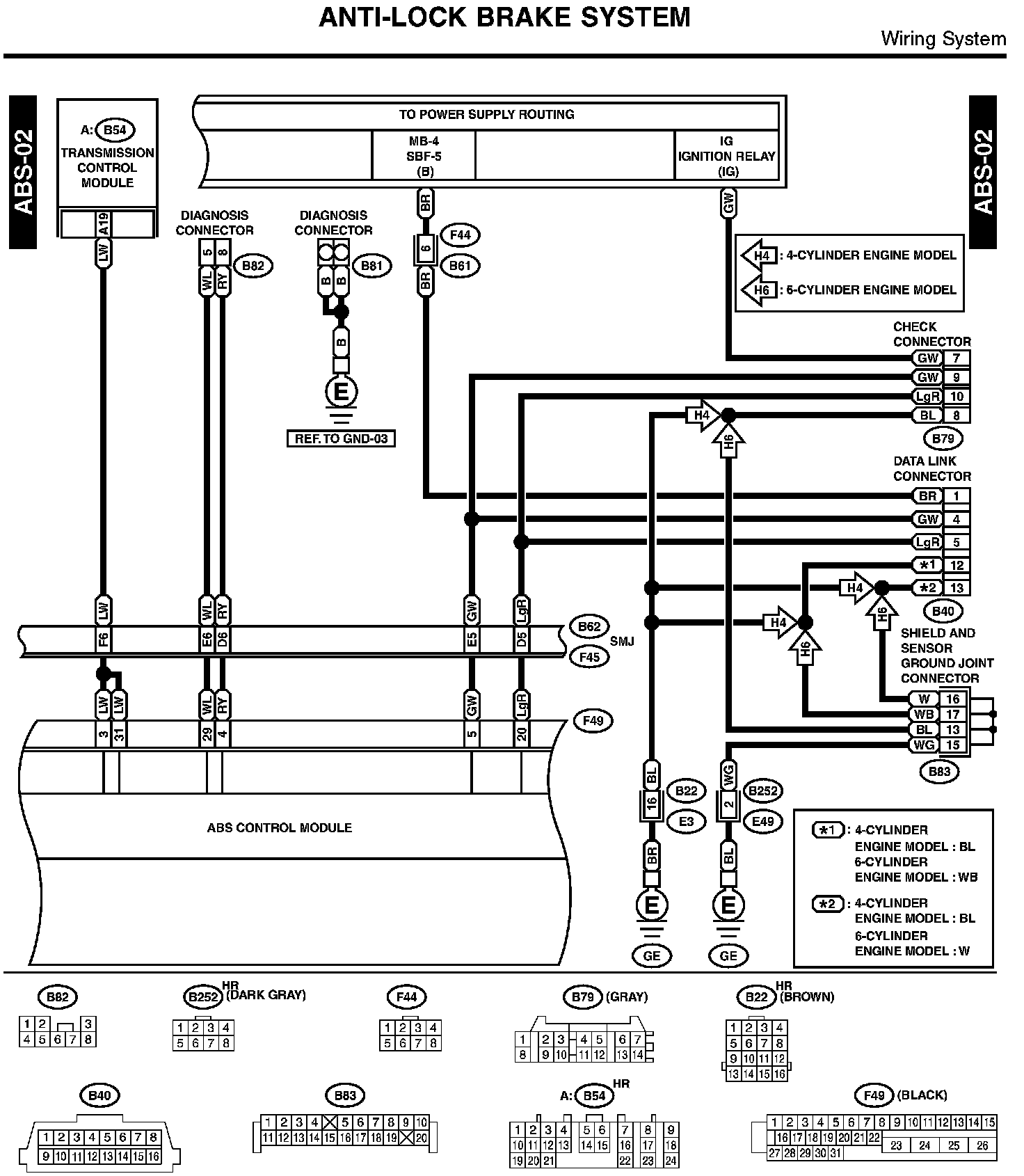

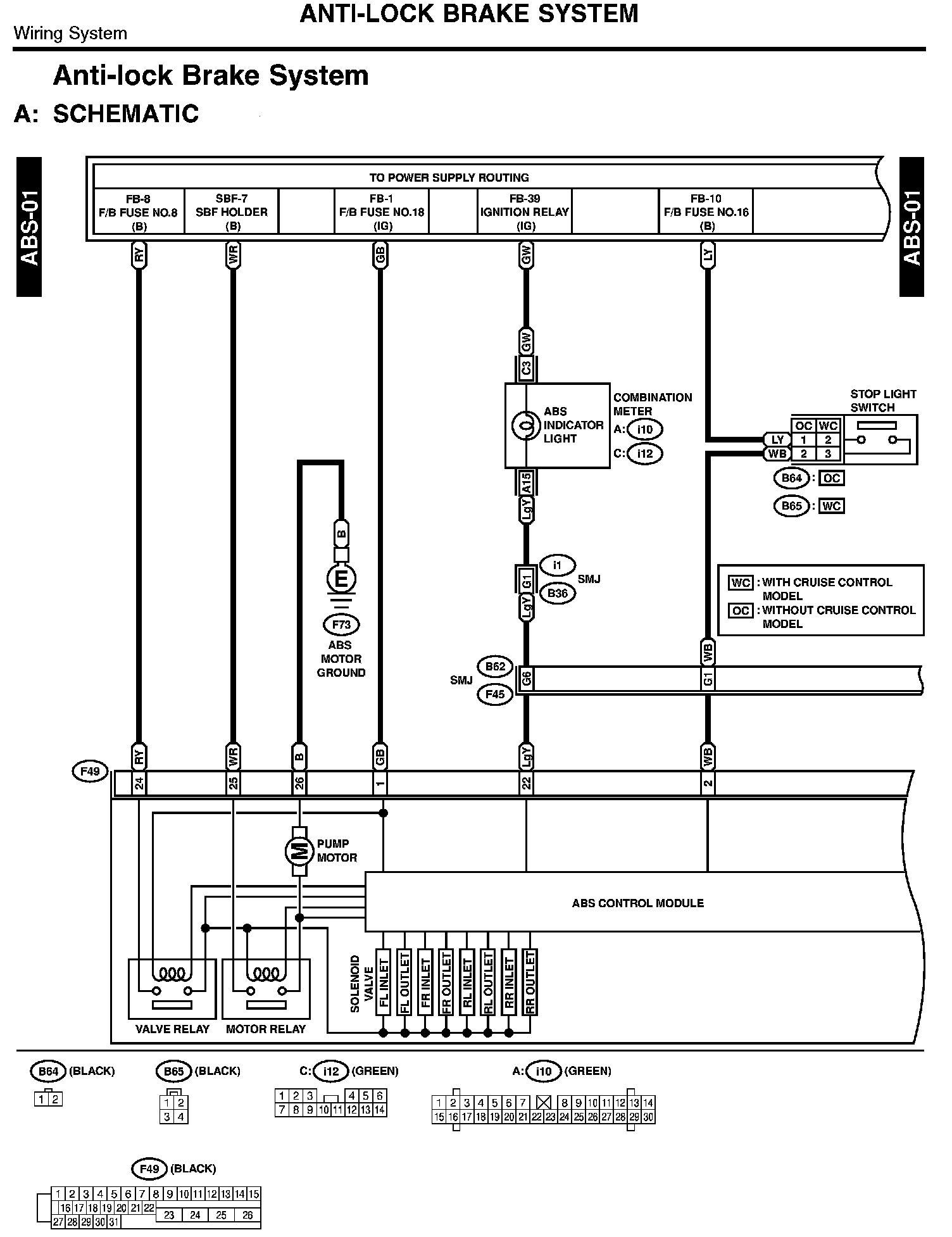

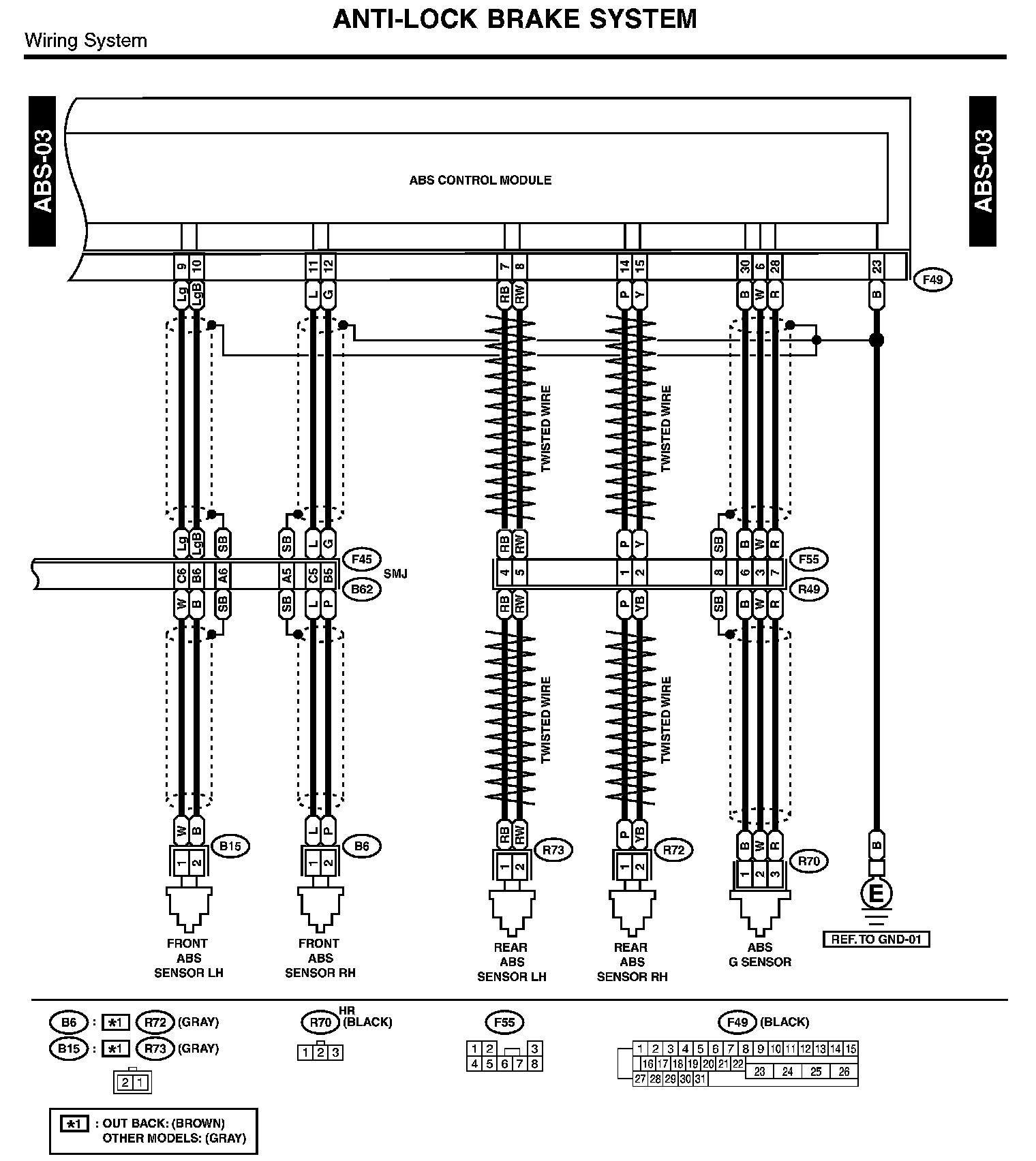

Antilock Brake System (ABS)
