Check Stop Light Switch and Brake Switch

CHECK STOP LIGHT SWITCH AND BRAKE SWITCH

TROUBLE SYMPTOM:
Cruise control cannot be set.

Wiring Diagram:




WIRING DIAGRAM:

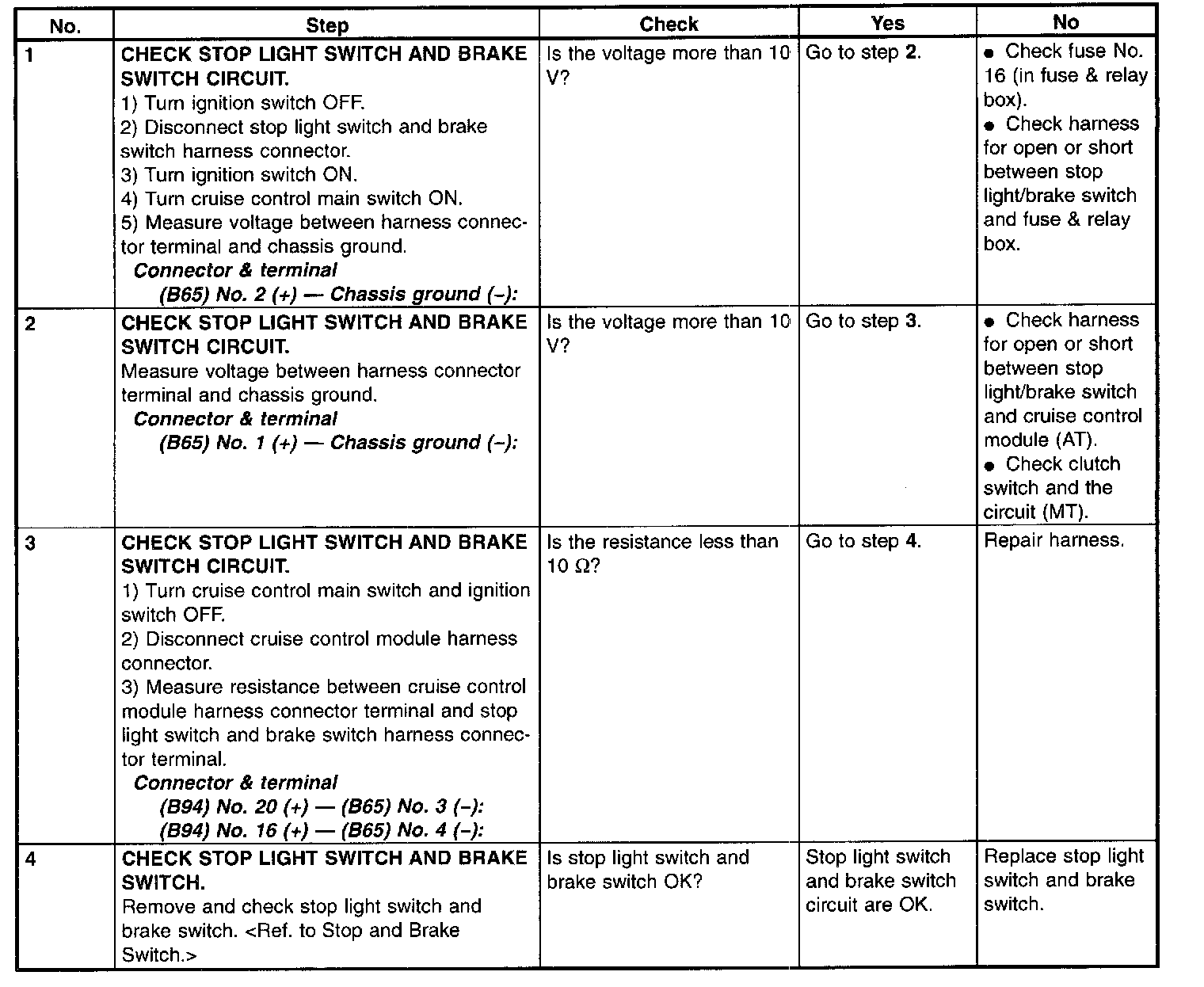

Step 1 - 4:




DIAGNOSTIC TROUBLE CODE PROCEDURE
