Check Clutch Switch (MT)

CHECK CLUTCH SWITCH (MT)

TROUBLE SYMPTOM:
Cruise control cannot be set.

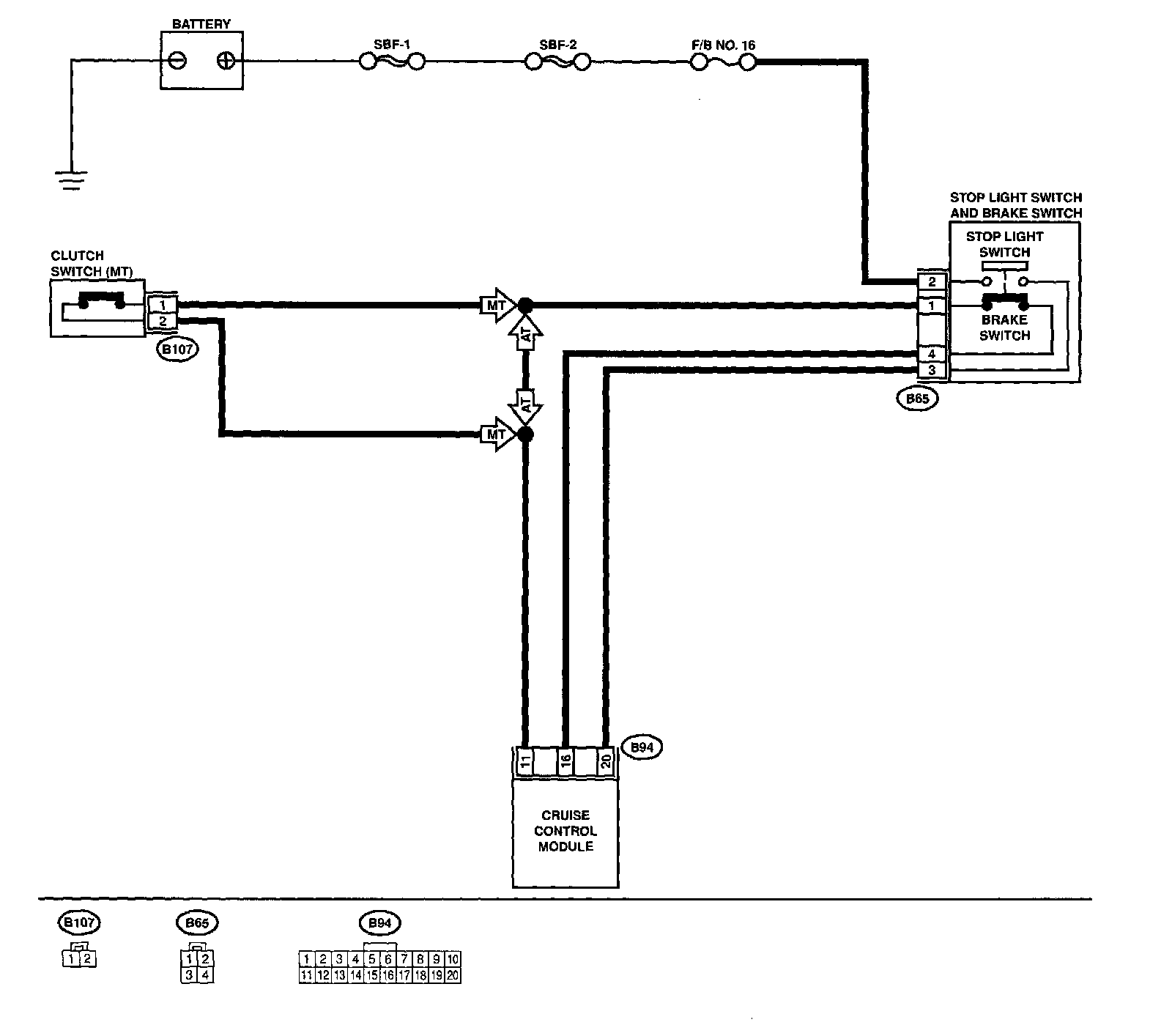

Wiring Diagram:




WIRING DIAGRAM:

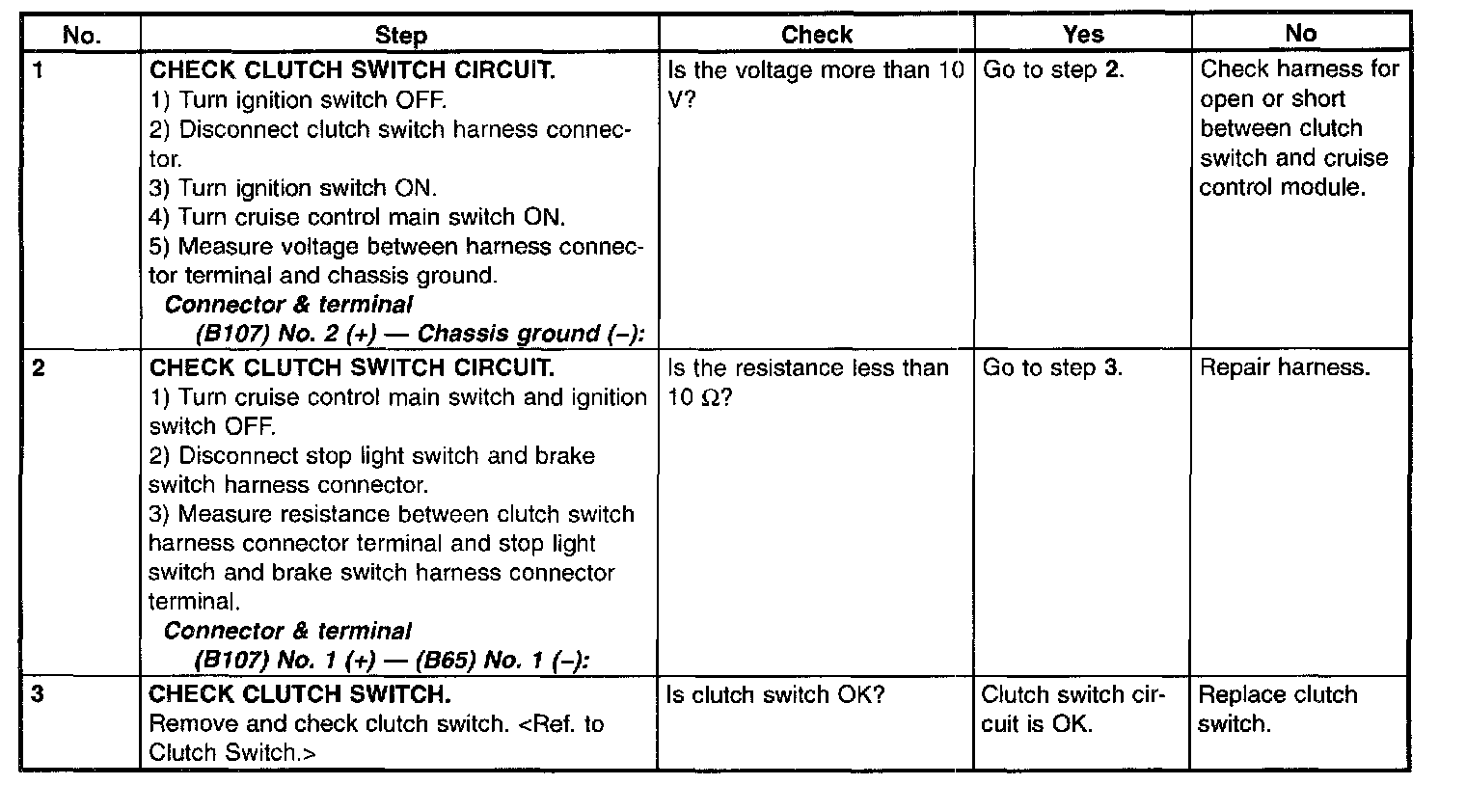

Step 1 - 3:




DIAGNOSTIC TROUBLE CODE PROCEDURE
