Rear

INSPECTION
1. Secure disc rotor by tightening the five wheel nuts.

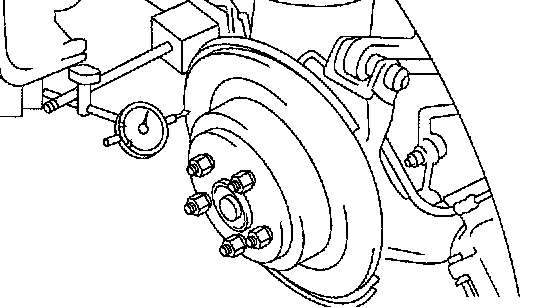

2. Set a dial gauge on the disc rotor. Turn disc rotor to check runout.

CAUTION: Securely fix disc rotor to hub.

NOTE:
^ Make sure that dial gauge is set 5 mm (0.20 inch) inward of rotor outer perimeter.
^ If disc rotor runout is above standard value, inspect play of hub bearing axial direction and runout of axle hub.
Disc rotor runout limit: 0.075 mm (0.0030 inch)





3. Measure disc rotor thickness.

NOTE: Make sure that micrometer is set 5 mm (0.20 inch) inward of rotor outer perimeter.

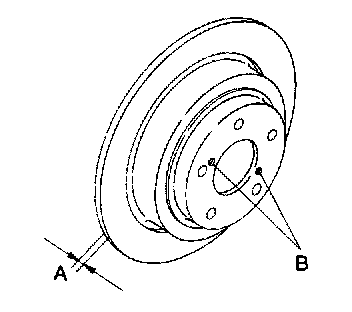

Disc rotor thickness: A
Standard value 10 mm (0.39 inch)
Service limit 8.5 mm (0.335 inch)
