INSPECTION
1. Secure disc rotor by tightening the five wheel nuts.

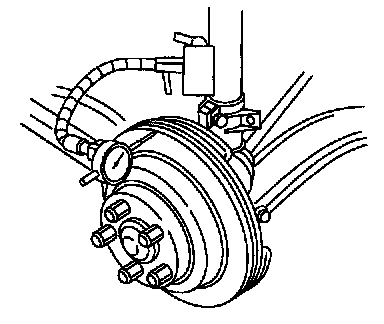

2. Set a dial gauge on the disc rotor. Turn disc rotor to check runout.

NOTE:
^ Make sure that dial gauge is set 5 mm (0.20 inch) inward of rotor outer perimeter.
^ If disc rotor runout is above standard value, inspect play of hub bearing axial direction and runout of axle hub. If bearing and hub are normal, replace disc rotor.

Disc rotor runout limit: 0.075 mm (0.0030 inch)

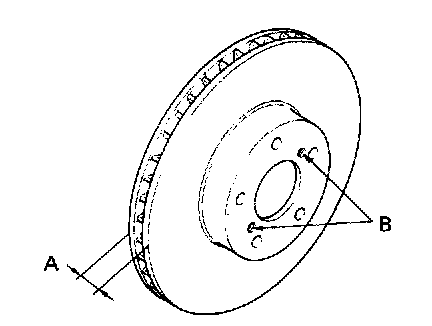

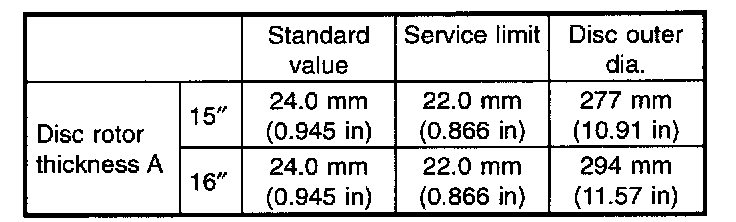

3. Measure disc rotor thickness. If thickness of disc rotor is outside the standard value, replace disc rotor.





NOTE: Make sure that micrometer is set 5 mm (0.20 inch) inward, of rotor outer perimeter
