Pinout Values and Diagnostic Parameters

Control Module I/0 Signal





1 of 2





2 of 2

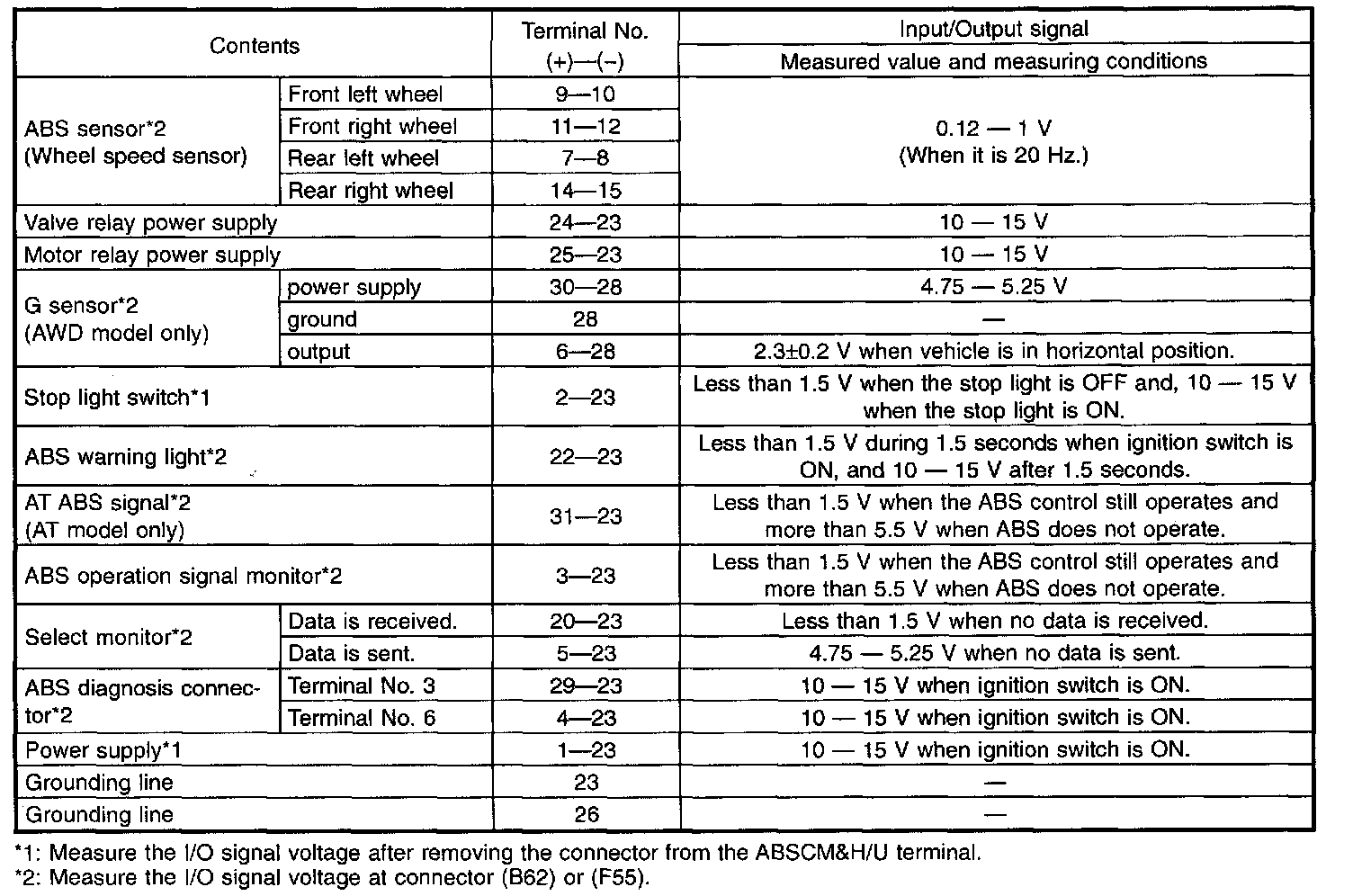

ELECTRICAL SPECIFICATION

NOTE:

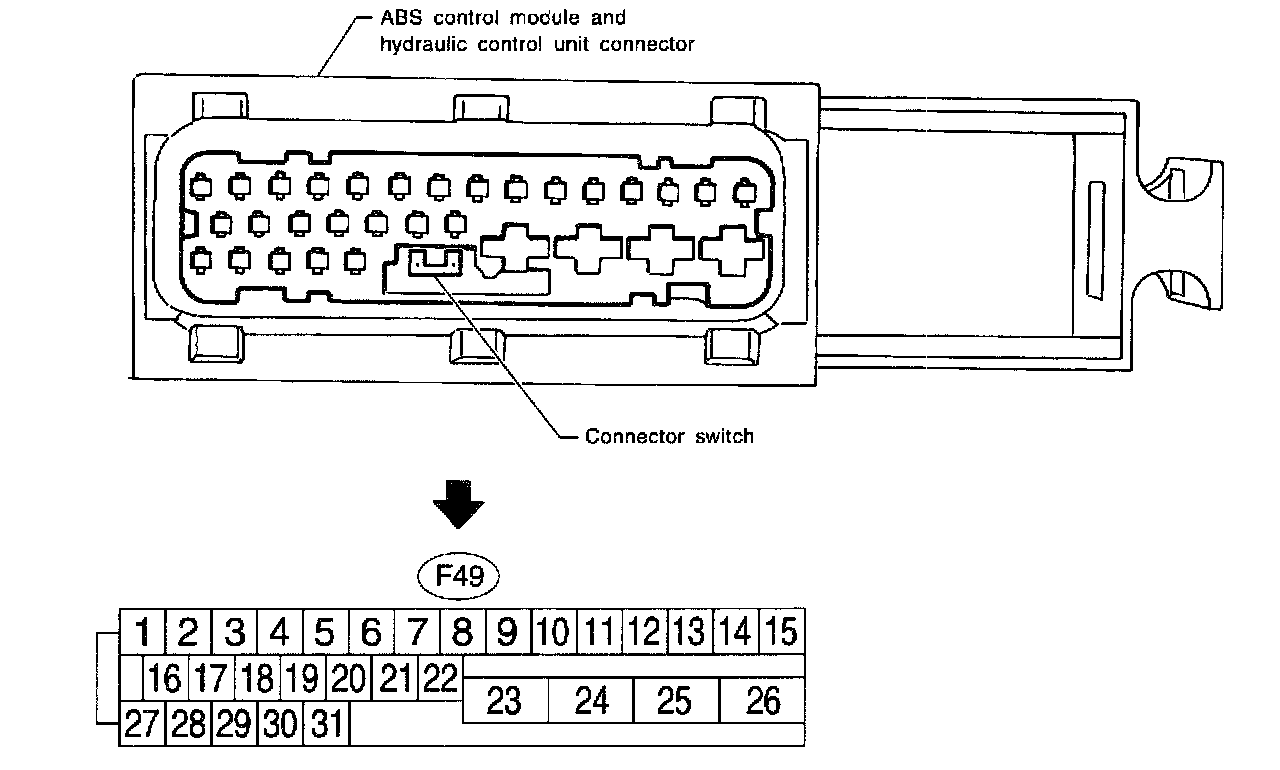

^ The terminal numbers in the ABS control module and hydraulic control unit connector are as shown in the figure.
^ When the connector is removed from the ABSCM & H/U, the connector switch closes the circuit between terminal No. 22 and No. 23. The ABS warning light illuminates.
