Diagnostic Chart For On-Board Diagnosis System

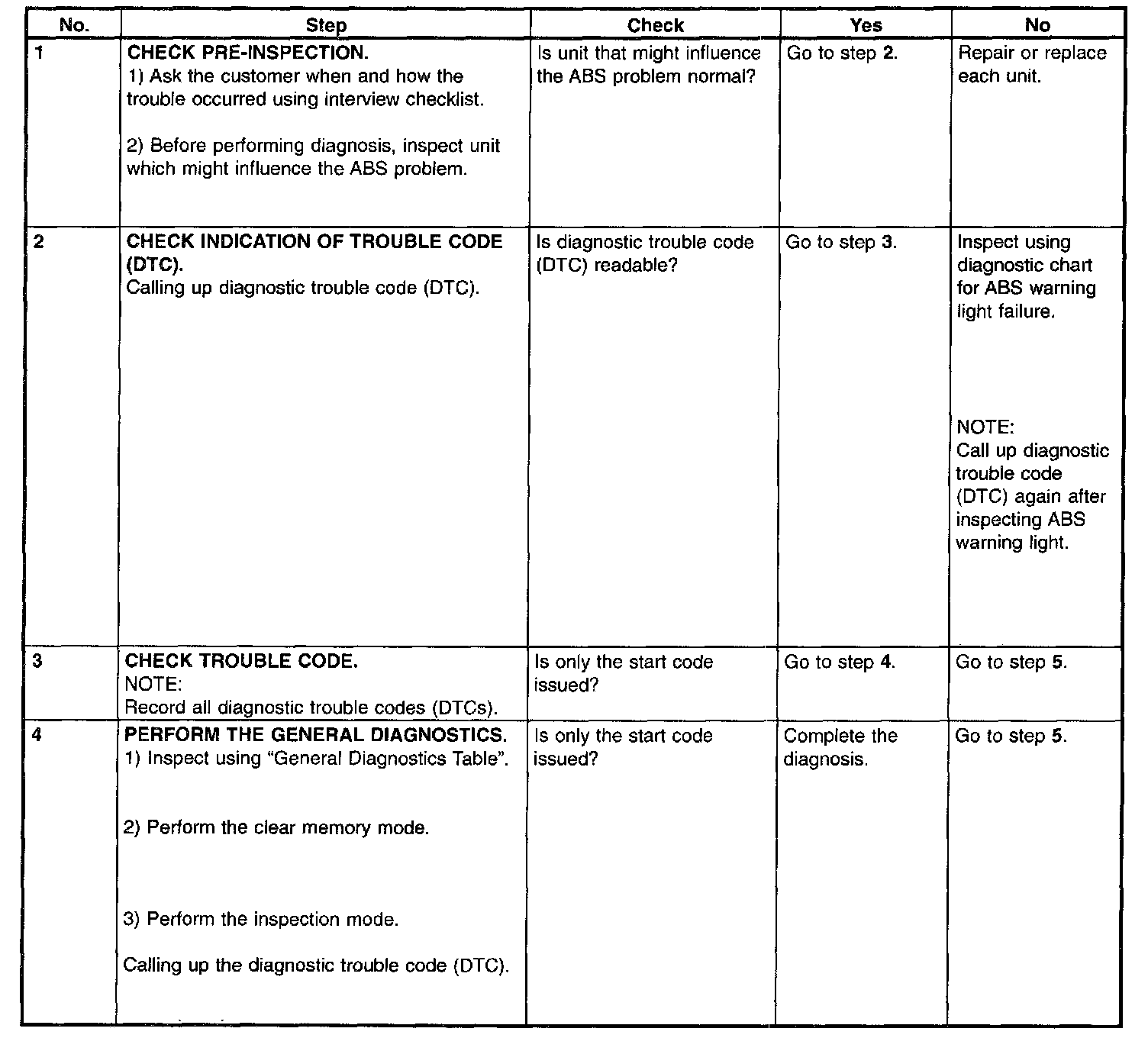

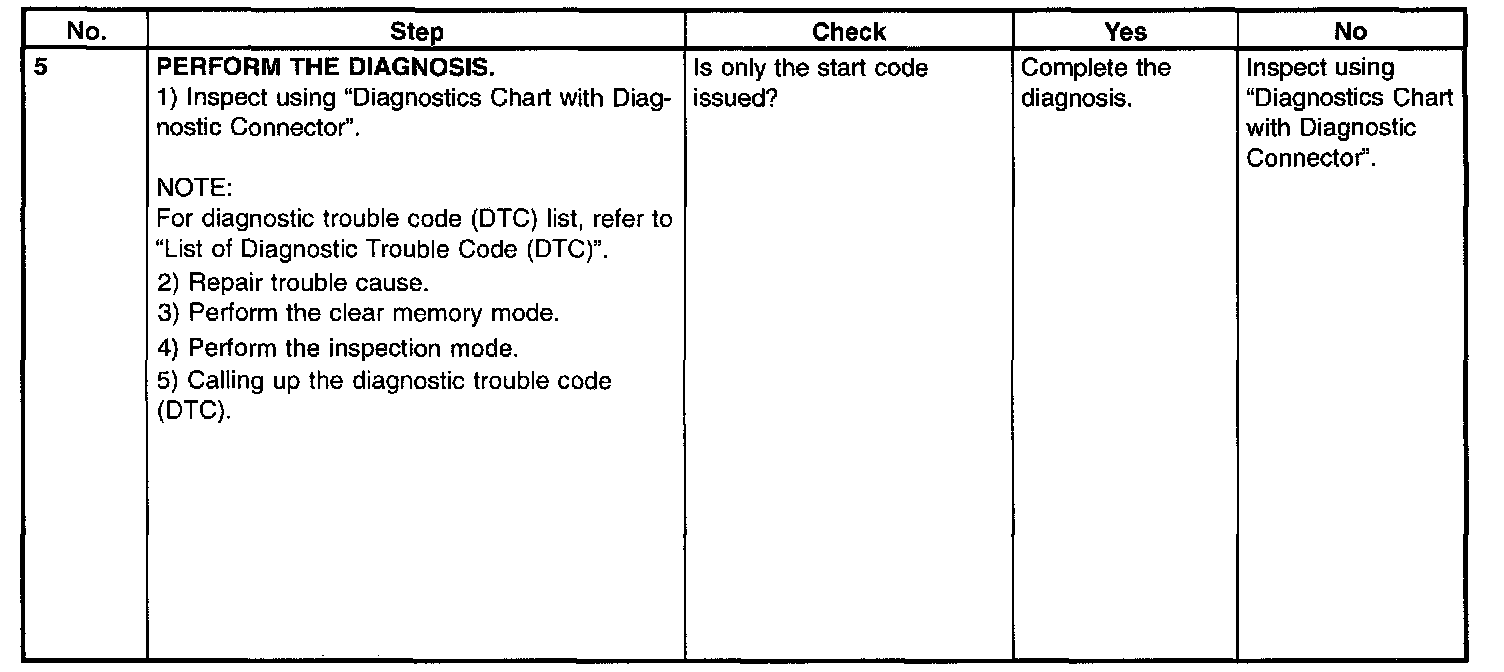

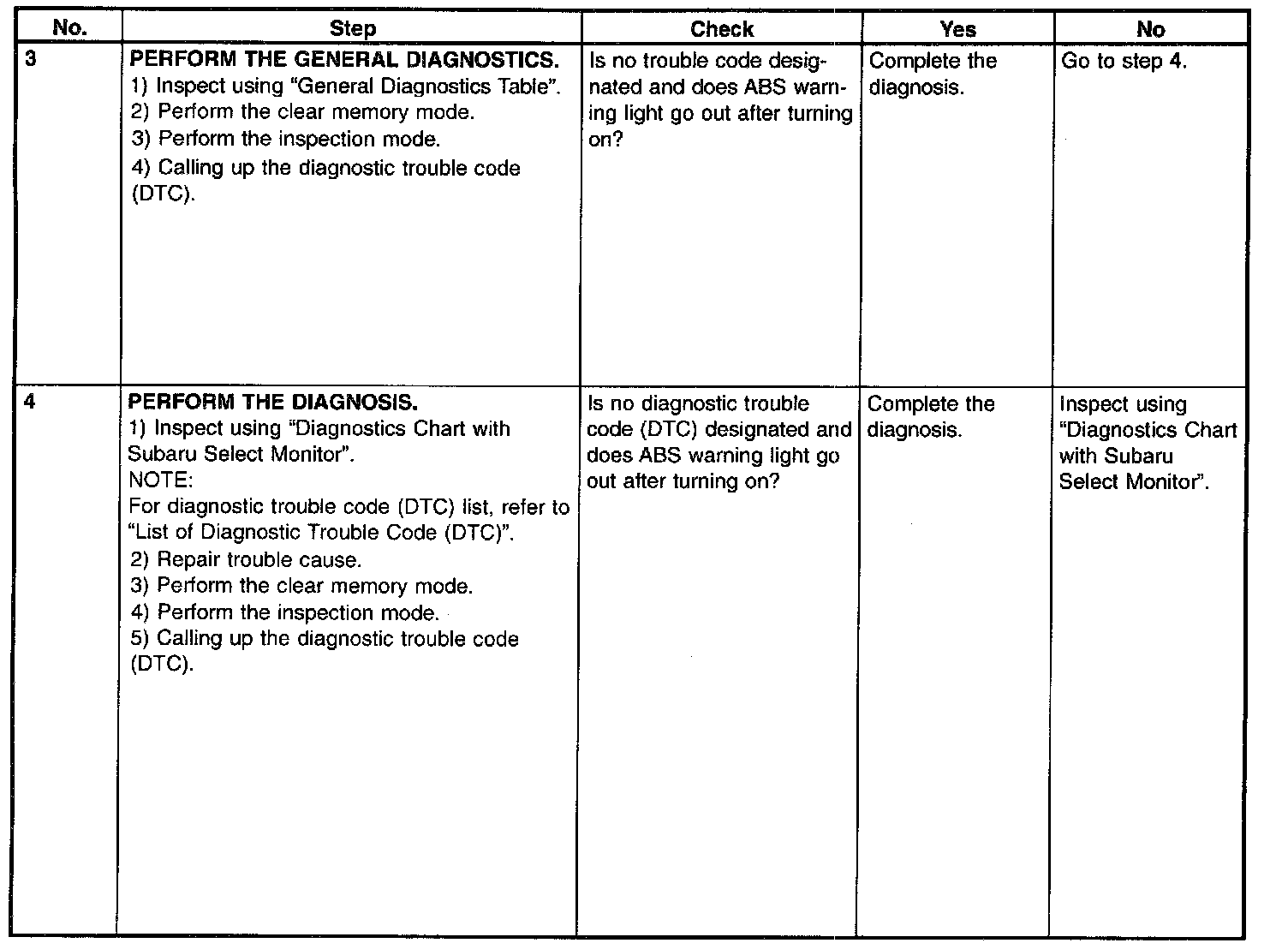

PROCEDURE1. WITHOUT SUBARU SELECT MONITOR
1 of 2
2 of 2
CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM & H/U connector during removal and installation.
NOTE:
^ To check harness for broken wires or short circuits, shake it while holding it or the connector.
^ When ABS warning light illuminates, read and record diagnostic trouble code (DTC) indicated by ABS warning light.

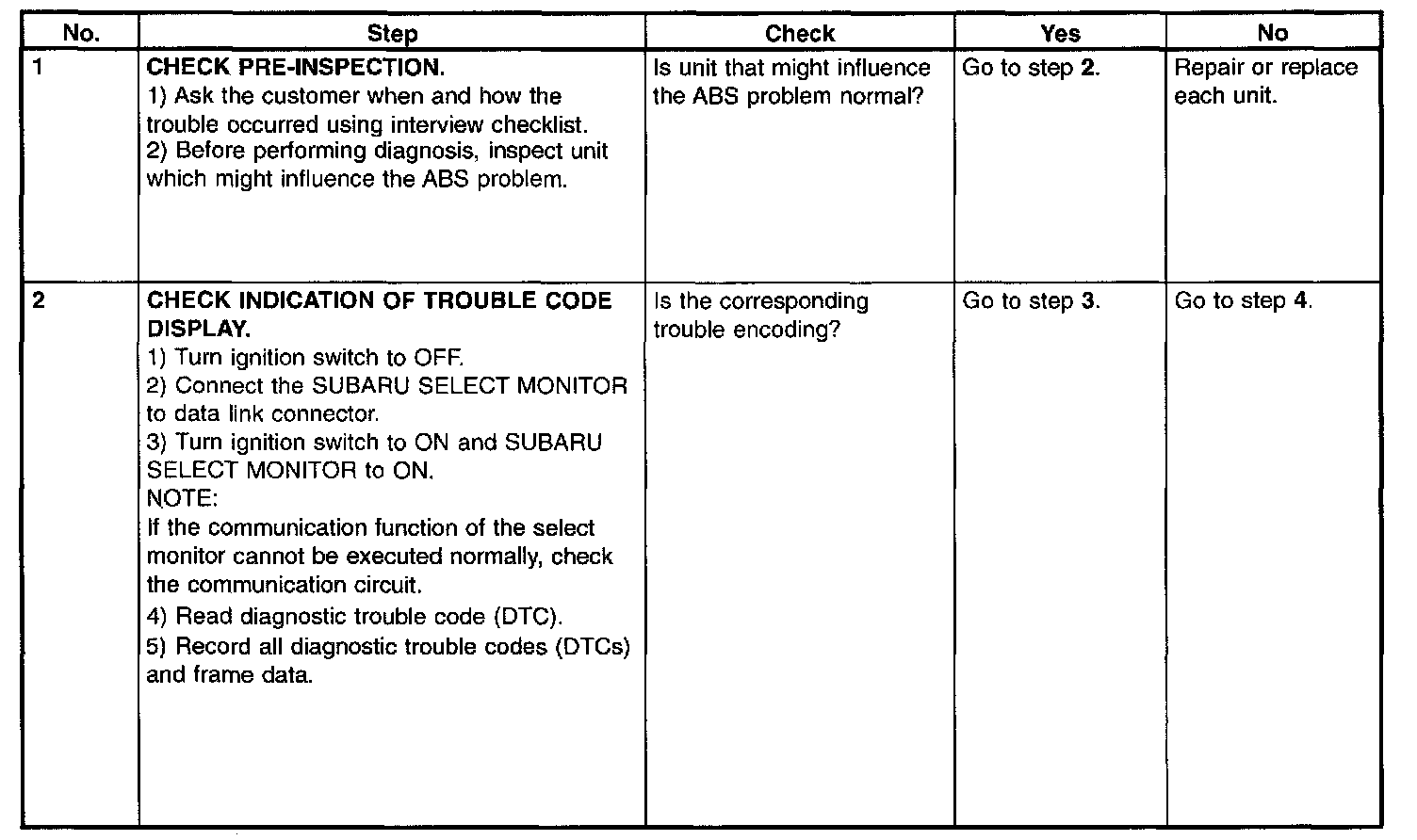

2. WITH SUBARU SELECT MONITOR
1 of 2
2 of 2
CAUTION: Remove foreign matter (dust, water, etc.) from the ABSCM & H/U connector during removal and installation.
NOTE:
^ To check harness for broken wires or short circuits, shake it while holding it or the connector.
^ Check list for interview.
2. Check List for Interview
CHECK

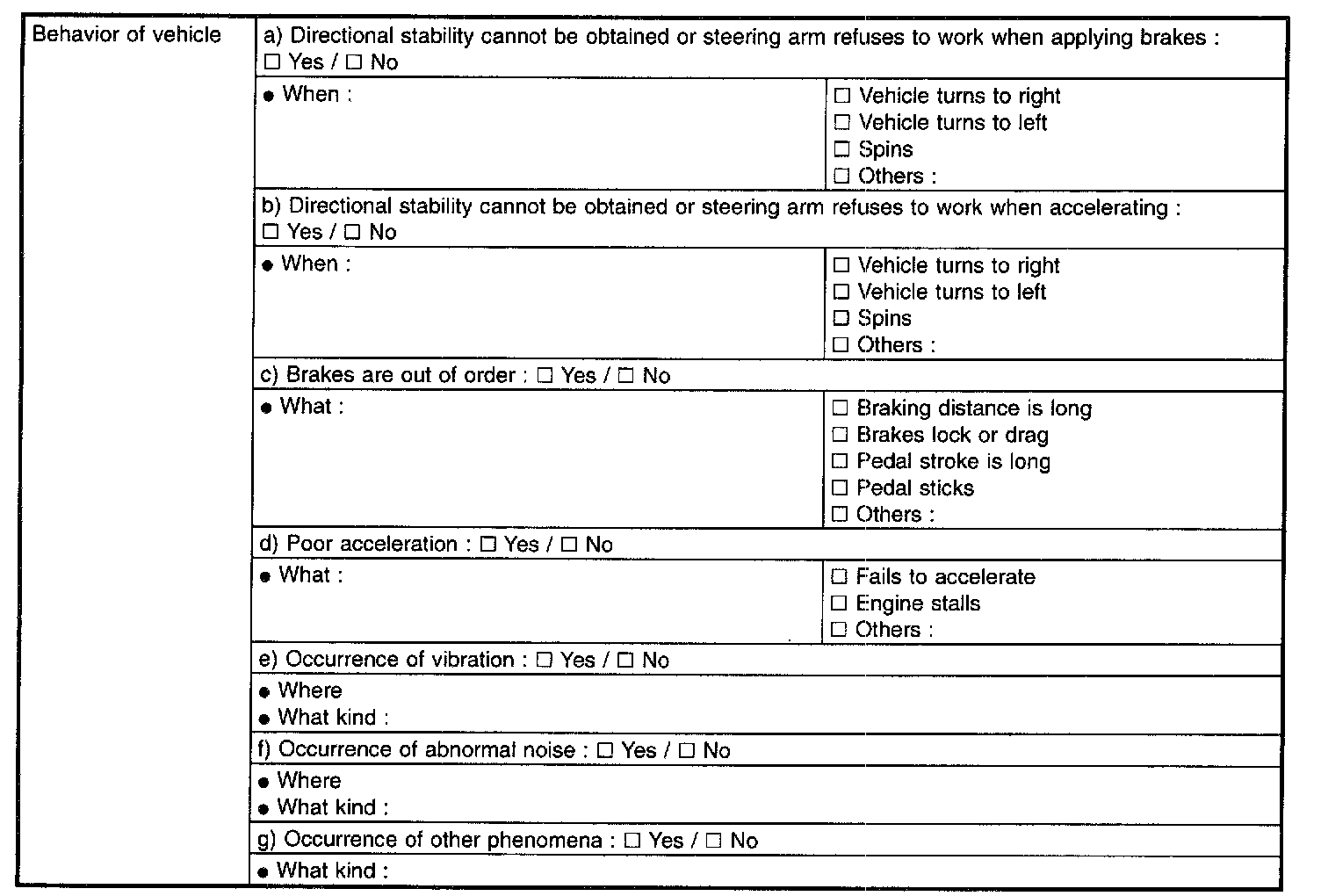

Check the following items about the vehicle's state.

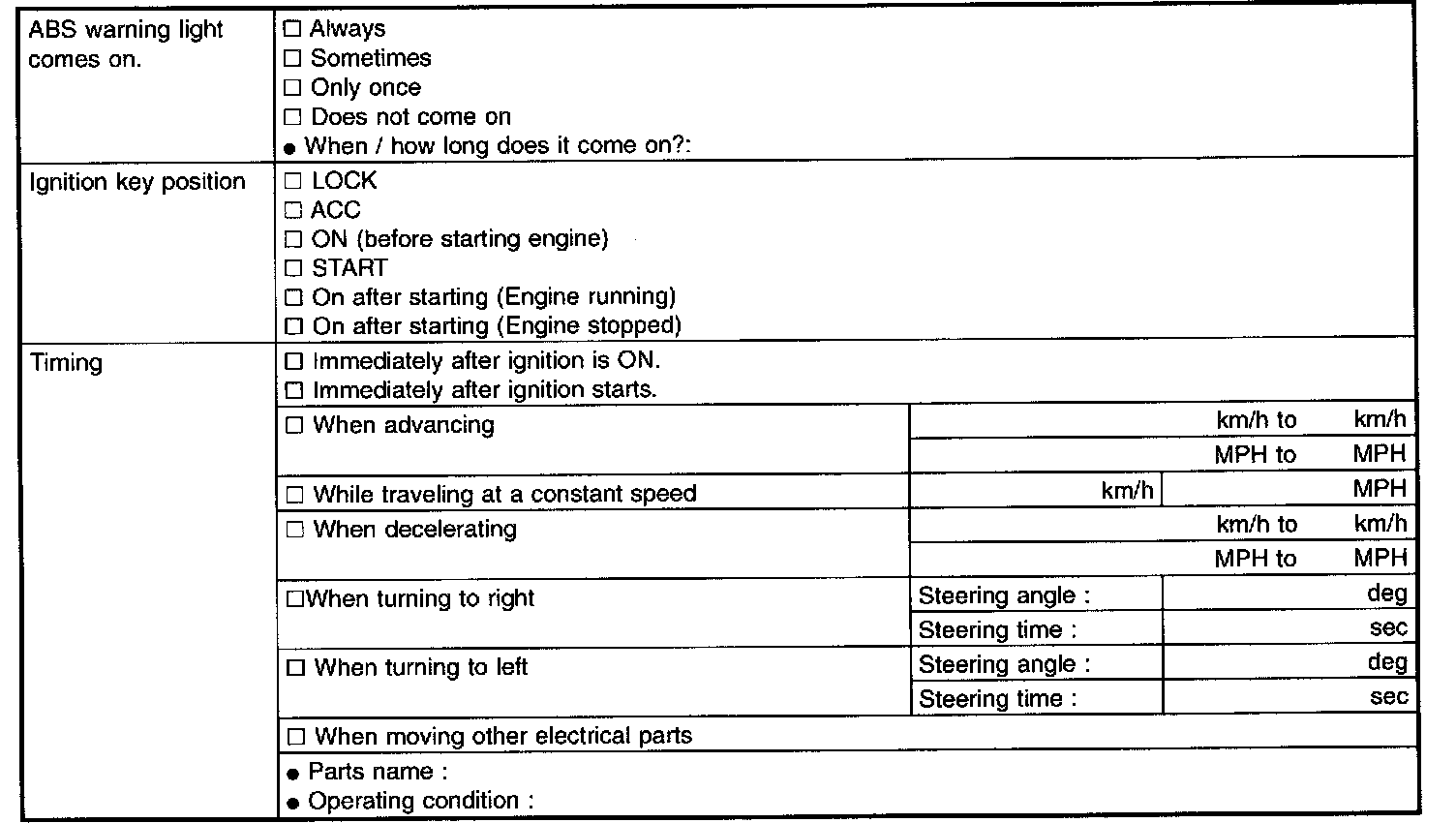

1. STATE OF ABS WARNING LIGHT

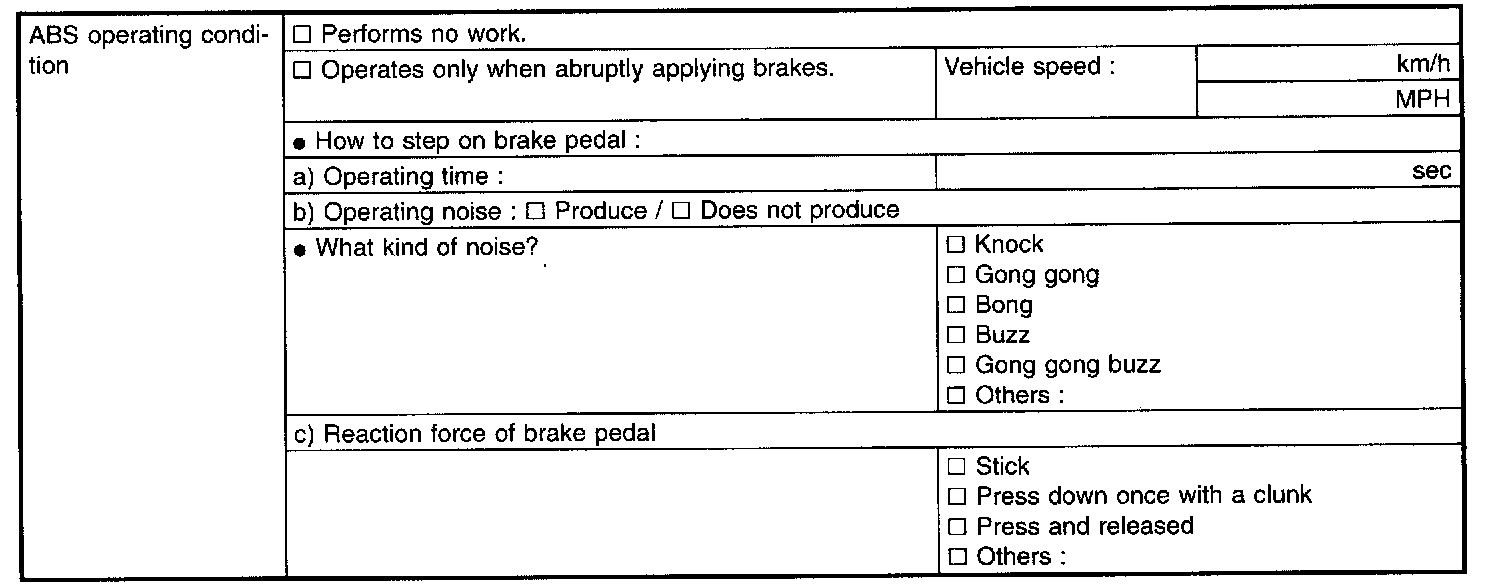

2. SYMPTOMS
1 of 2
2 of 2

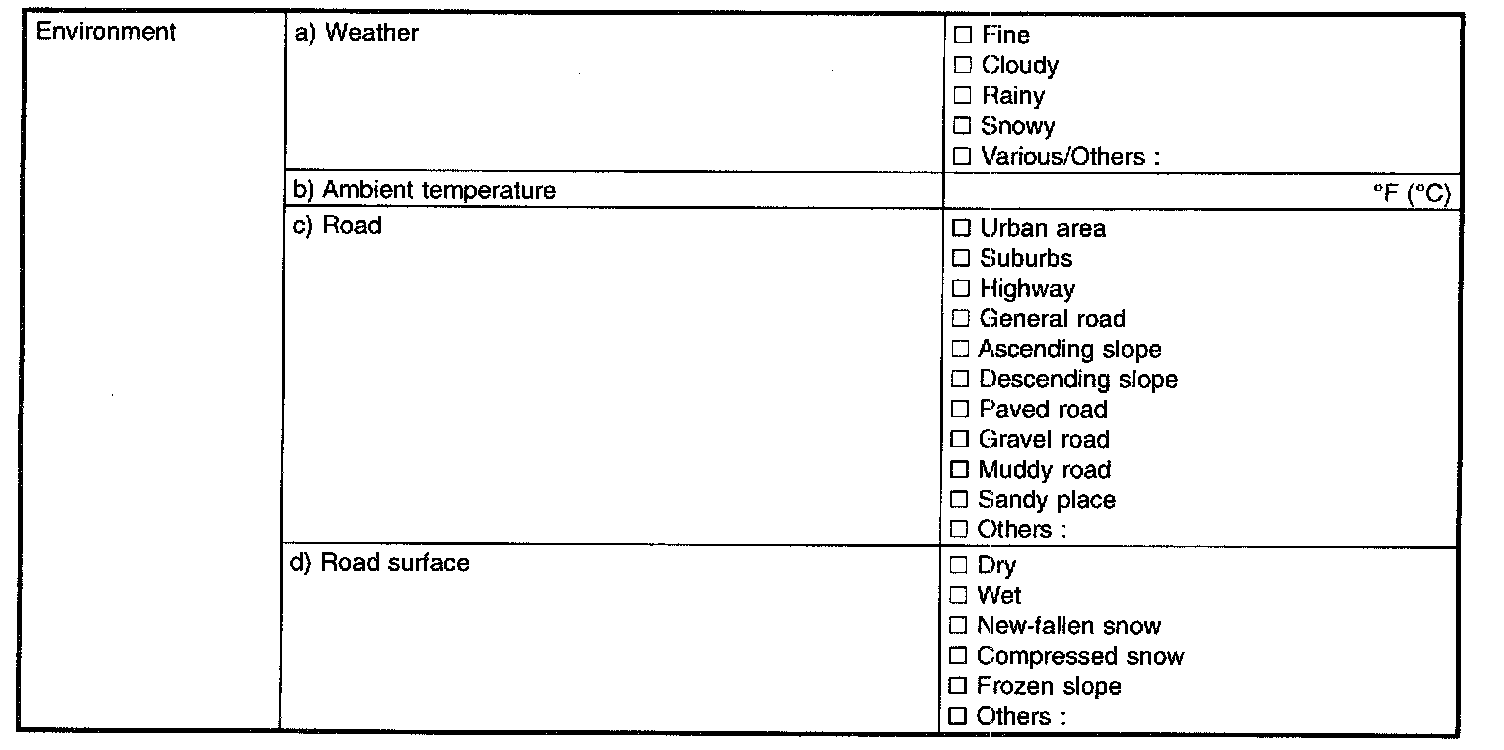

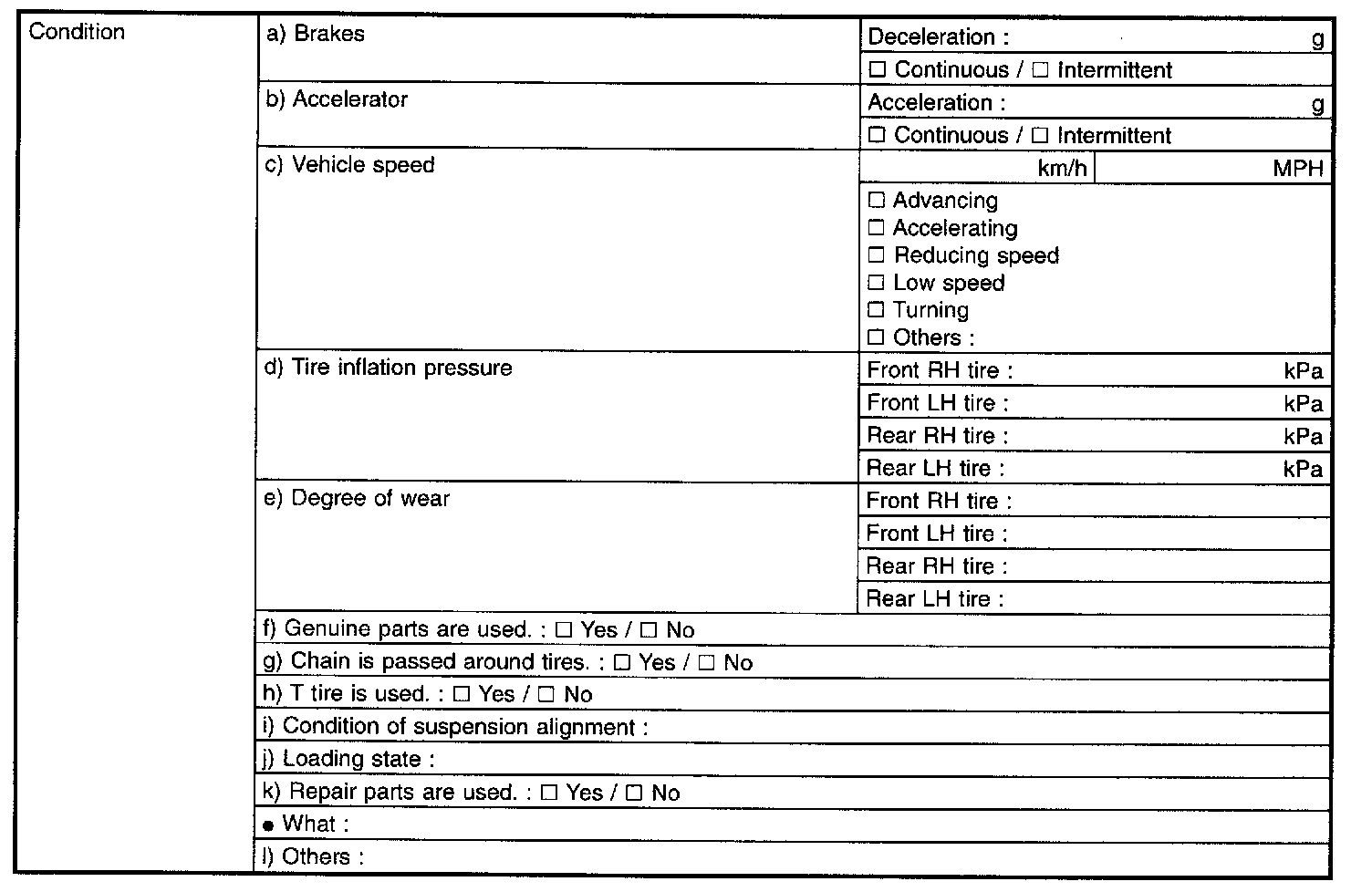

3. CONDITIONS UNDER WHICH TROUBLE OCCURS
1 of 2
2 of 2
