VDC Off Indicator Light Does Not Go Off

VDC OFF INDICATOR LIGHT DOES NOT GO OFF.

DIAGNOSIS:
- VDC OFF indicator light circuit is open or shorted.
- VDC OFF switch is shorted.

TROUBLE SYMPTOM:
- When starting the engine and while VDC OFF indicator light is kept ON.

NOTE: When pushing the VDC OFF switch for 10 seconds or more while revving the engine, the VDC OFF indicator light goes off and operations cannot be continued. Turn ignition switch from OFF to ON again to recover the previous condition.

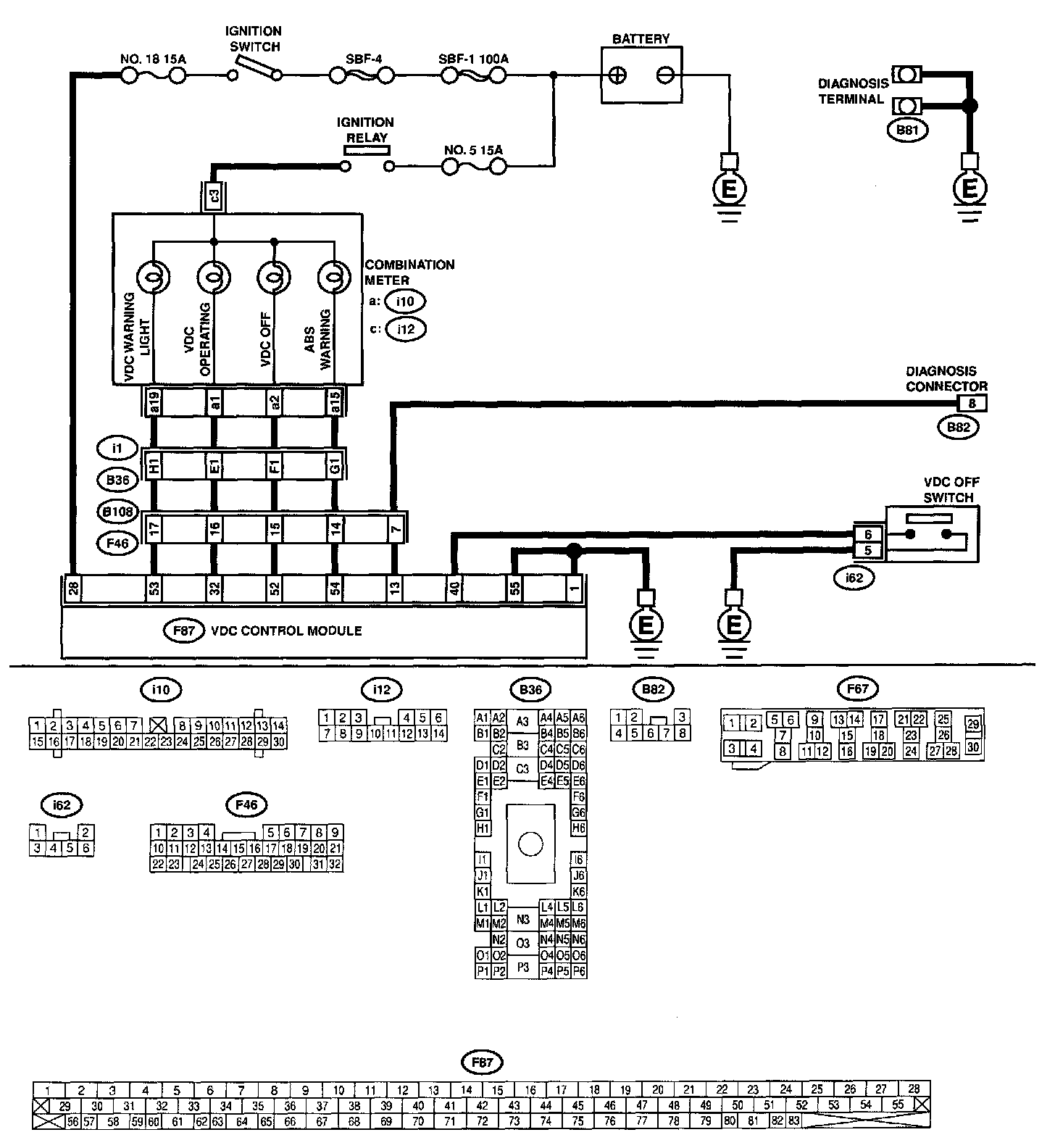

WIRING DIAGRAM:

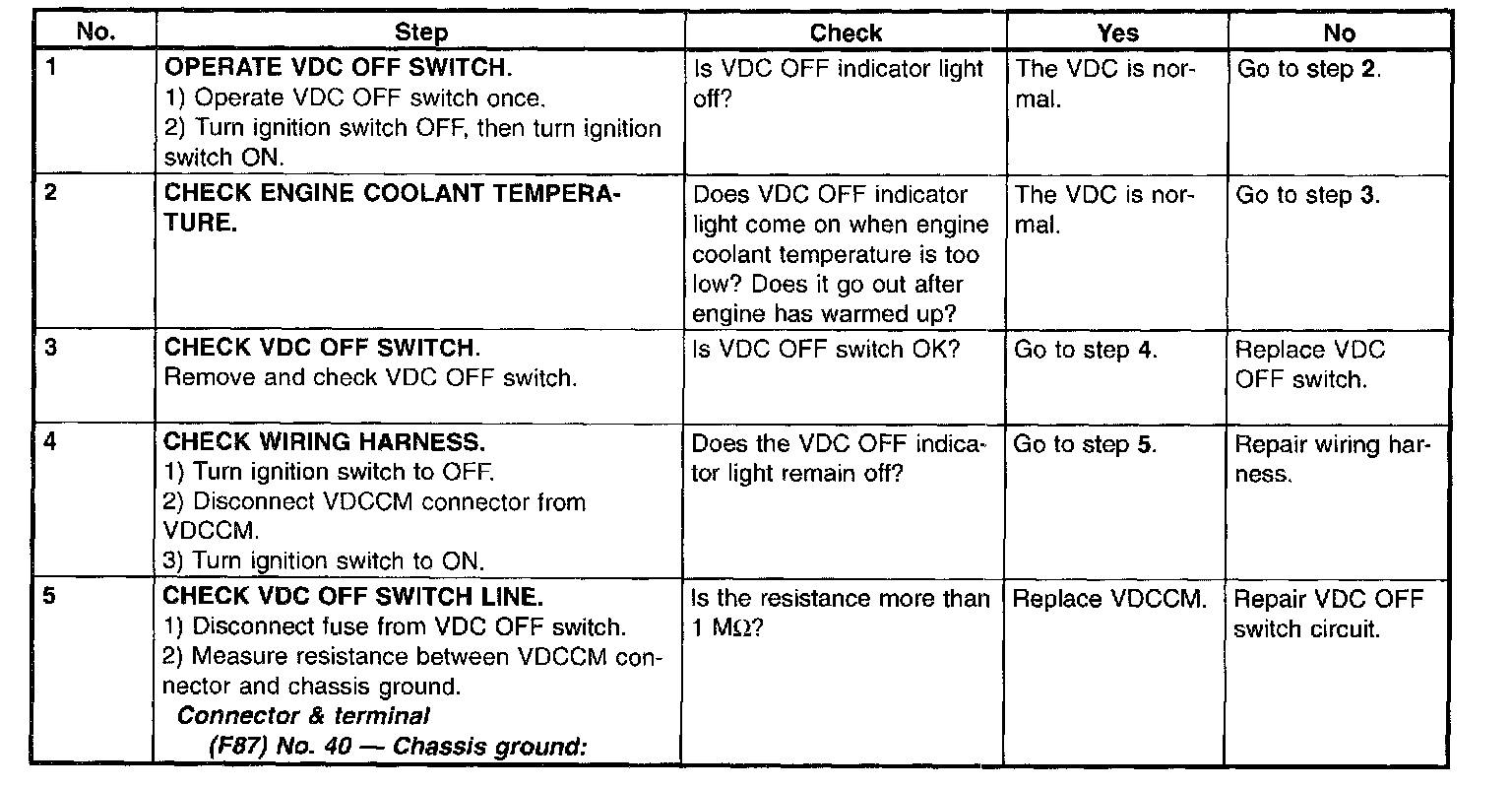

PROCEDURE:
