VDCCM Connector Cover

REMOVE
1. Turn ignition switch OFF.
2. Disconnect connector from VDCCM.
3. Remove band.
4. Remove cable clamp cover.





5. Remove screws securing connector cover.

CAUTION: Do not allow harness to catch on adjacent parts during installation.

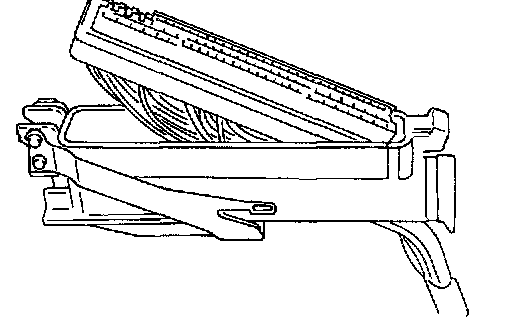

6. Remove connector cover.

INSTALLATION





Install in the reverse order of removal.

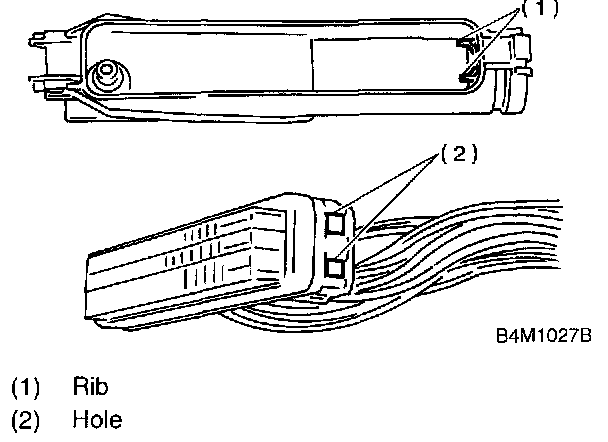

NOTE: Align connector cover rib with connector hole before installation.
