Diagnostic Strategies
1. Basic Diagnostic ProcedurePROCEDURE
CAUTION: Remove foreign matter (dust, water, etc.) from the VDCCM connector during removal and installation.
NOTE:
^ To check harness for broken wires or short circuits, shake it while holding it or the connector.
^ When ABS and/or VDC warning light illuminates, read and record trouble code indicated by ABS warning light.

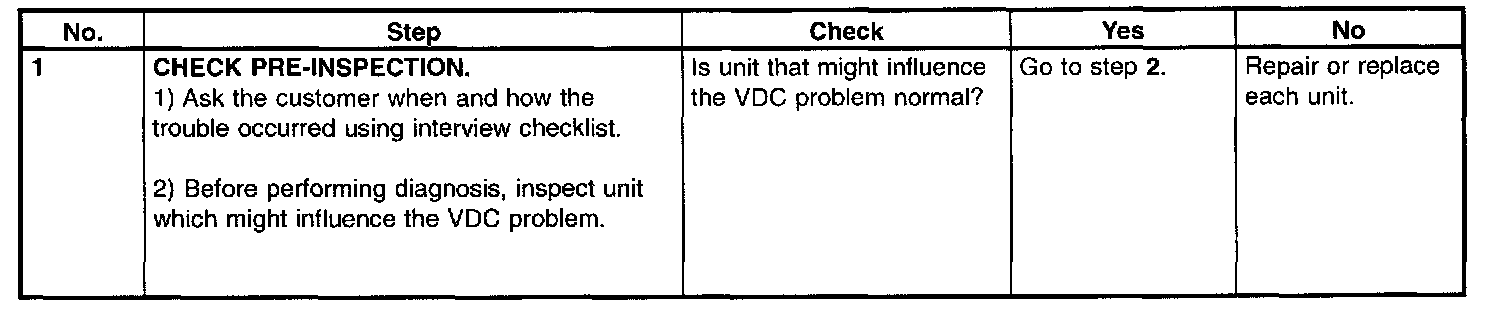

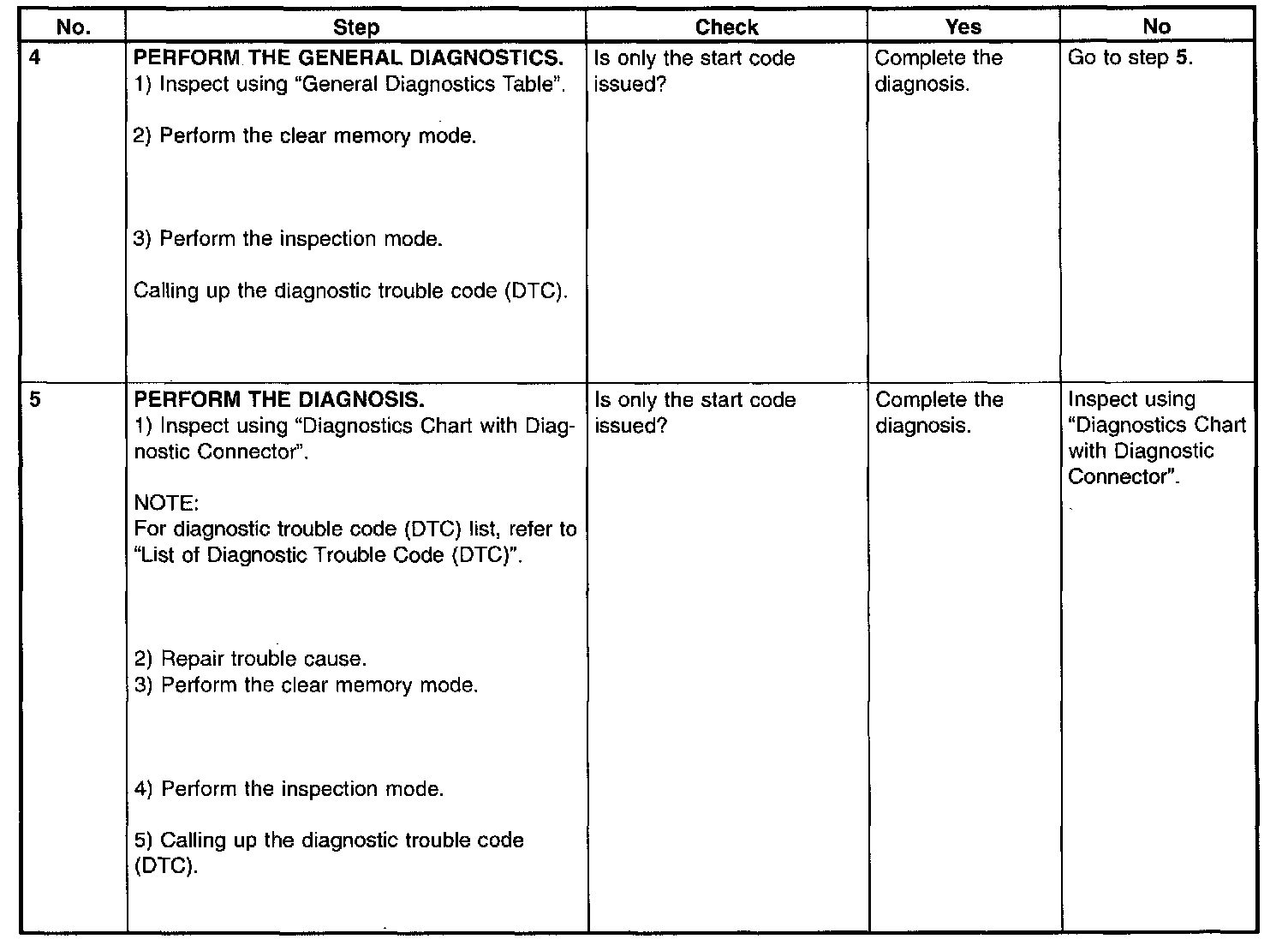

1. WITHOUT SUBARU SELECT MONITOR
1 of 2
2 of 2

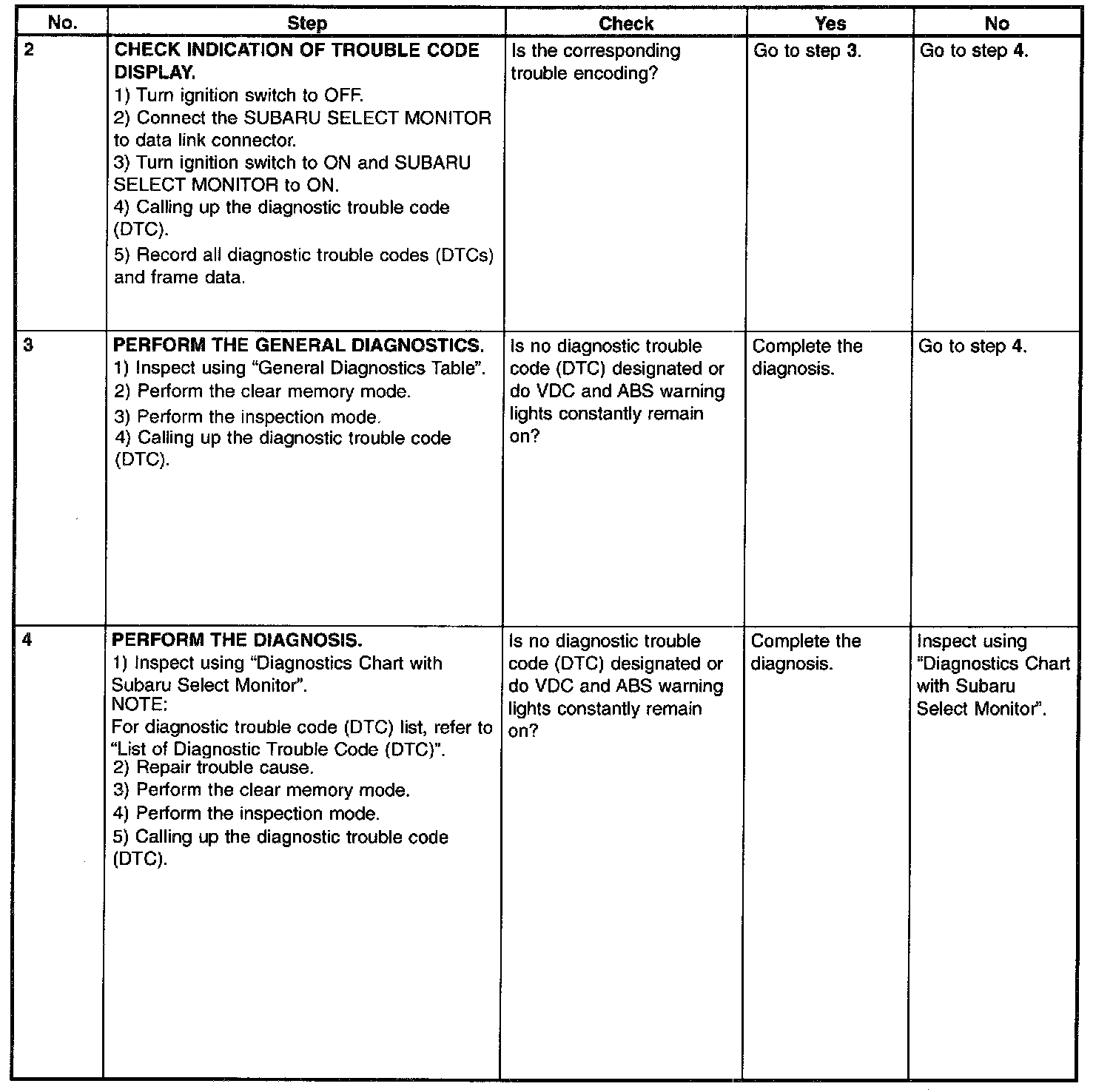

2. WITH SUBARU SELECT MONITOR
1 of 2
2 of 2
CAUTION: Remove foreign matter (dust, water, etc.) from the VDCCM connector during removal and installation.
NOTE:
^ To check harness for broken wires or short circuits, shake it while holding it or the connector.
^ Check list for interview.
2. Check List for Interview
CHECK
Check the following items about the vehicle's state.

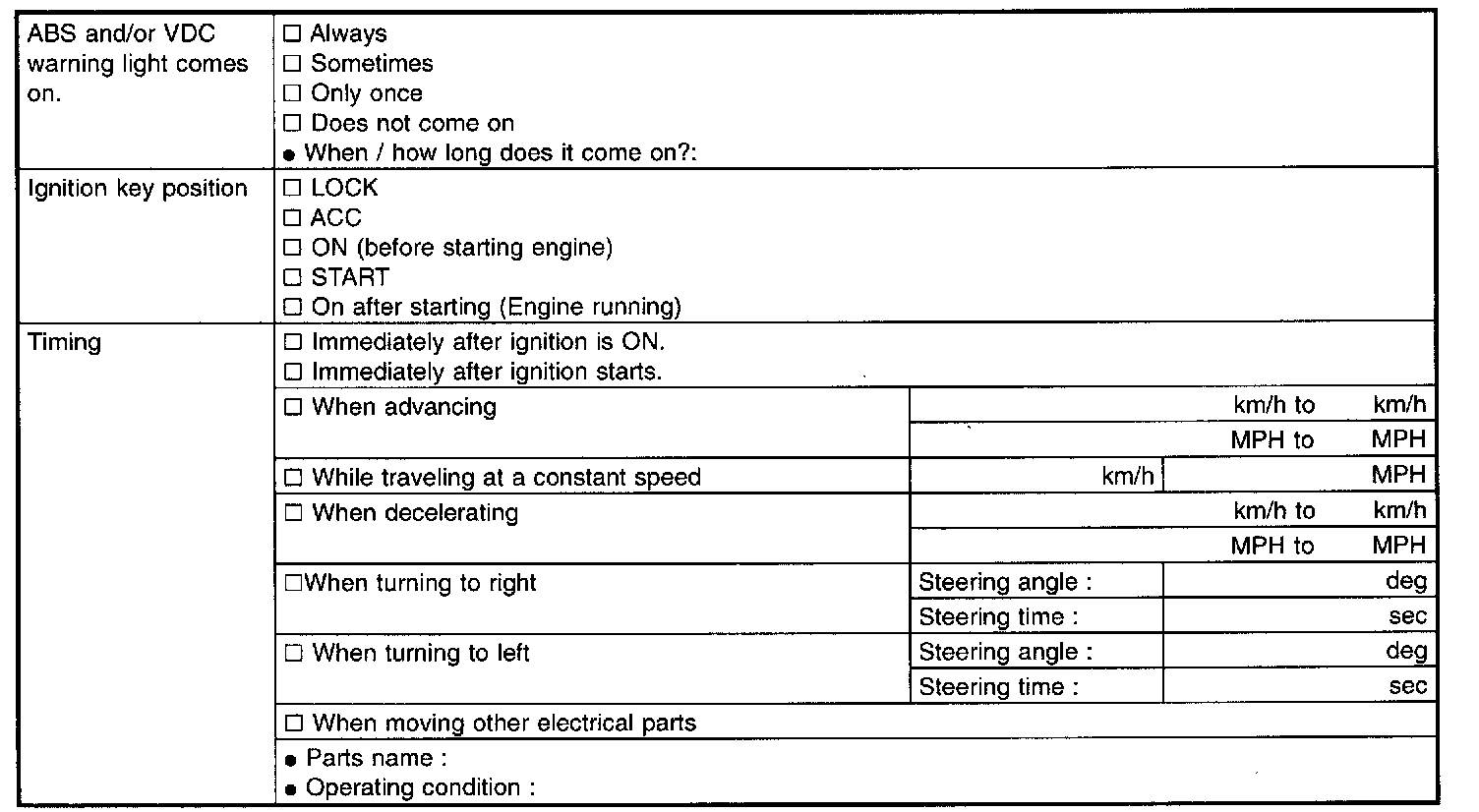

1. STATE OF ABS AND/OR VDC WARNING LIGHT

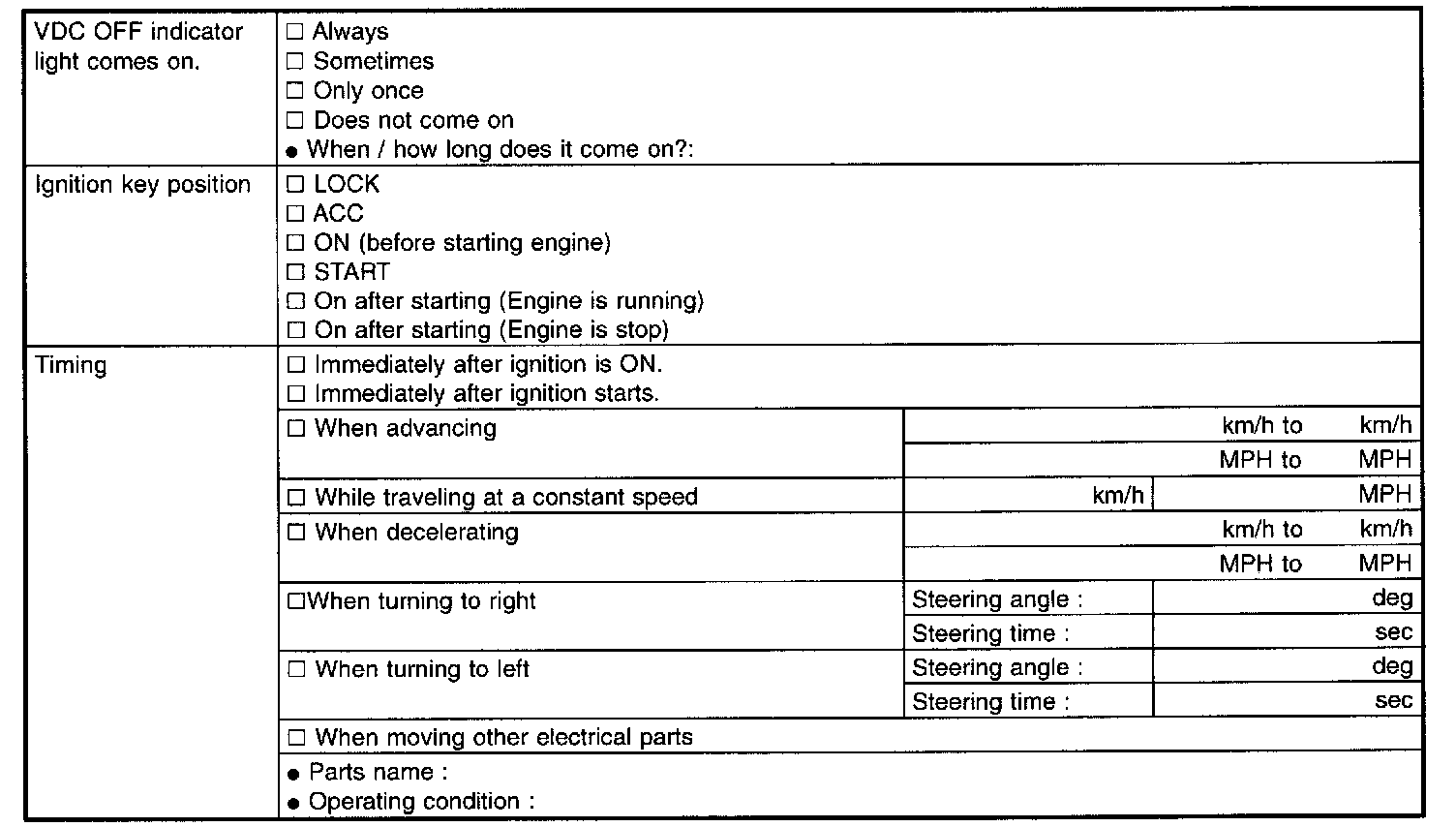

2. STATE OF VDC OFF INDICATOR LIGHT

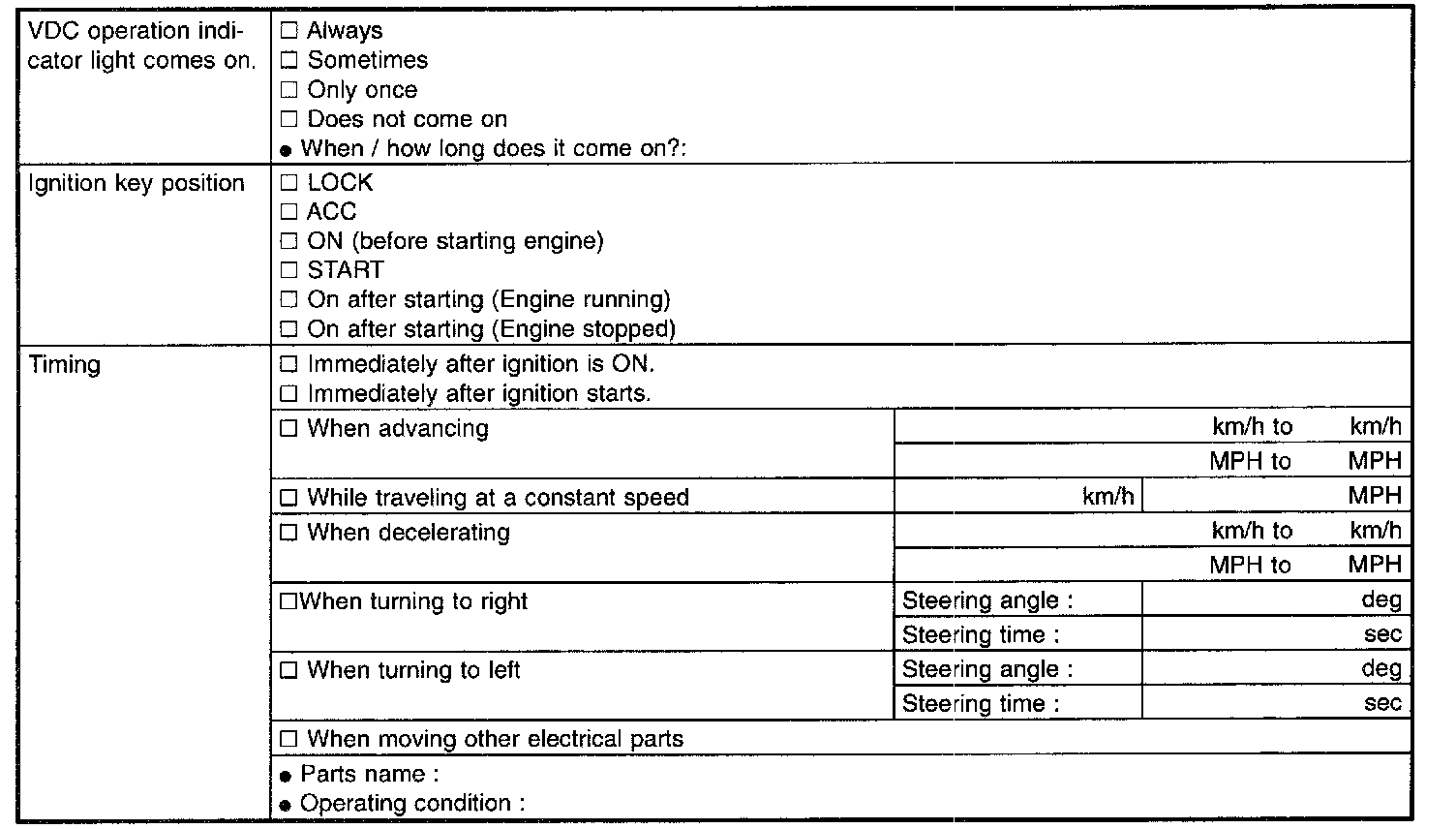

3. STATE OF VDC OPERATION INDICATOR LIGHT

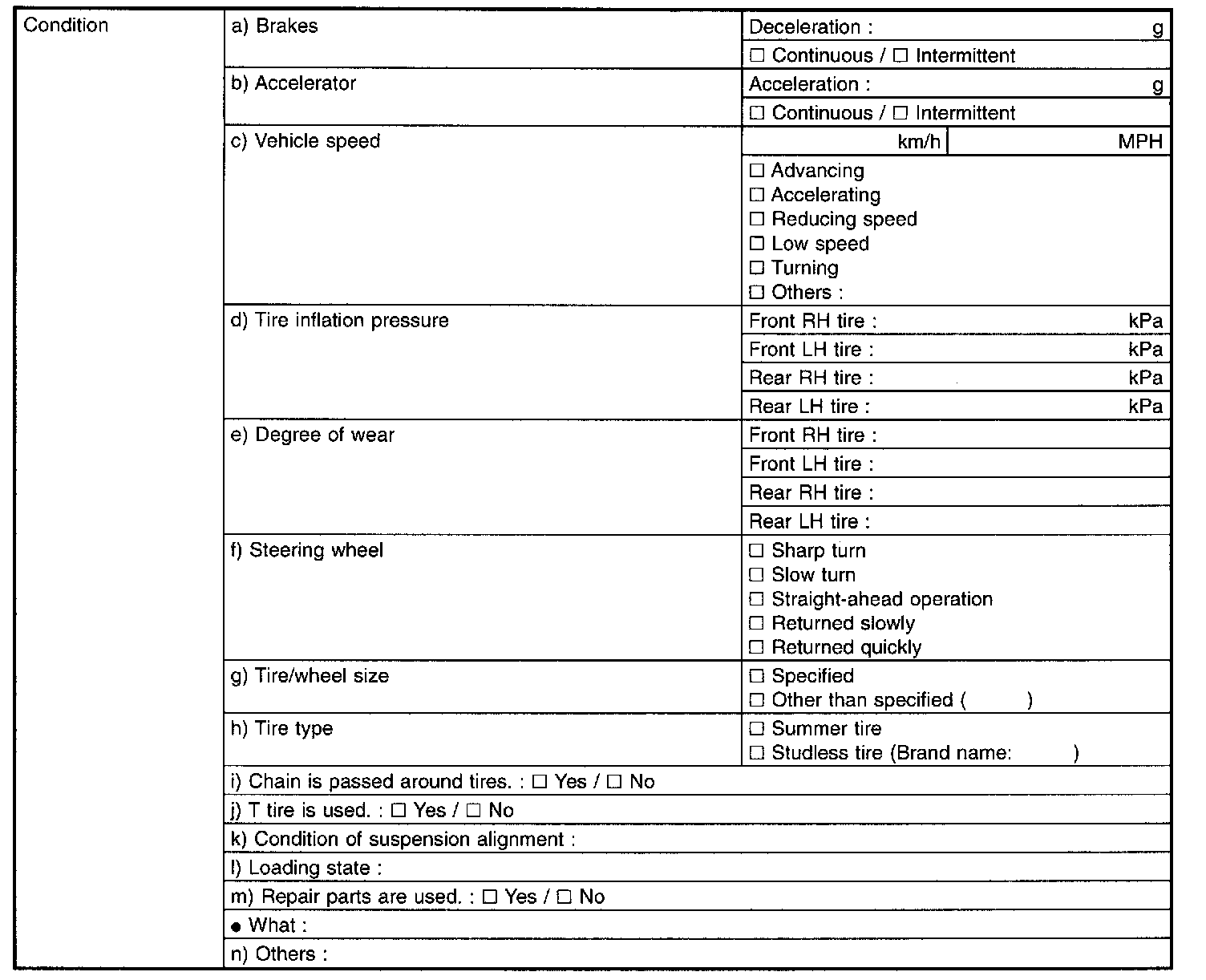

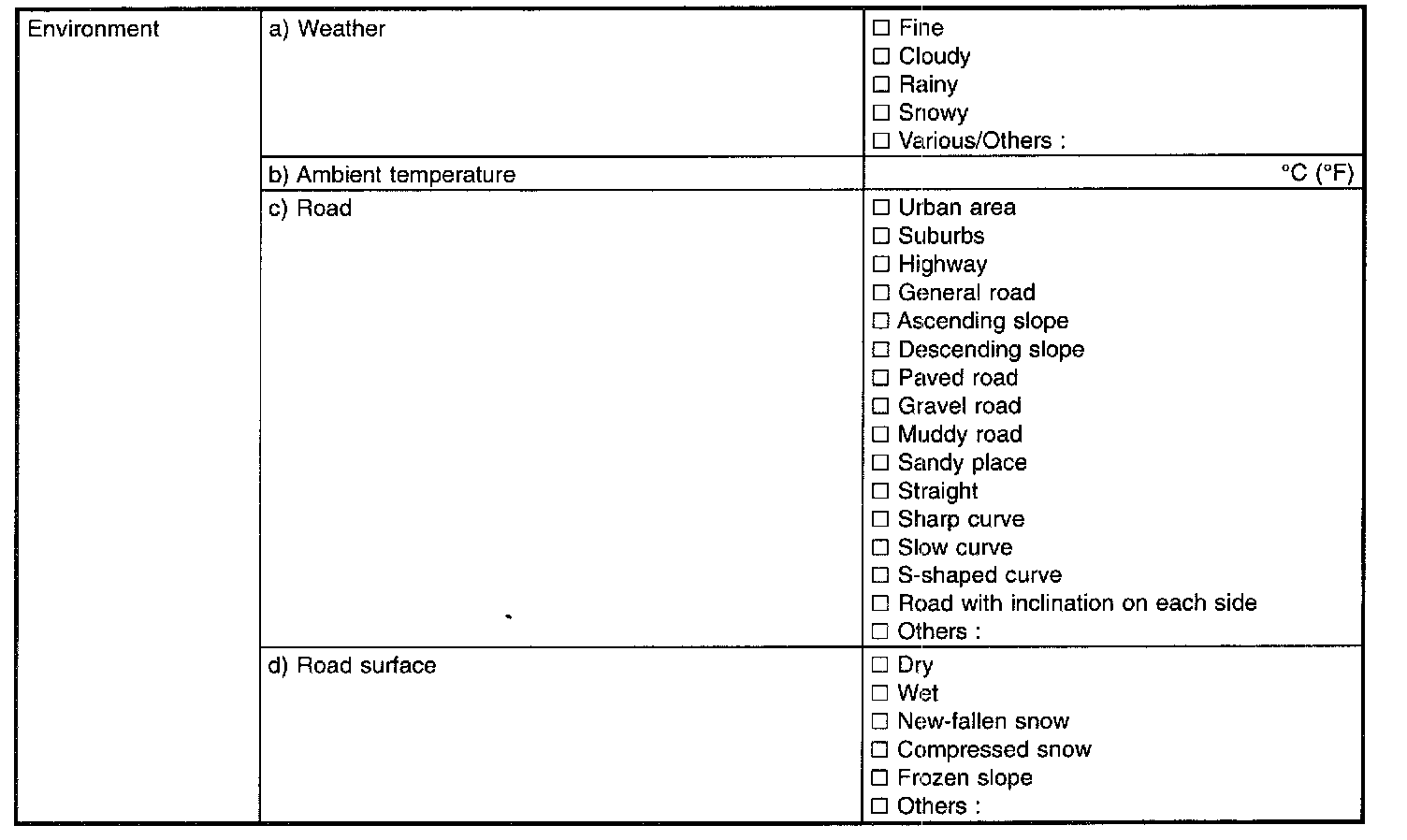

4. CONDITIONS UNDER WHICH TROUBLE OCCURS
1 of 2
2 of 2
