Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> Vehicle Dynamics Control (VDC) System Diagnosis >> Diagnosis By Symptom

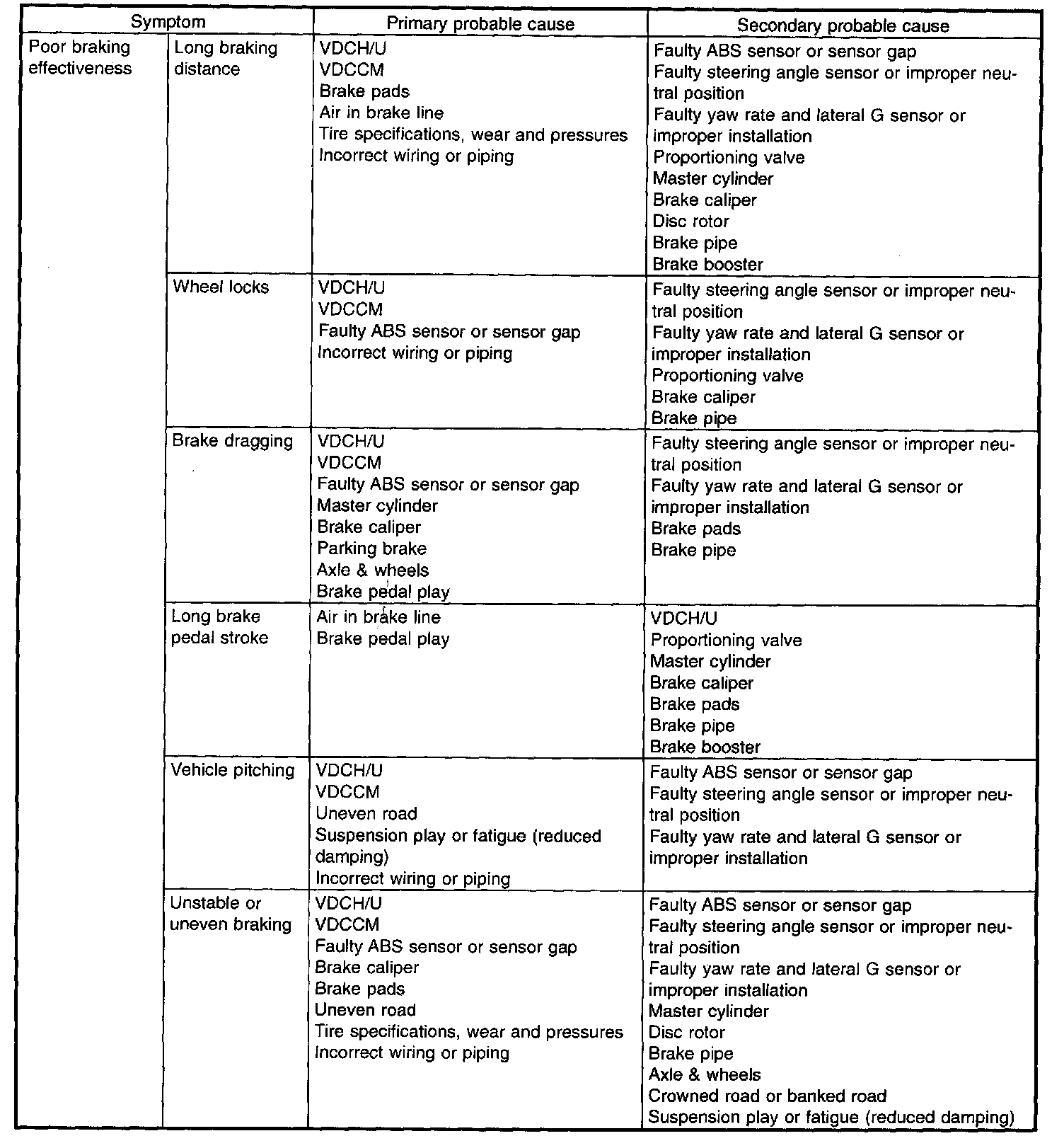

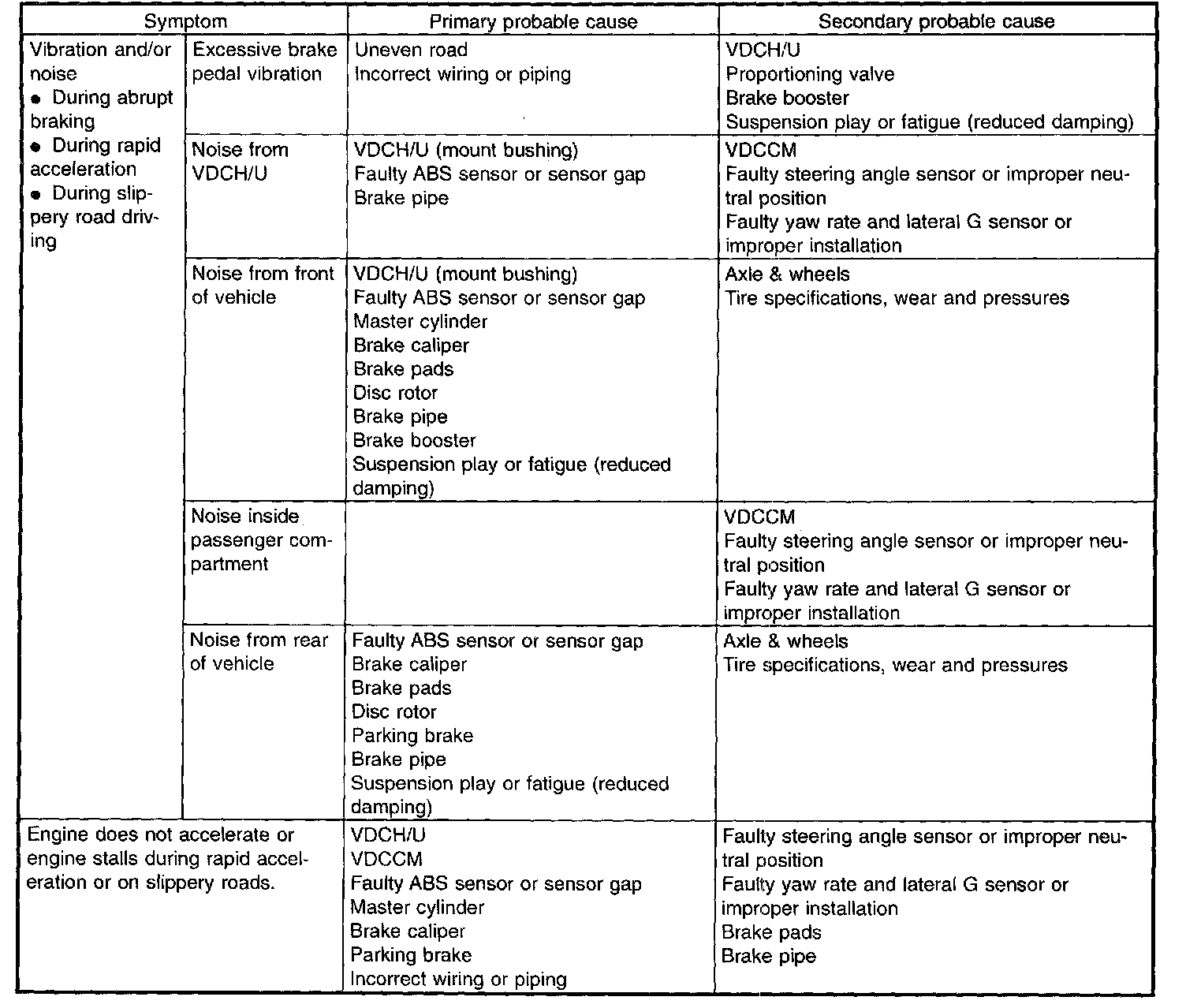

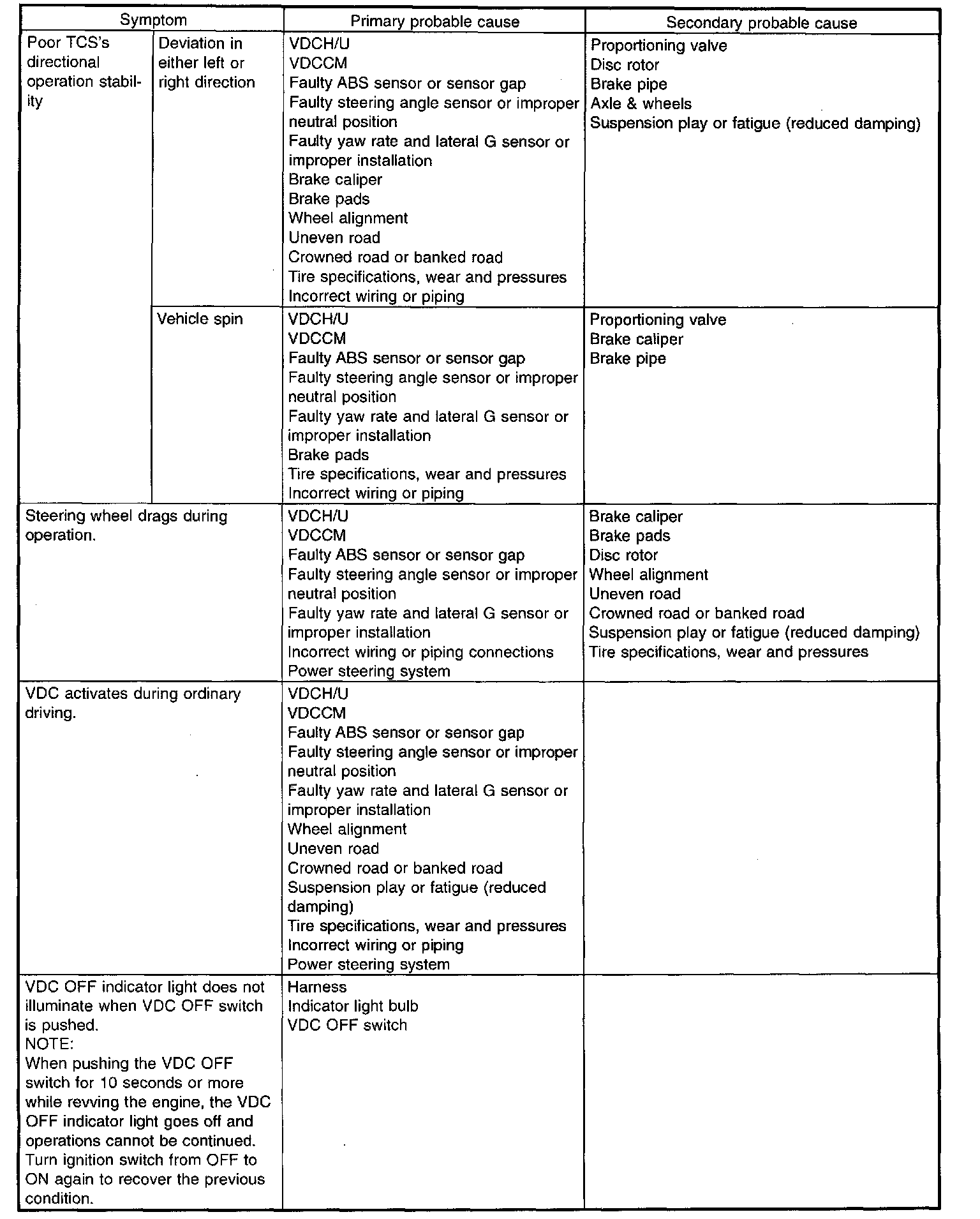

Diagnosis By Symptom

INSPECTION





1 of 3





2 of 3





3 of 3
