Trouble Code Does Not Appear

TROUBLE CODE DOES NOT APPEAR
DIAGNOSIS:
^ Diagnosis circuit is open.
TROUBLE SYMPTOM:
^ The ABS warning light turns on or off normally but the start code cannot be read out in the diagnostic mode.

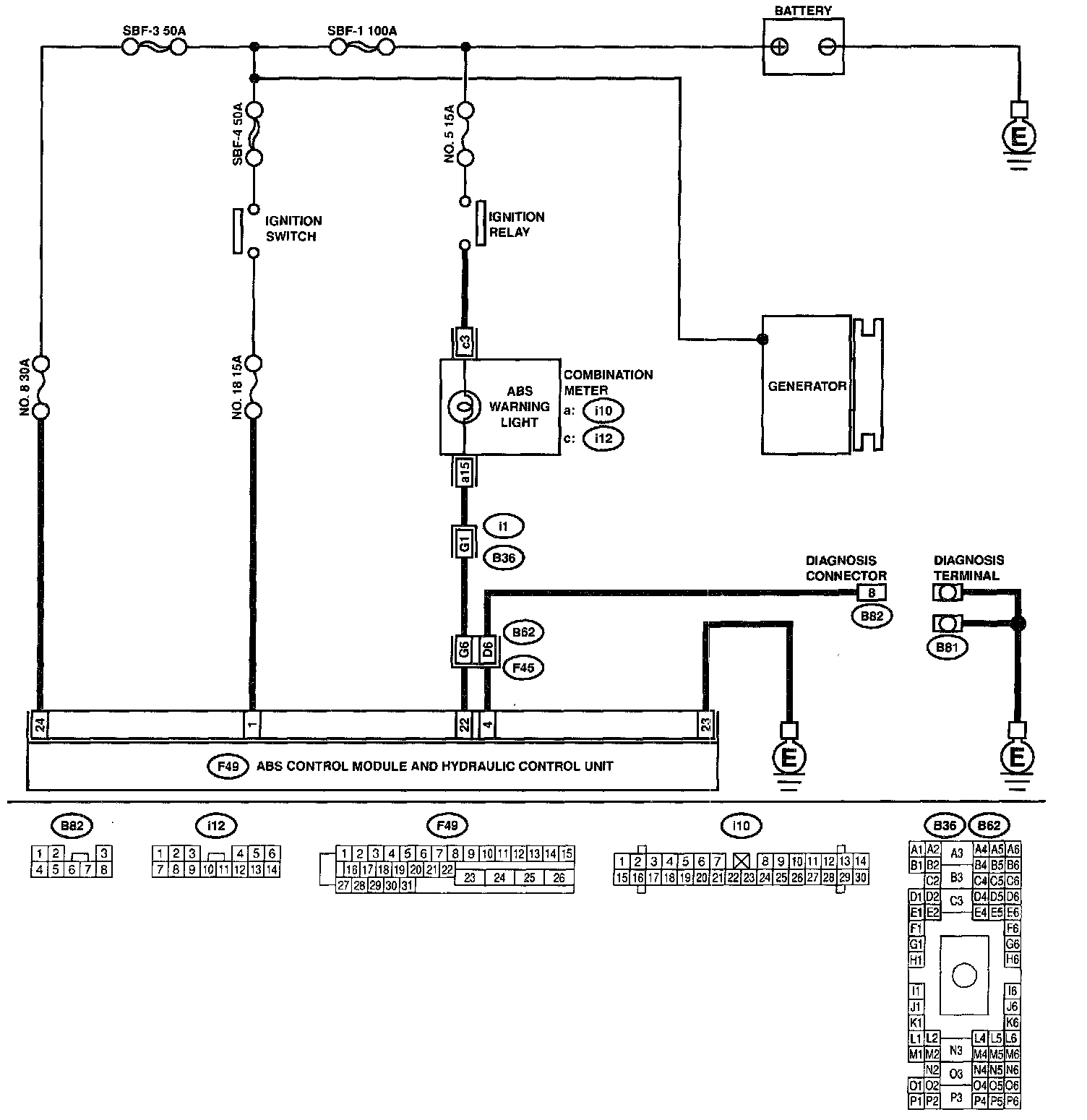

WIRING DIAGRAM:

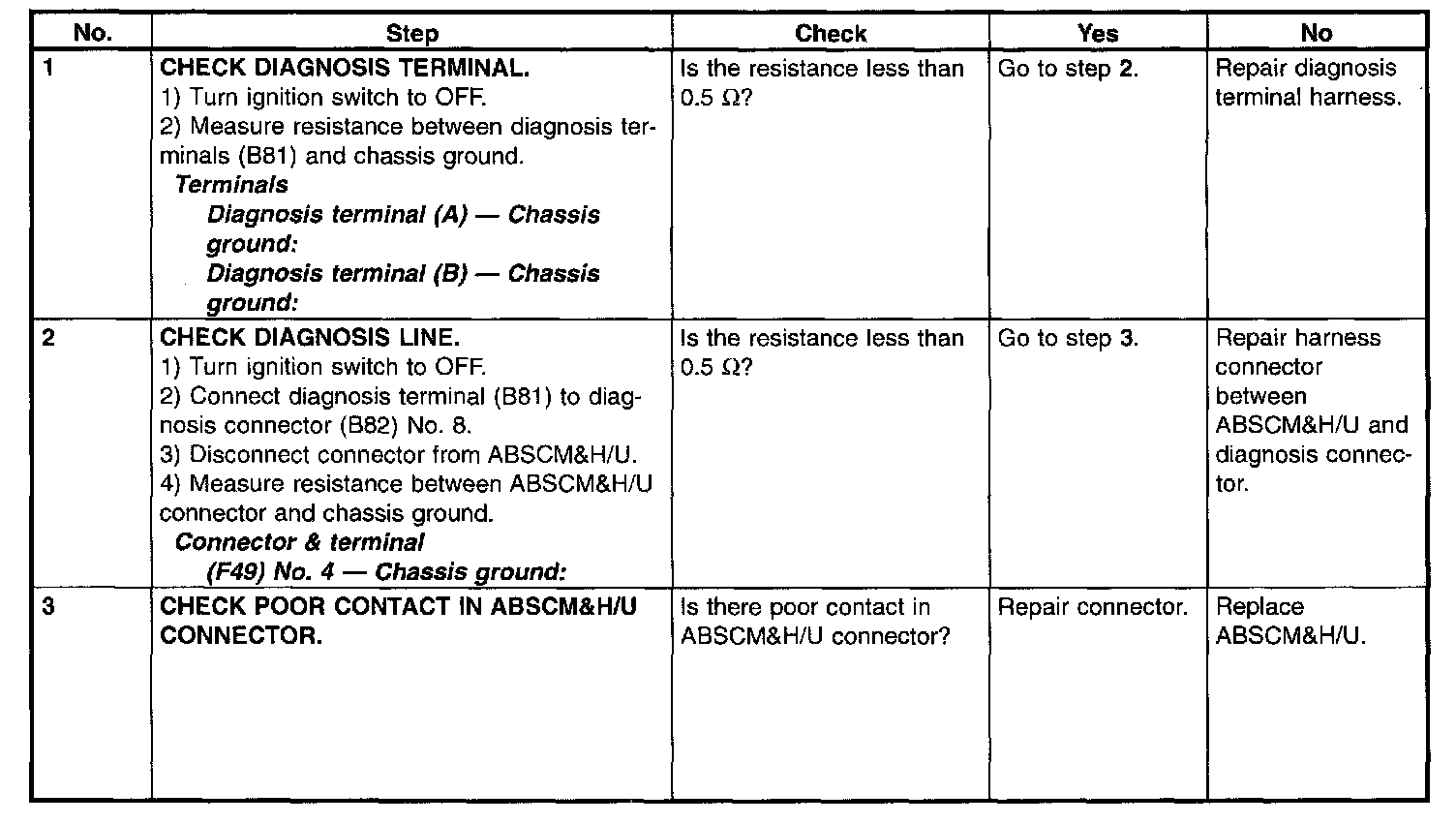

PROCEDURE:
