ABS Warning Light Does Not Come on

ABS WARNING LIGHT DOES NOT COME ON
DIAGNOSIS:
^ ABS warning light circuit is open or shorted.
TROUBLE SYMPTOM:
^ When ignition switch is turned ON (engine OFF), ABS warning light does not come on.

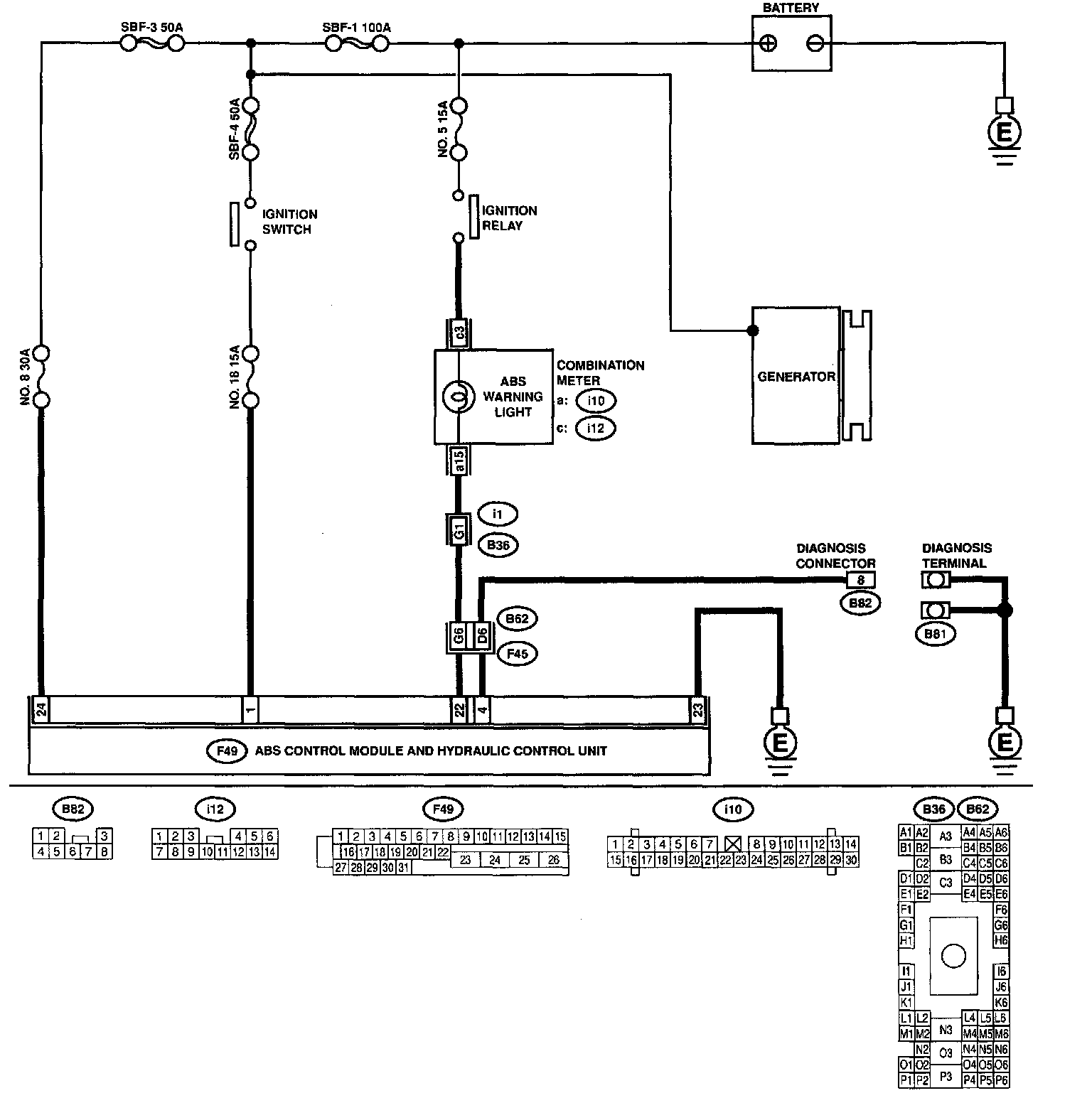

WIRING DIAGRAM:

PROCEDURE:

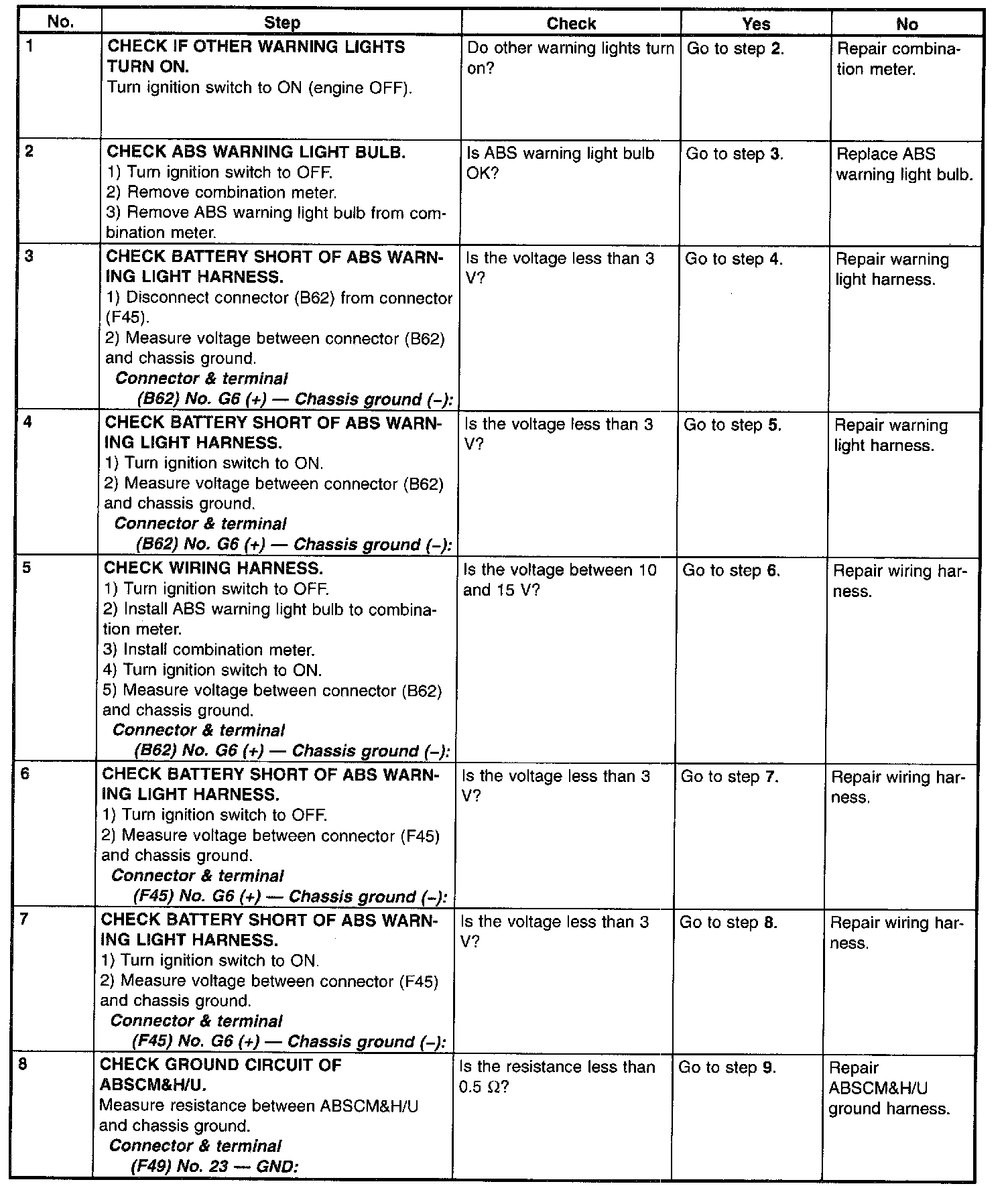

No 1 - 8

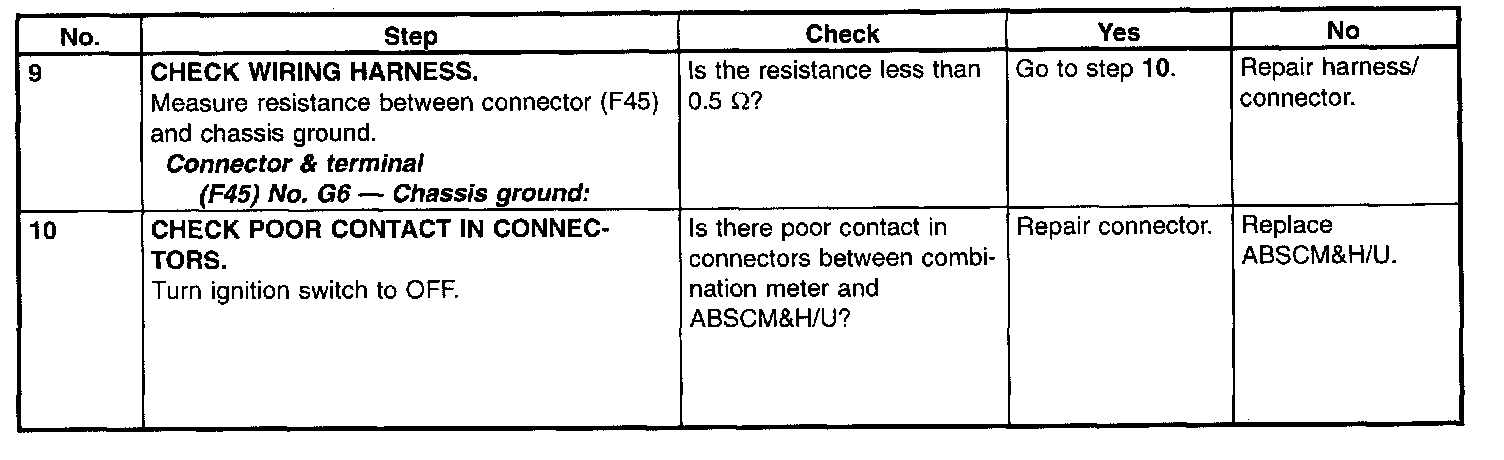

No 9 - 10
