Vehicle Dynamics Control (VDC)

INSPECTION

1. LATERAL G SENSOR SIGNAL

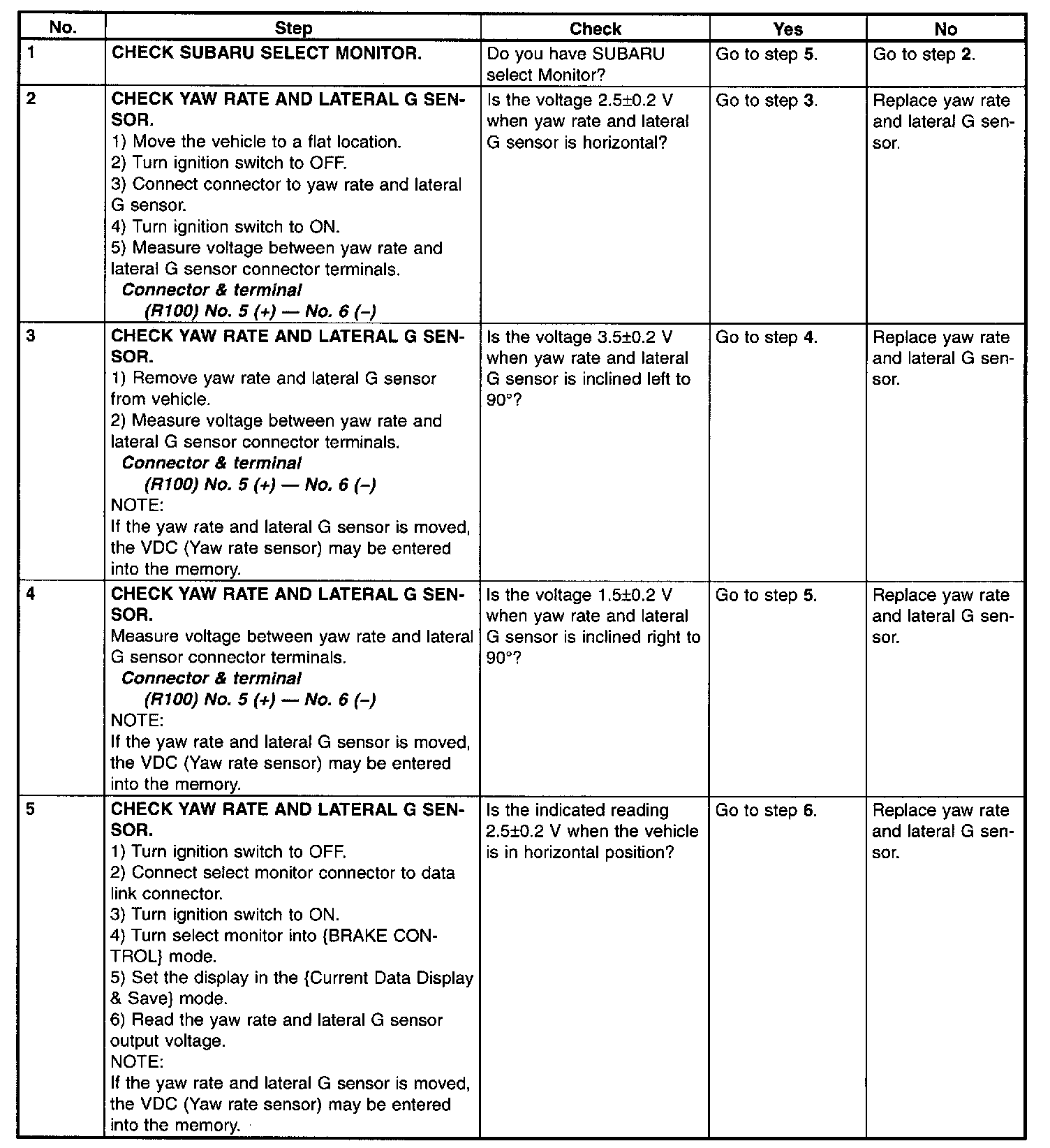

1 of 2

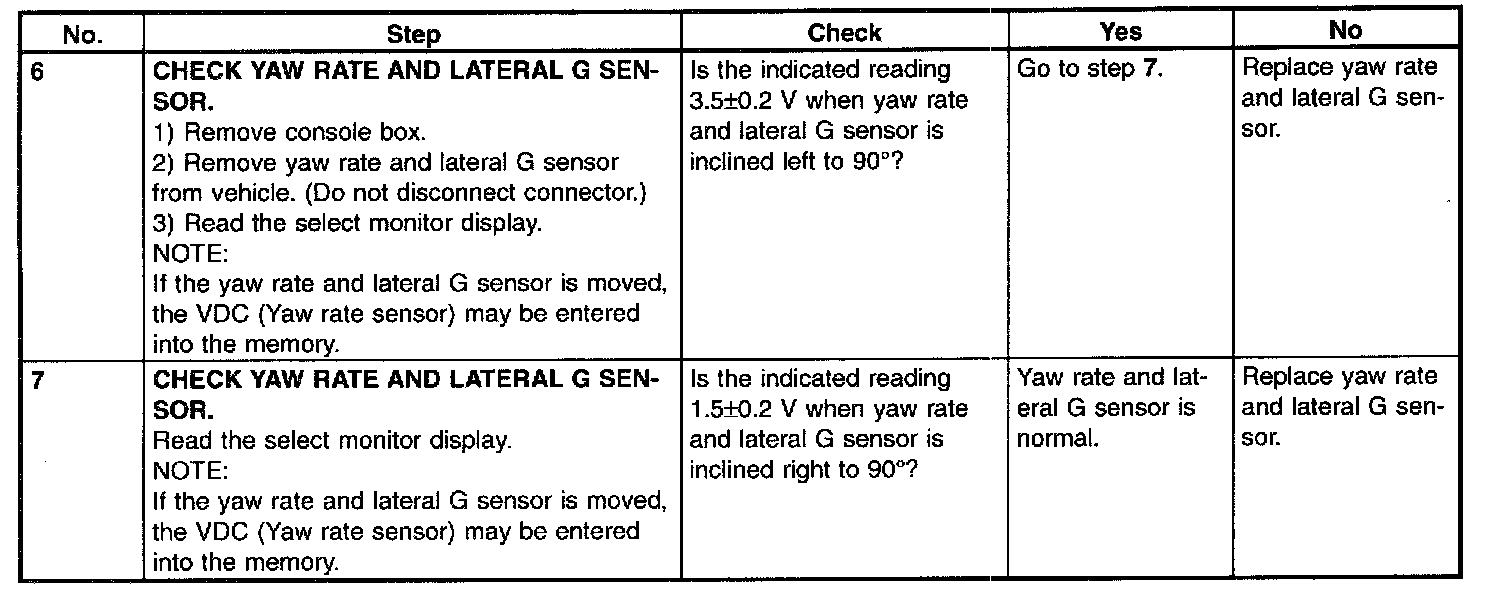

2 of 2

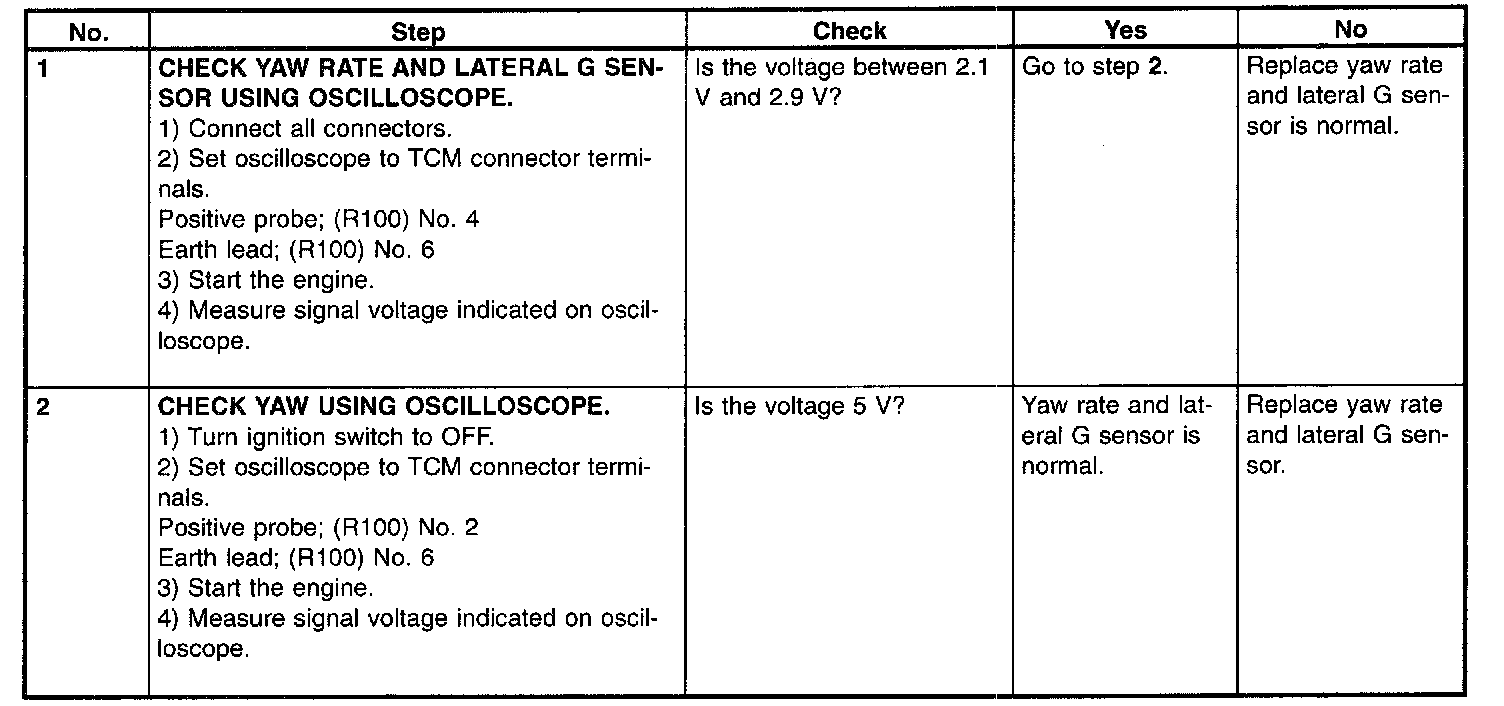

2. YAW RATE SENSOR SIGNAL
