FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Subaru
>>
2002
>>
Outback L.L.Bean Edition AWD F6-3.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Paint, Striping and Decals
>>
Paint
>>
Application and ID
Paint: Application and ID
Paint

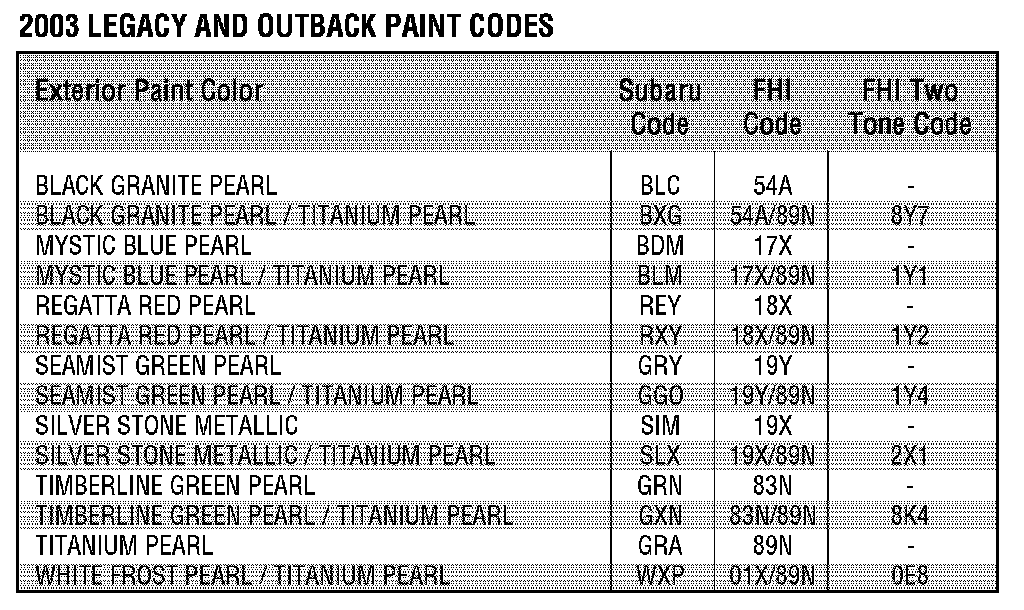

Codes
NOTE:
The
paint
codes are found on the VIN plate located on the Left Strut Tower. The color code is depicted by a solid color or by a combined upper and lower color code.
