Power Mirror Switch: Testing and Inspection










INSPECTION

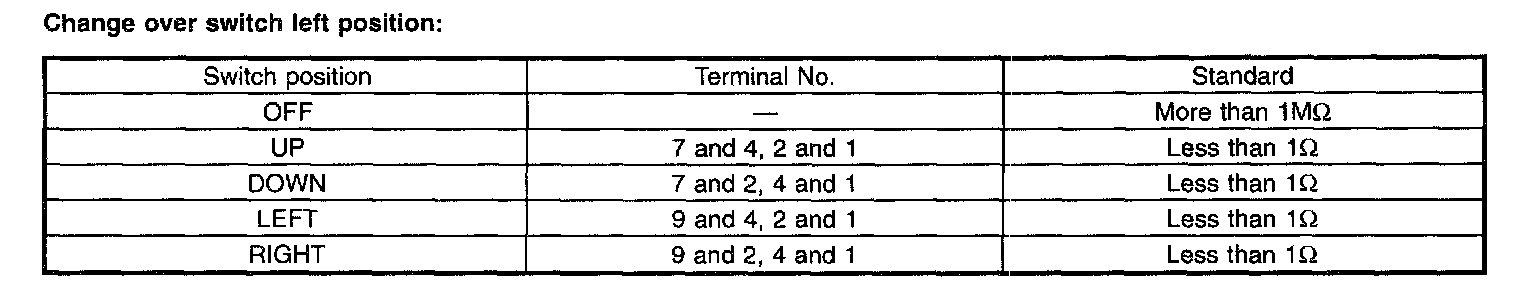

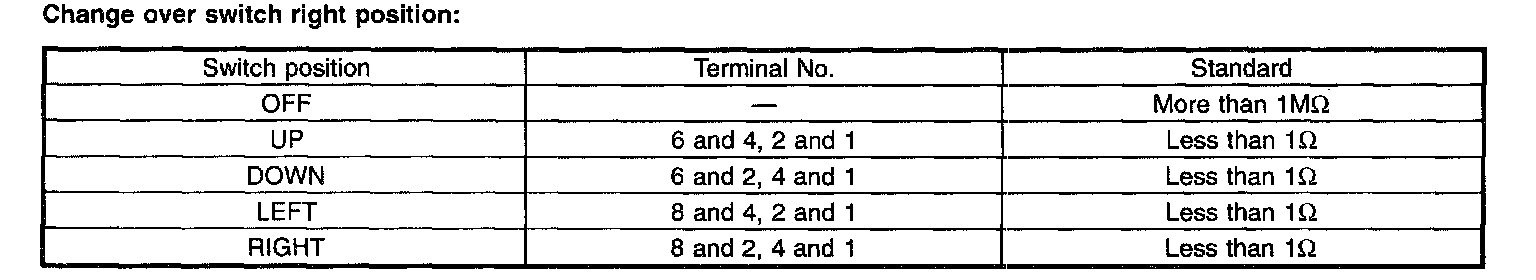

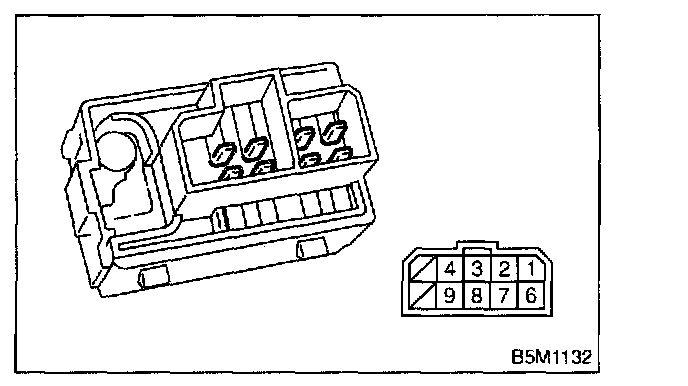

Move rearview mirror switch to each position and check continuity between terminals.
If NG, replace the switch.
