Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Testing and Inspection >> Diagnostic Symptom Procedure >> Check Door Lock Switch and Circuit

Check Door Lock Switch and Circuit

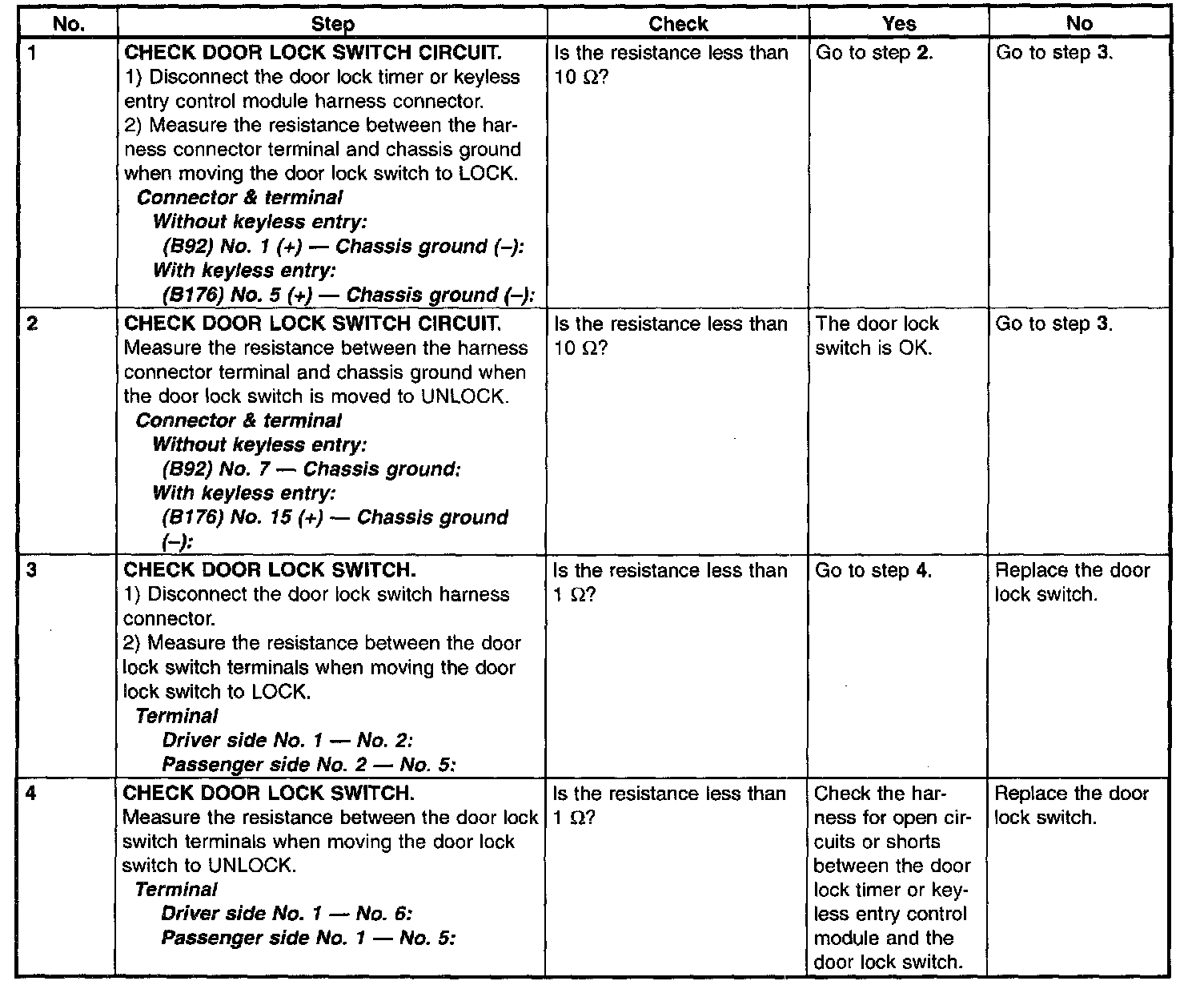

Check Door Lock Switch And Circuit Step 1 - 4:
