Trunk / Liftgate Shock / Support: Service and Repair

DISPOSAL

1. GAS STAY

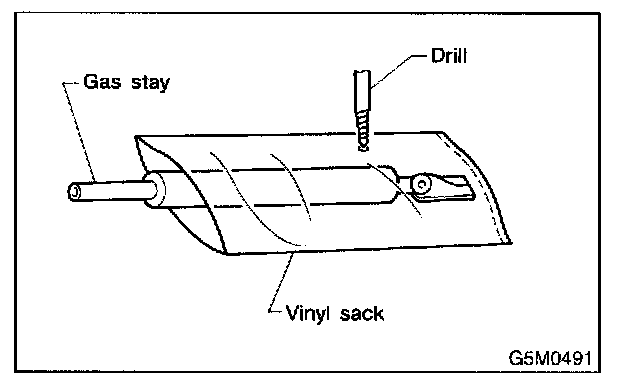

1. Cover with a vinyl case before drilling holes.






CAUTION: Prevent the vinyl case from being caught by drill cutting edge

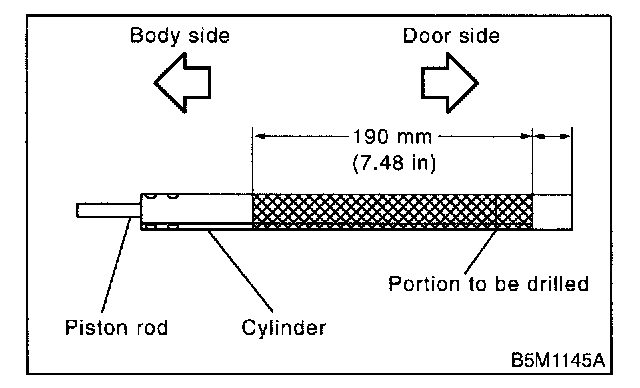

2. Lift body side slightly with piston rods fully extended, and secure body side on vise stand. Drill a hole in 2 to 3 mm (0.08 to 0.12 in) diameter at a point 10 to 200 mm (0.39 to 7.87 in) from door side, and bleed gas stay completely.

CAUTION: Gas is colorless, odorless, and harmless. However, gas pressure may spray cutting powder or oil. Be sure to wear dust-resistant goggles.
