Rear Gate Trim

REAR GATE TRIM

REMOVAL

CAUTION: Be careful not to damage clips or their holes.

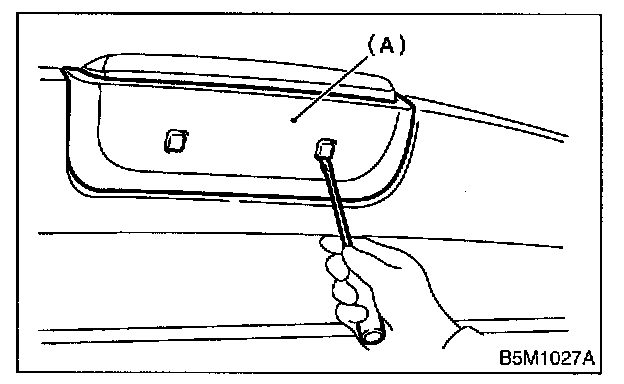

1. Remove clips and detach rear gate lower trim (A).






2. Remove caps and screws, and then detach high-mounted stop light cover (A).






3. Remove rear gate upper trim (A).






INSTALLATION

Install in the reverse order of removal.
