Hood Latch: Service and Repair

Front Hood Lock Assembly

REMOVAL

1. Open the hood.

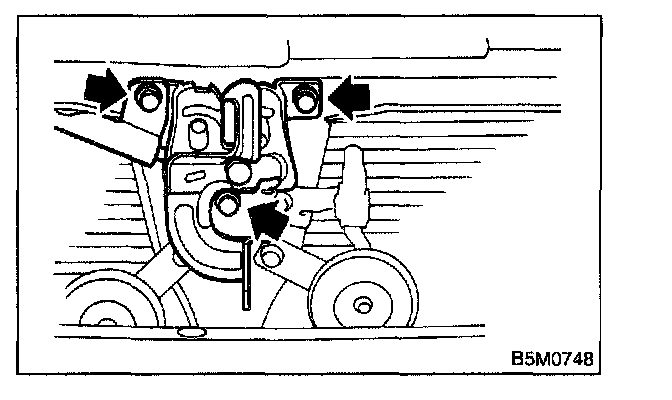

2. Remove the bolt. Remove the hood lock assembly.




3. Remove the release cable from the lock assembly.

INSTALLATION

Install in the reverse order of removal.

NOTE:
- Apply grease to parts that rub.
- Make sure the release cable works properly after installation.

INSPECTION

1. Check the striker for bending or abnormal wear.
2. Check the safety lever for improper movement.
3. Check other levers and the spring for rust formation and unsmooth movement.
