Removal and Replacement

Front Bumper

Front Bumper:

REMOVAL

CAUTION:
- Handle bumper carefully to avoid damage to bumper face.
- Do not damage body during removal or installation of bumper.
- To avoid damage to bumper, lay removed bumper on sheet spread on the floor. Do not lay it directly on the floor.

1. Open hood.
2. Remove ground cable from battery.

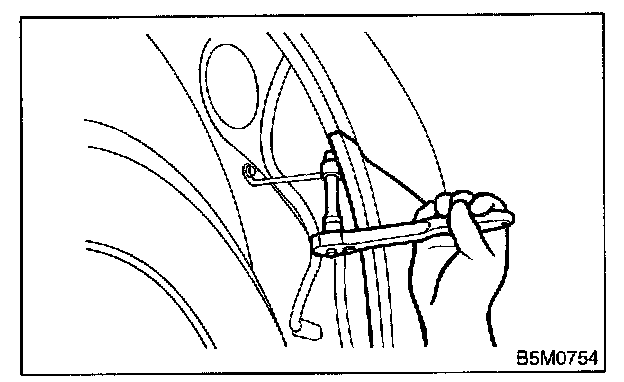

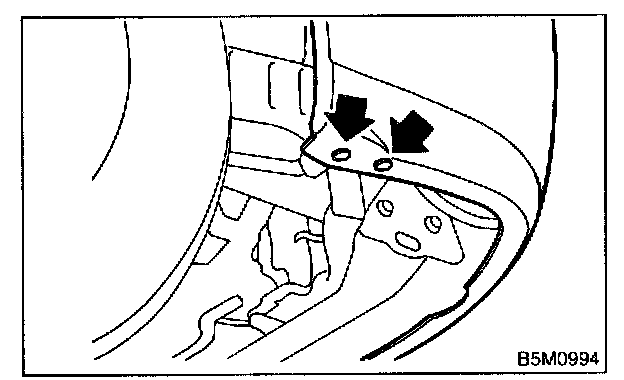

3. Pull off front side of front mud guard to remove bolts.






4. Remove clip at bottom of bumper.

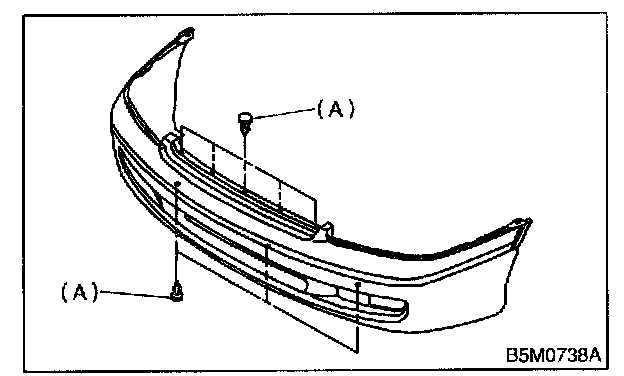

5. Remove clip (A), and pull out bumper slightly.
6. Disconnect electrical connector of fog light to remove bumper.

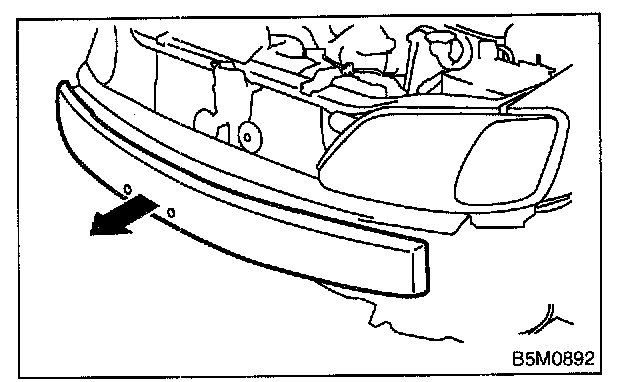

7. Remove E/A FORM from bumper beam.

CAUTION: E/A FORM is easy to break. Do not apply excessive force to it during removal.

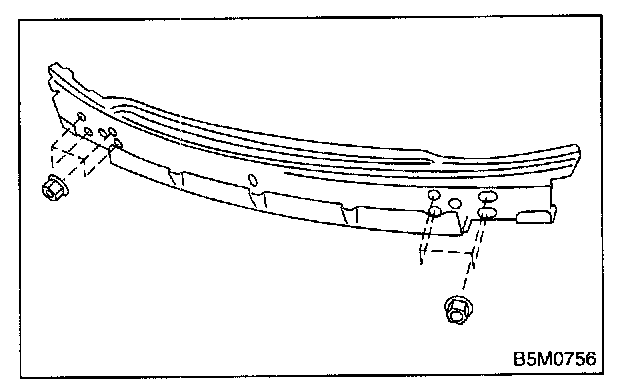

8. Remove bumper beam.






INSTALLATION

Install in the reverse order of removal.

CAUTION:
- Handle bumper carefully to avoid damage to bumper face.
- Do not damage body during removal or installation of bumper.

Tightening torque:

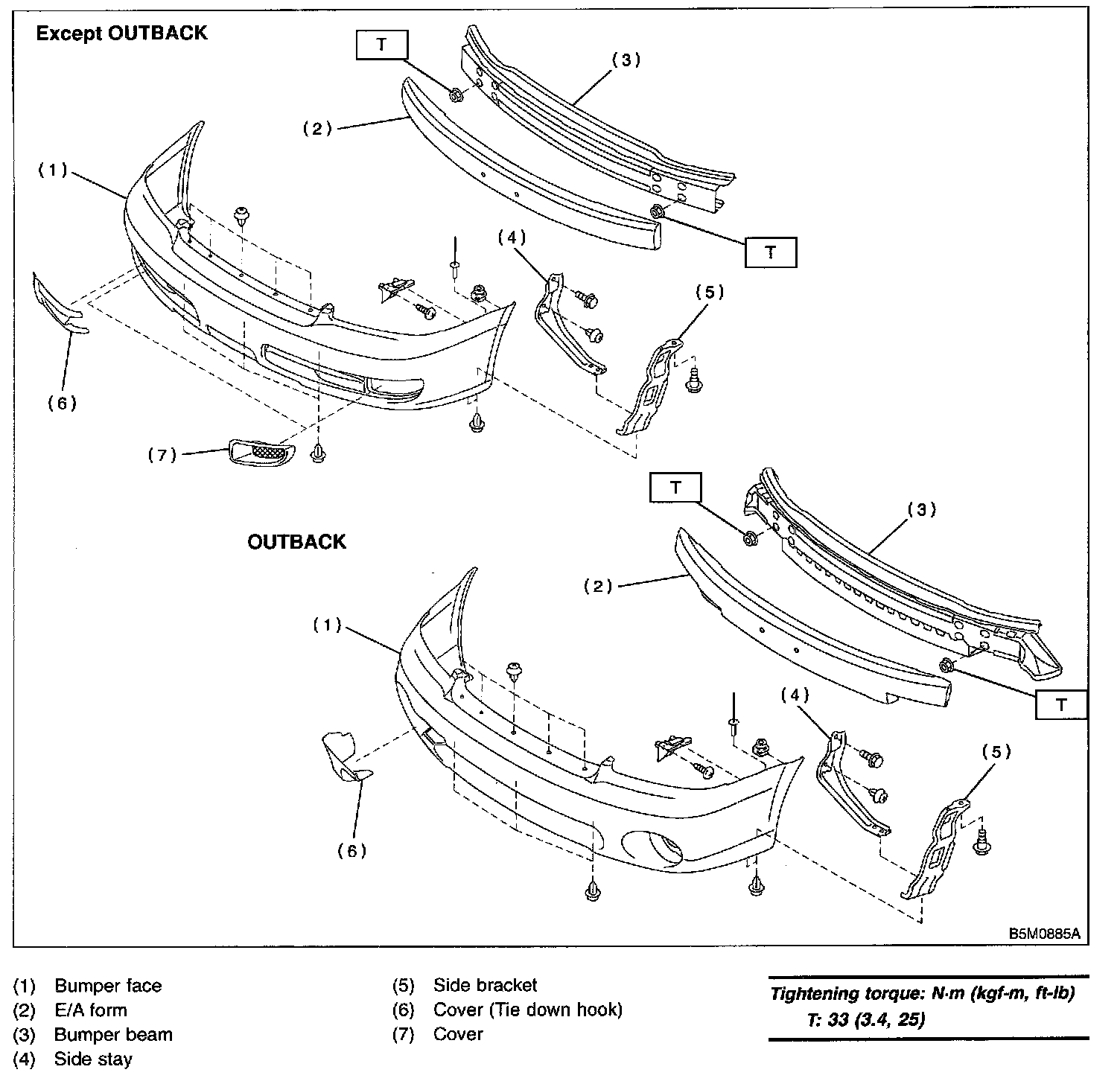

Refer to COMPONENT in General Description. BUMPER, COMPONENT, General Description.>
