Outback L.L.Bean Edition AWD F6-3.0L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Speaker
>>
Service and Repair
>>
Rear Speaker
Rear Speaker
REMOVAL
1.
Disconnect ground cable from battery.
2.
Remove rear door trim.
3.

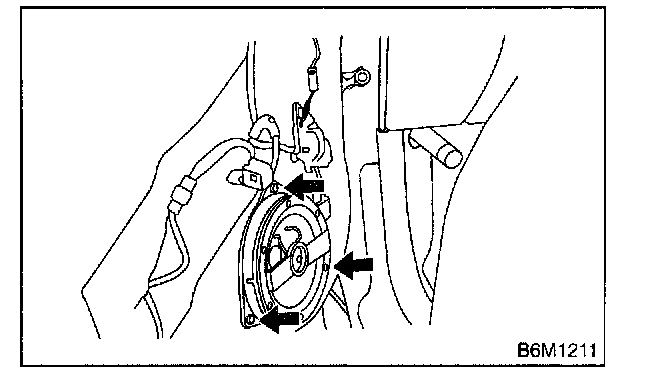

Remove rear speaker mounting screws.
4.
Disconnect harness connector and remove rear speaker.
INSTALLATION
Install in the reverse order of removal.
