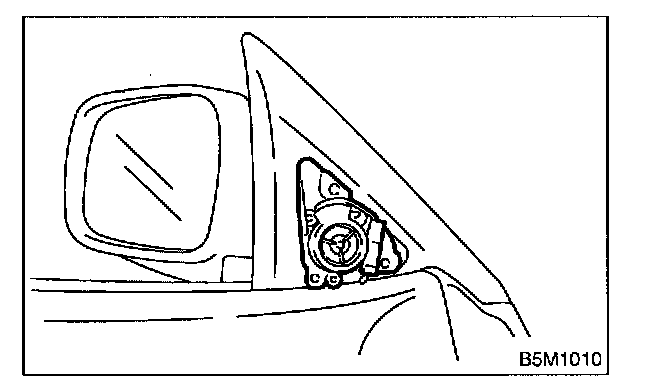

Front Tweeter

Front Tweeter

REMOVAL
1. Disconnect ground cable from battery.
2. Remove gusset cover.




3. Disconnect harness connector and remove tweeter.

INSTALLATION
Install in the reverse order of removal.
