Radio/Stereo: Service and Repair

Radio Body

REMOVAL
1. Disconnect ground cable from battery.

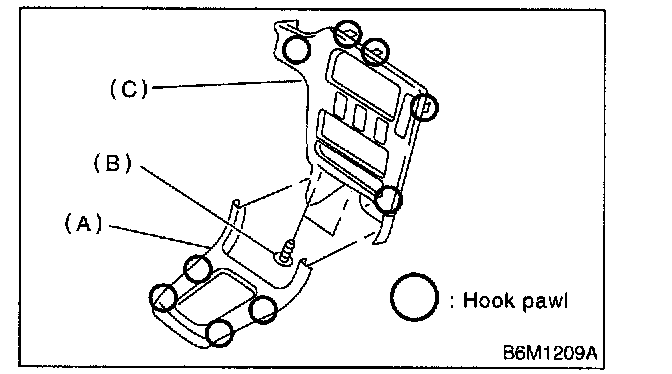

2. Remove front cover (A).
3. Remove two screws (B) and then remove center panel (C) while disconnecting connector.

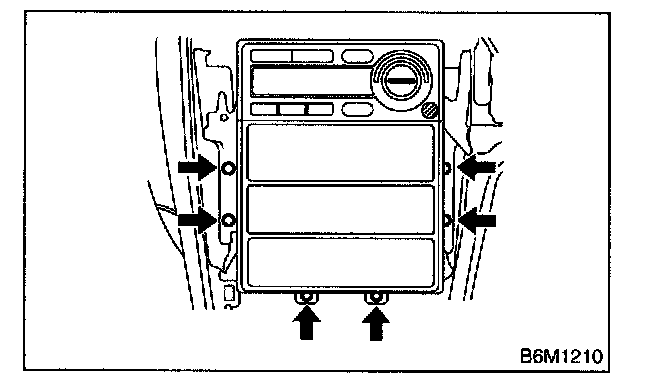

4. Remove fitting screws, and slightly pull radio out from center console.
5. Disconnect electric connectors and antenna feeder cord and then disconnect heater control unit.

INSTALLATION
Install in the reverse order of removal.
