Amplifier: Service and Repair

Speaker Amplifier

REMOVAL
1. Disconnect ground cable from battery.
2. Remove passenger's seat.
3. Disconnect harness connector.

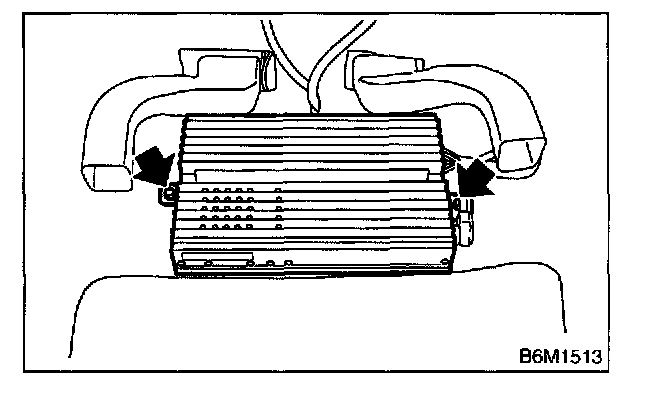

4. Remove mounting nuts, and then detach speaker amplifier.

INSTALLATION
Install in the reverse order of removal.
