Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Diagnosis By Symptom >> Diagnostic Symptom Procedure >> Check Power Supply and Ground Circuit

Check Power Supply and Ground Circuit

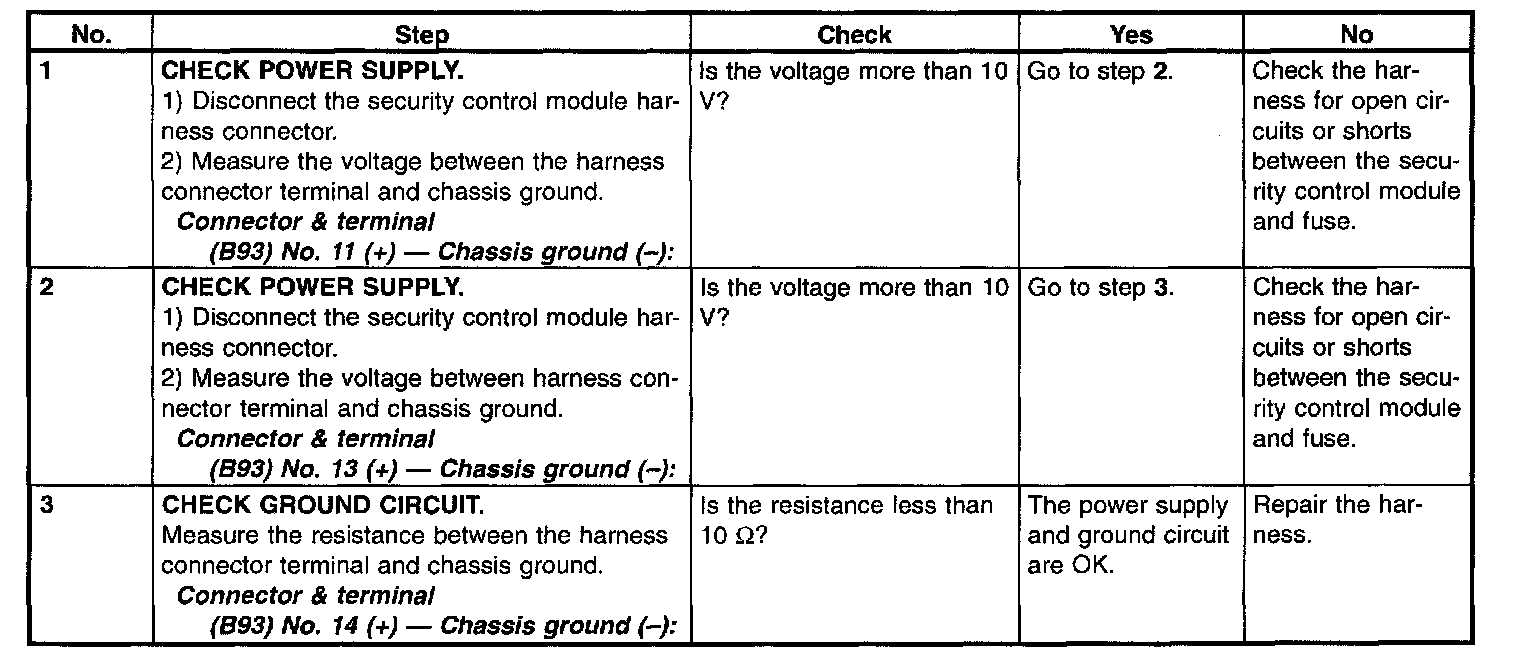

Check Power Supply And Ground Circuit Step 1 - 3:
