Home >> Subaru >> 2002 >> Outback L.L.Bean Edition AWD F6-3.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Diagnosis By Symptom >> Diagnostic Symptom Procedure >> Check Door Switch

Check Door Switch

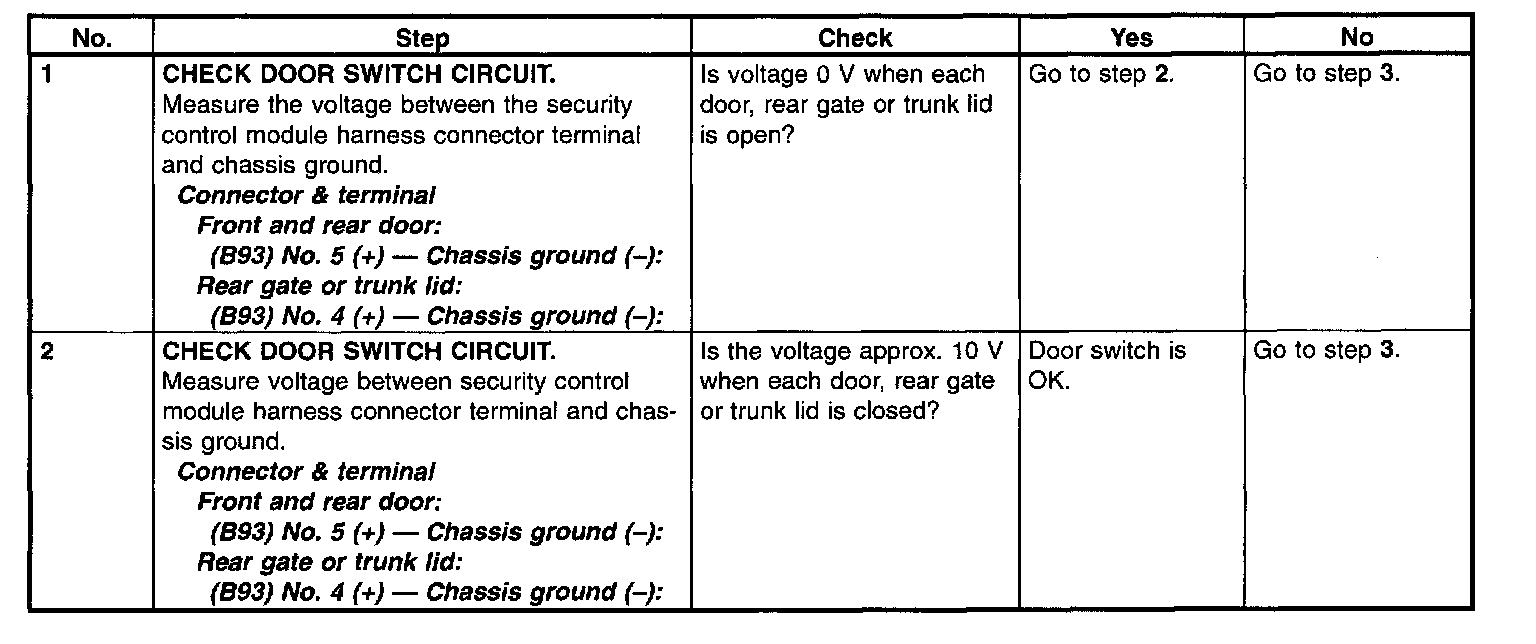

Check Door Switch Step 1 - 2:

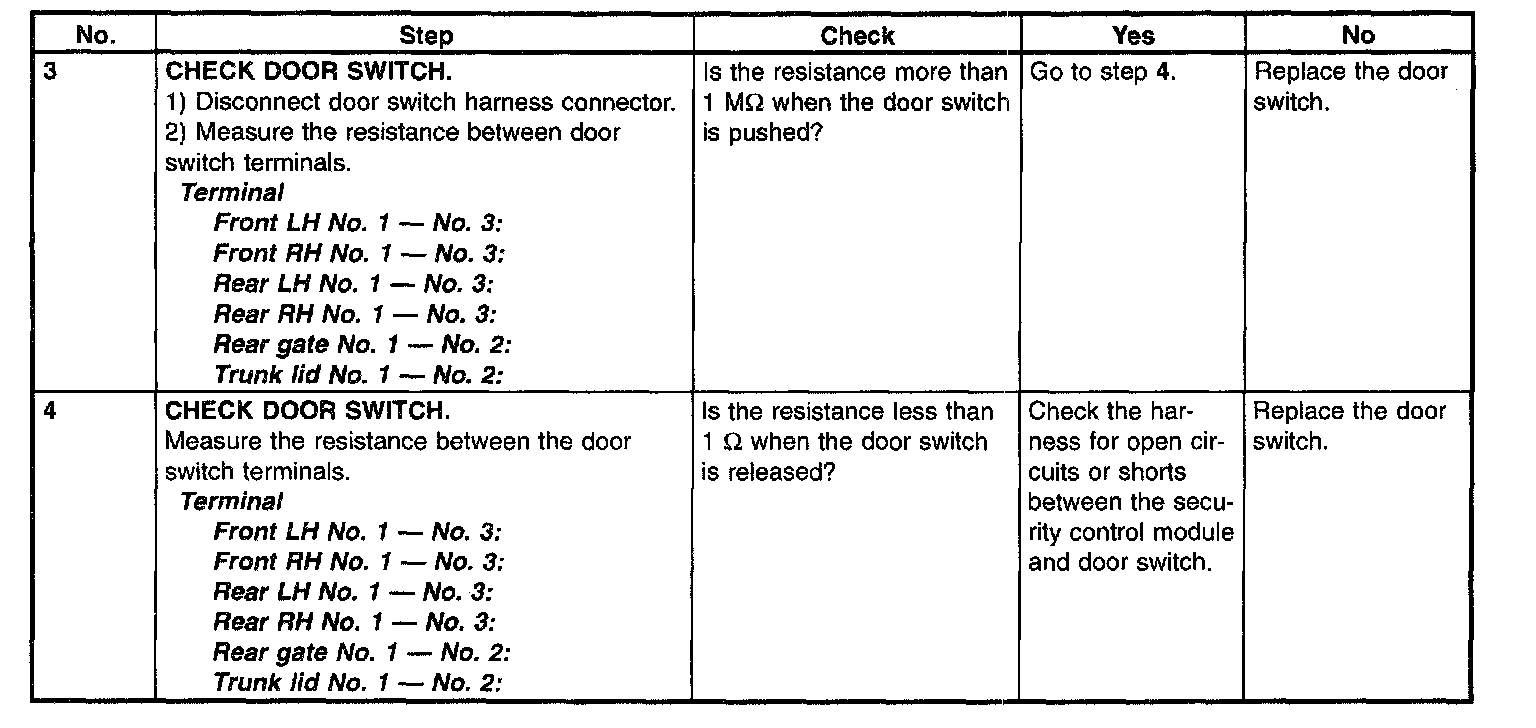

Check Door Switch Step 3 - 4:
