P1443

The content of this article/image reflects the changes Identified in
TSB # 18-101-06
as of 02/13/2006
and applies to 2002 Legacy, Forester & Impreza Models

DTC P1443 - EVAPORATIVE EMISSION CONTROL SYSTEM VENT CONTROL FUNCTION PROBLEM

DTC DETECTING CONDITION:
- Immediately after fault occurrence

TROUBLE SYMPTOM:
- Improper fuel supply

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

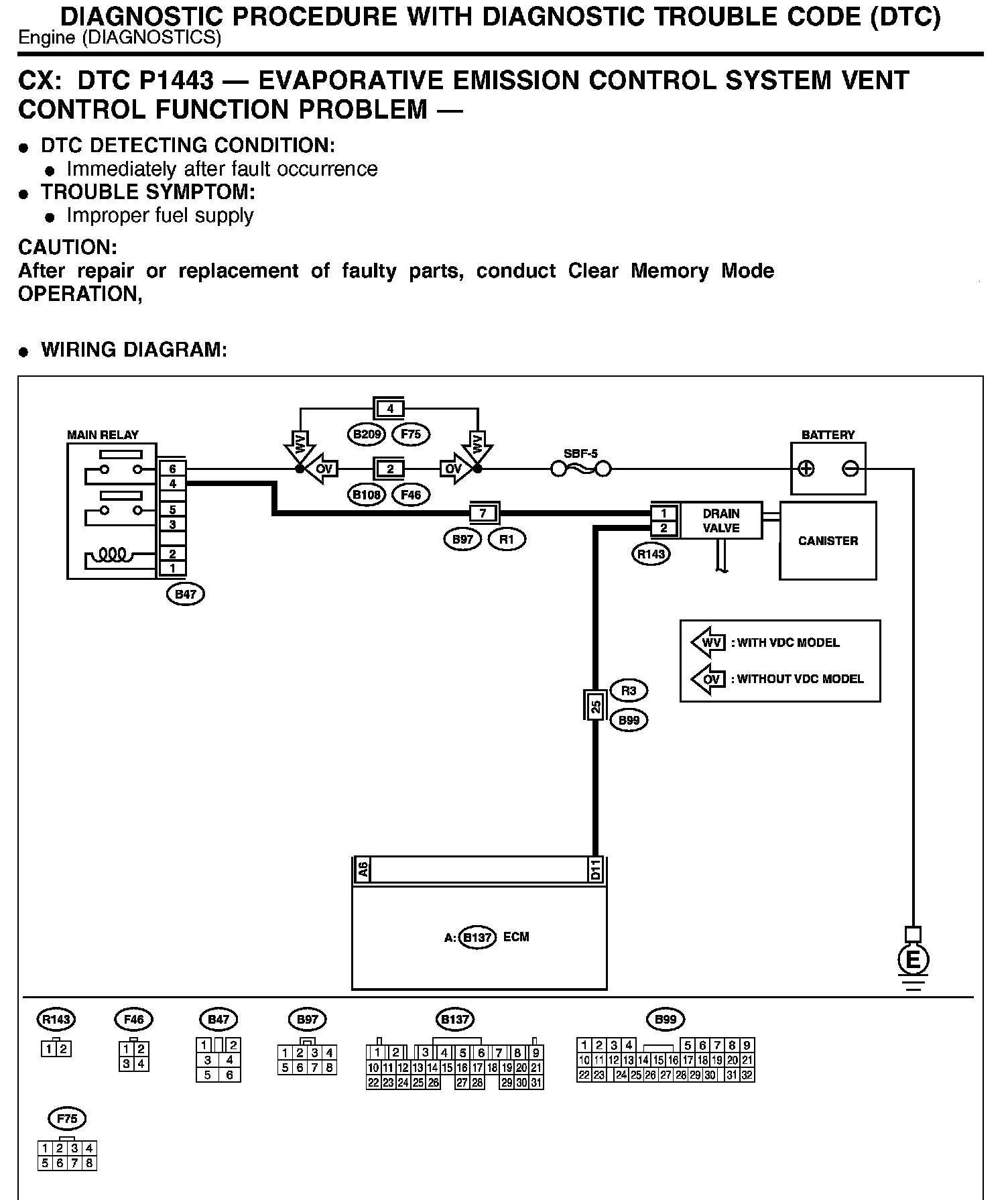

WIRING DIAGRAM
