P1400

The content of this article/image reflects the changes Identified in
TSB # 18-101-06
as of 02/13/2006
and applies to 2002 Legacy, Forester & Impreza Models

DTC P1400 - FUEL TANK PRESSURE CONTROL SOLENOID VALVE CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

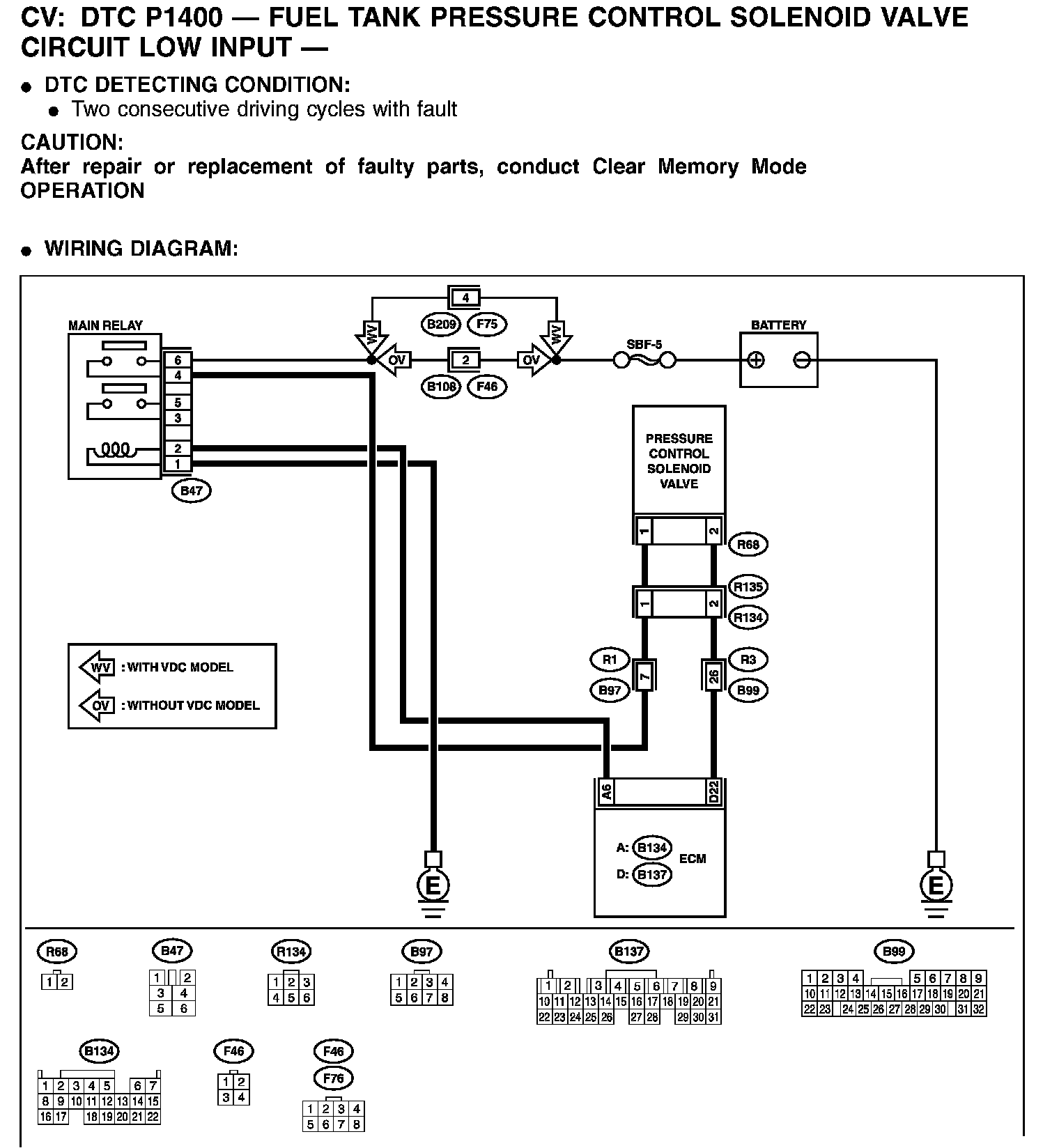

WIRING DIAGRAM
