P1153

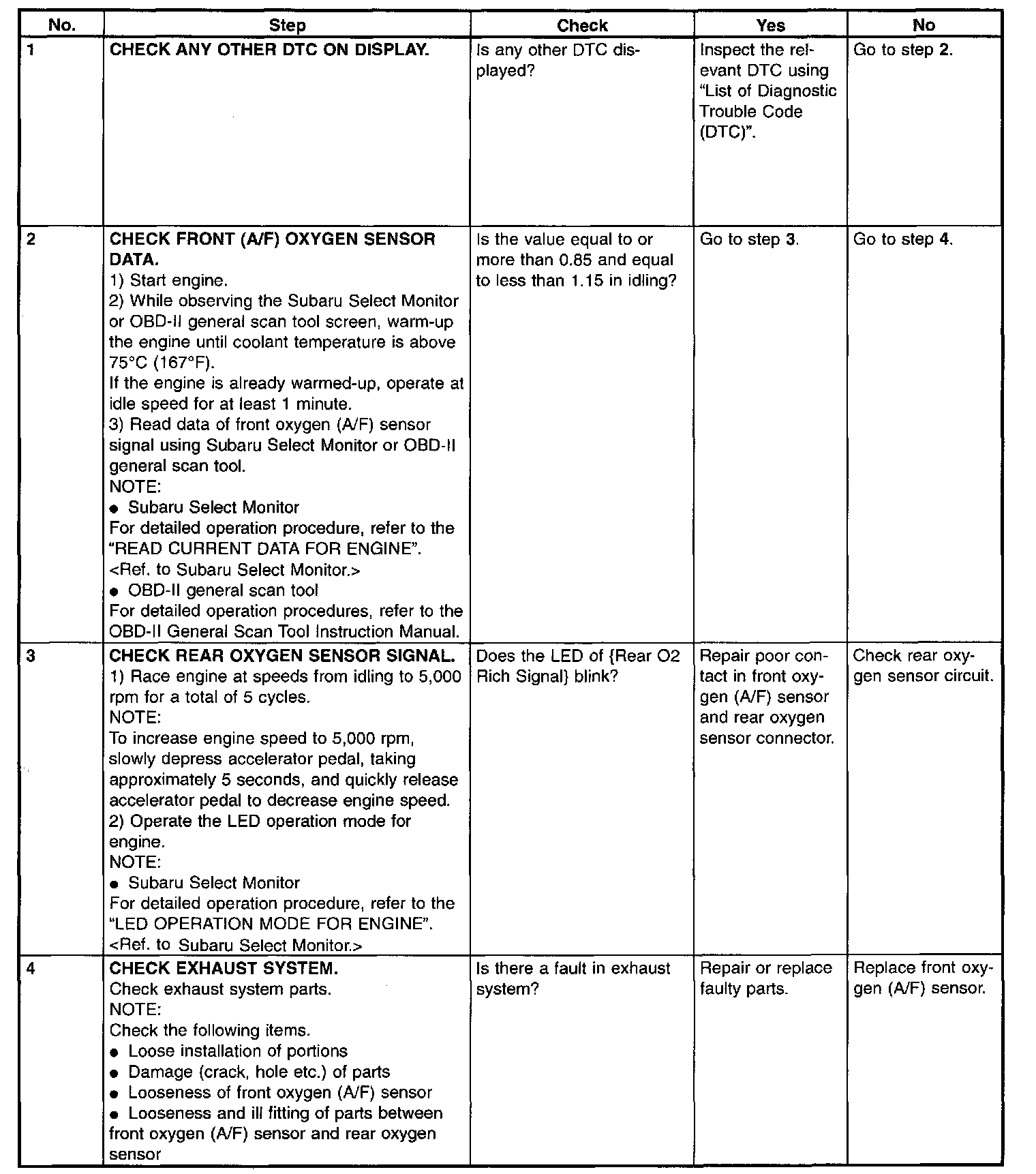

DTC P1153 - BANK #1 AND SENSOR #1 OXYGEN (A/F) SENSOR (FRONT RH) CIRCUIT RANGE/PERFORMANCE PROBLEM (HIGH INPUT)DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

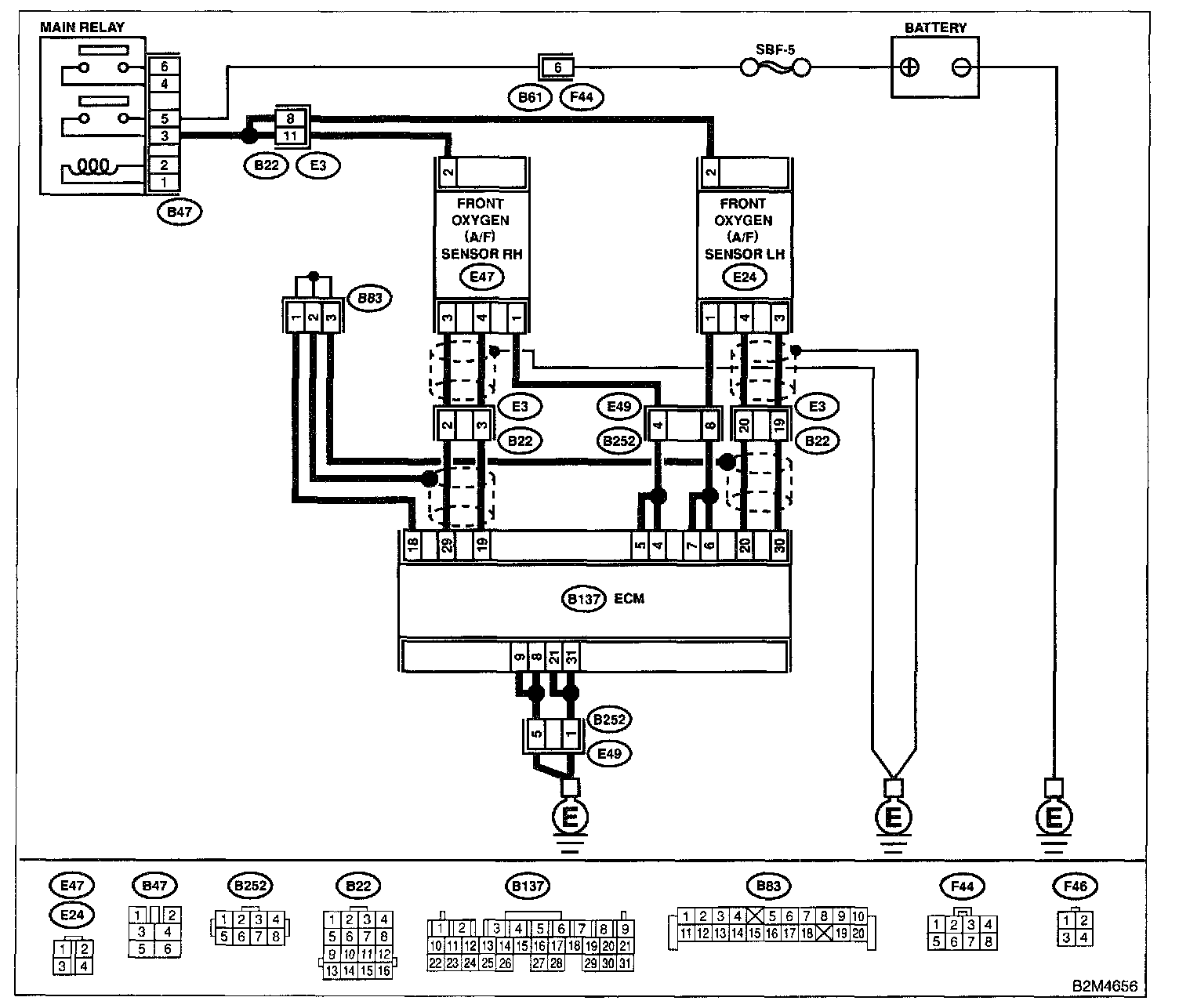

Wiring Diagram:
WIRING DIAGRAM
