P0703

DTC P0703 - BRAKE SWITCH INPUT MALFUNCTION

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

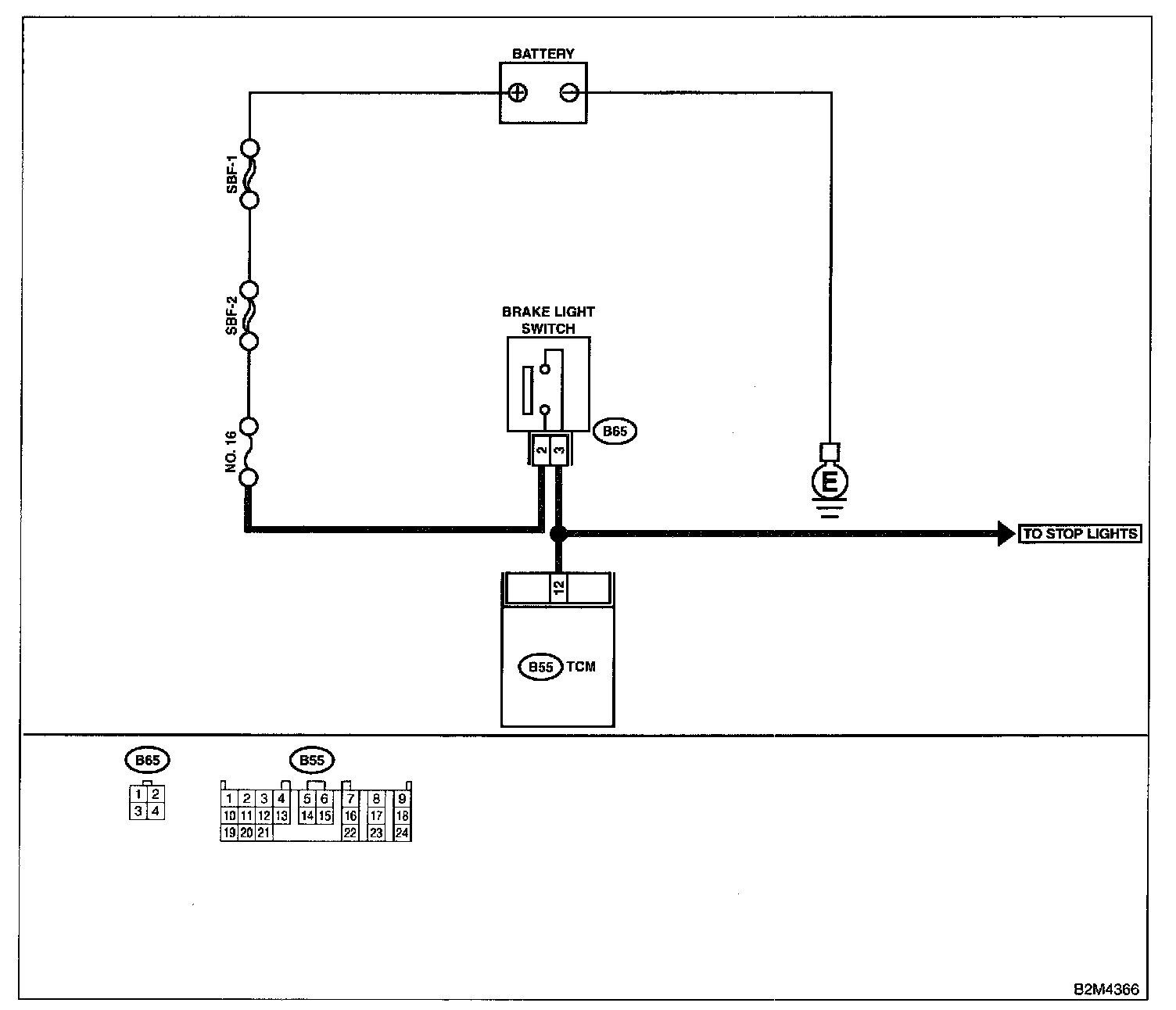

Wiring Diagram:

WIRING DIAGRAM

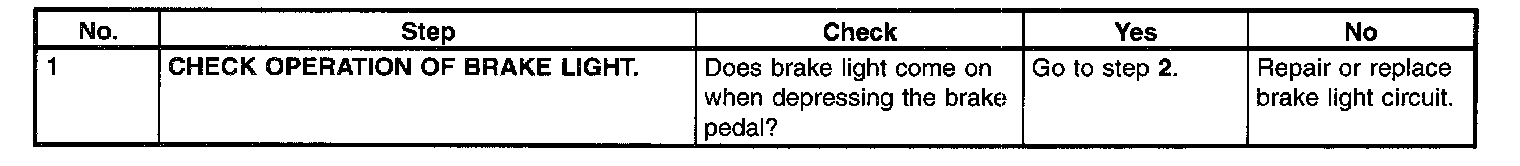

Step 1:

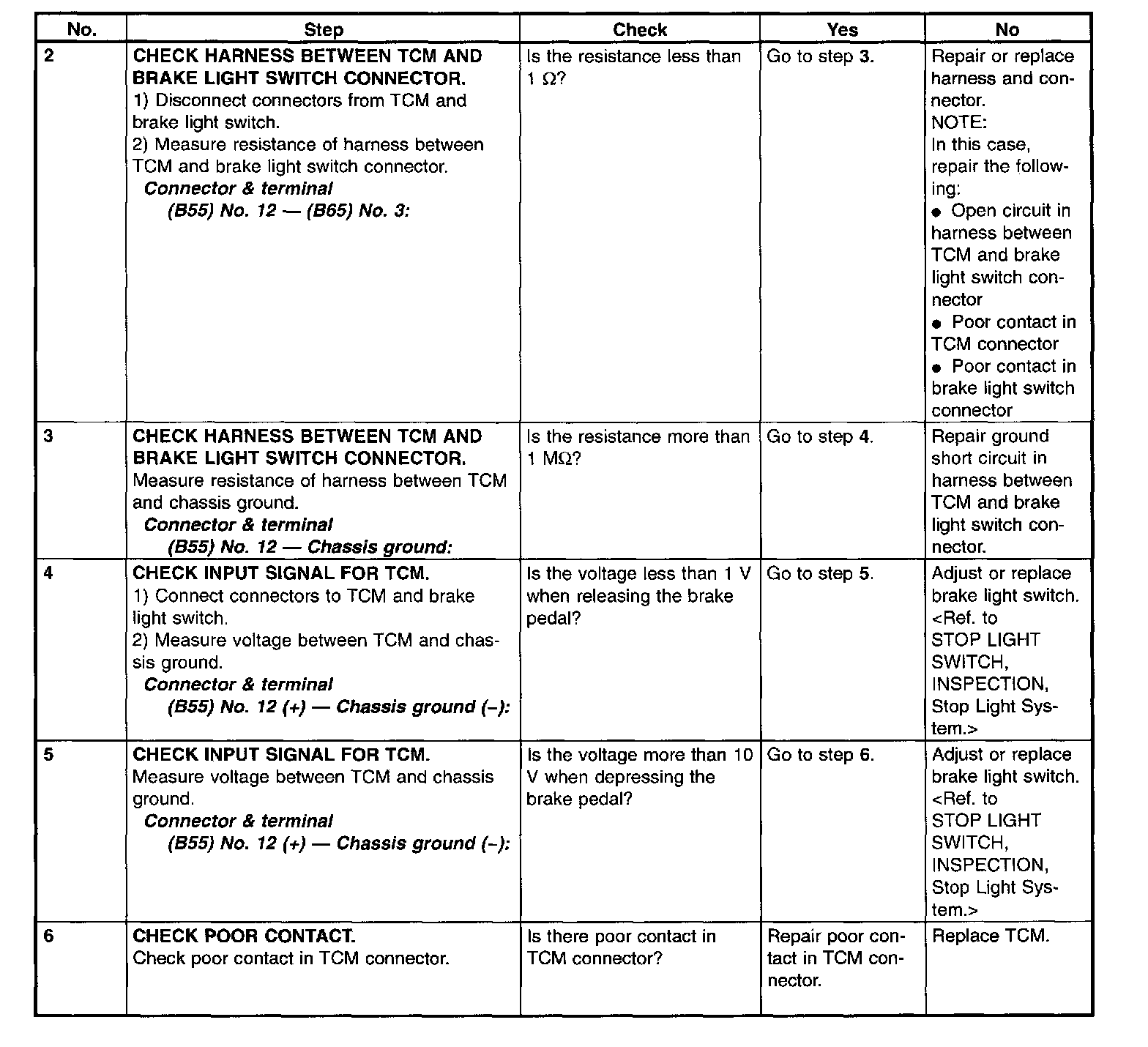

Step 2 - 6:
