P0125
DTC P0125 - INSUFFICIENT COOLANT TEMPERATURE FOR CLOSED LOOP FUEL CONTROLDTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
TROUBLE, SYMPTOM:
- Engine does not return to idle.
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

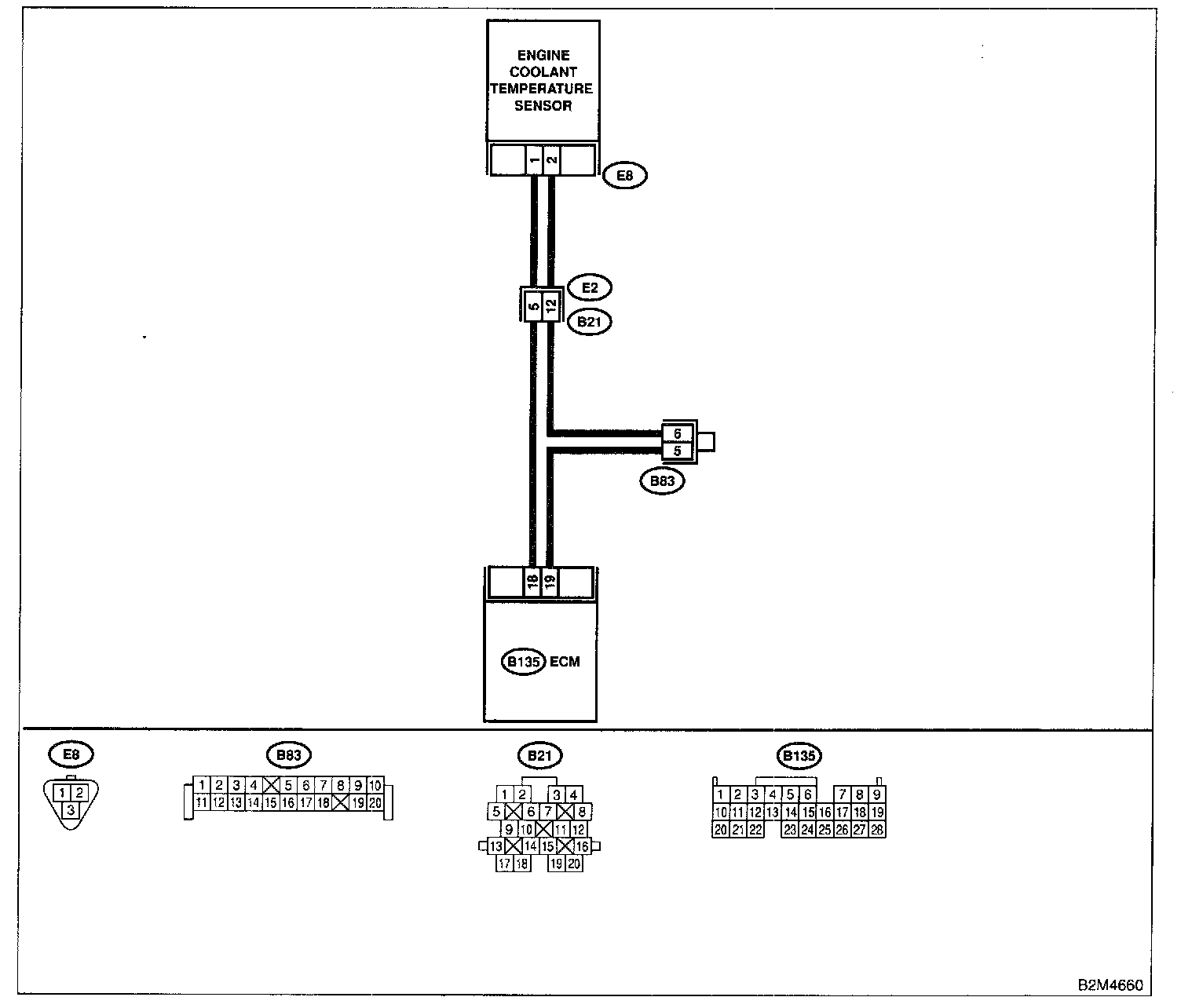

Wiring Diagram:
WIRING DIAGRAM
