P0037

DTC P0037 - BANK #1 AND SENSOR #2 OXYGEN SENSOR (REAR) HEATER CIRCUIT LOW INPUT

DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

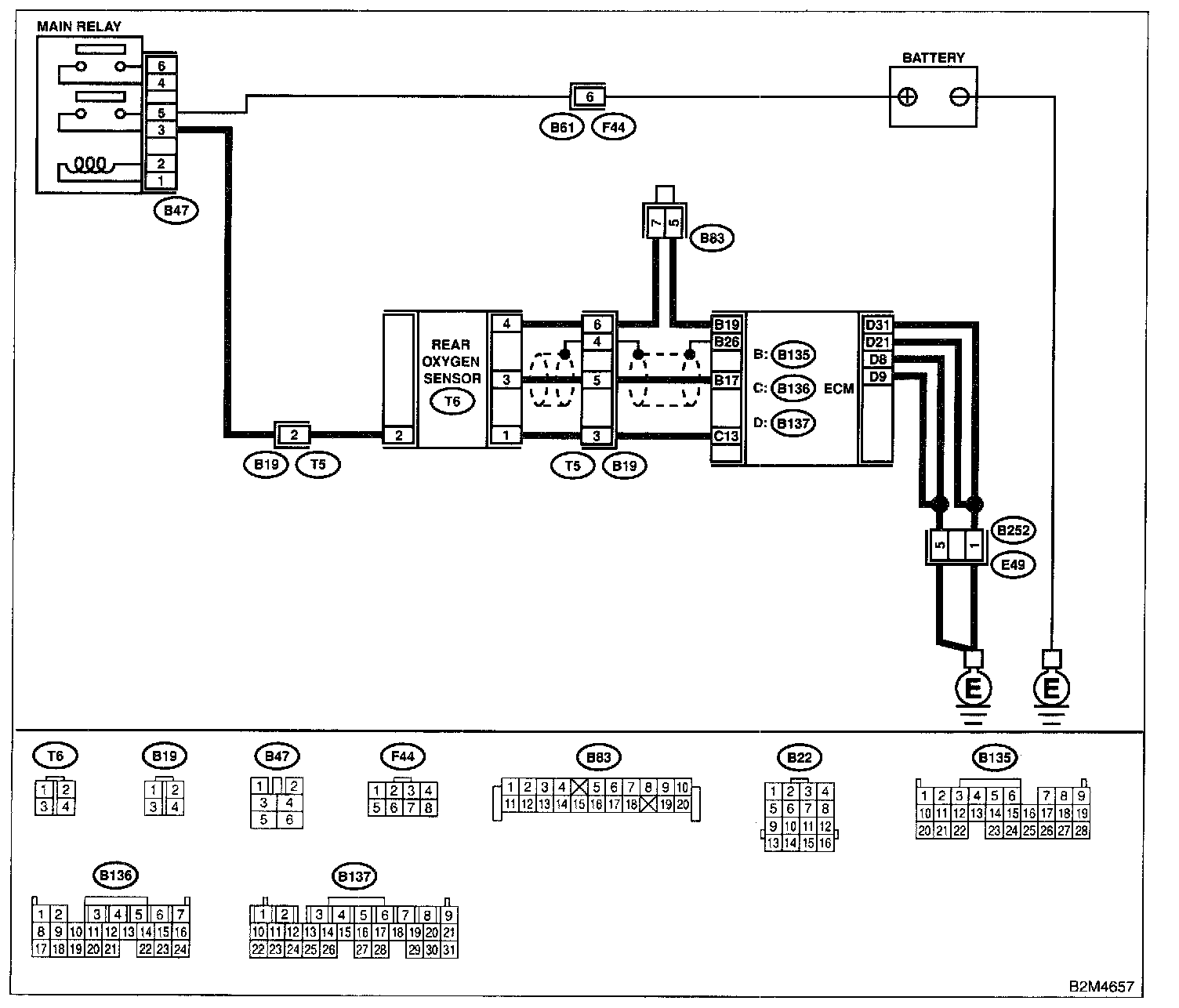

Wiring Diagram:

WIRING DIAGRAM

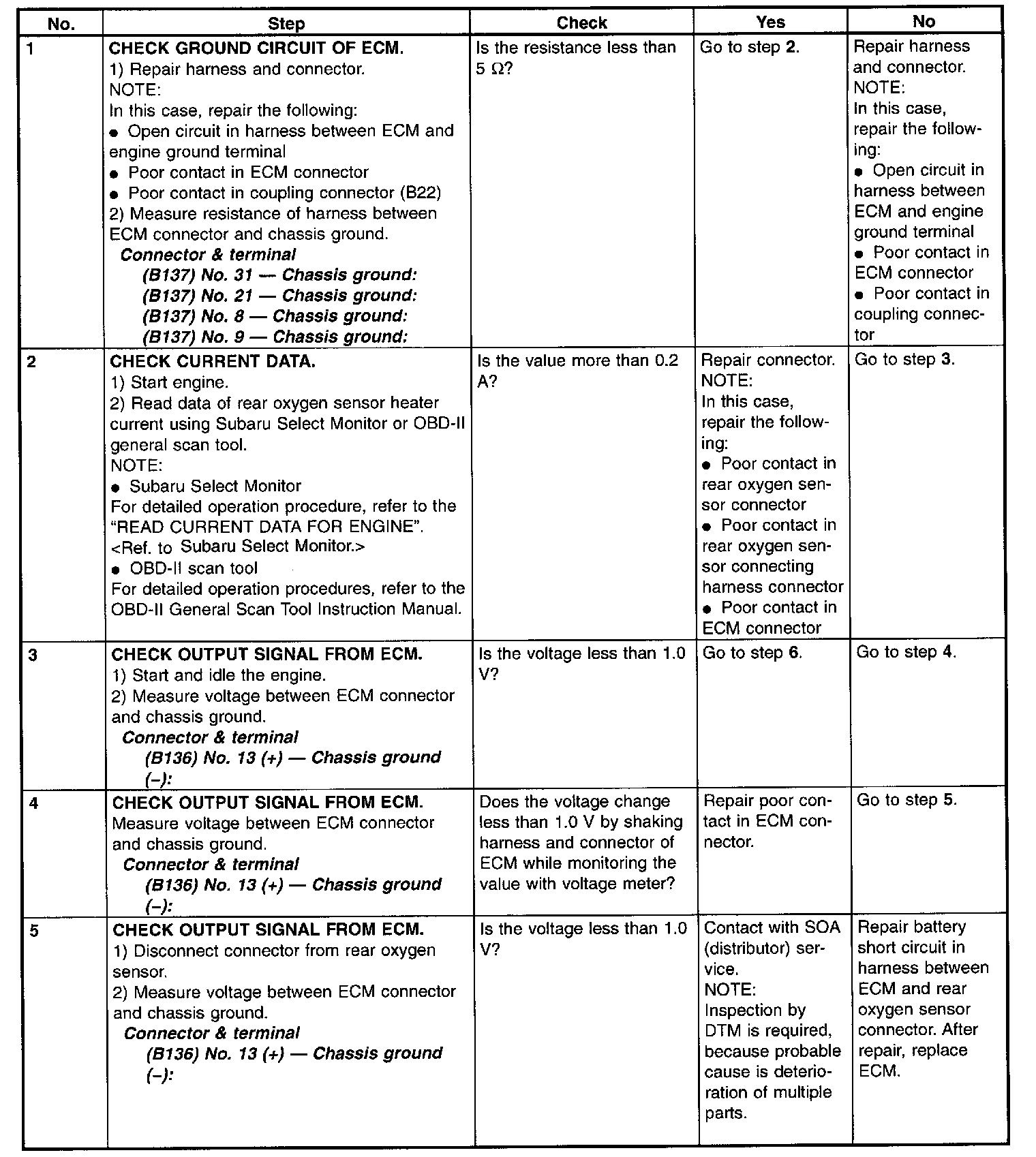

Step 1 - 5:

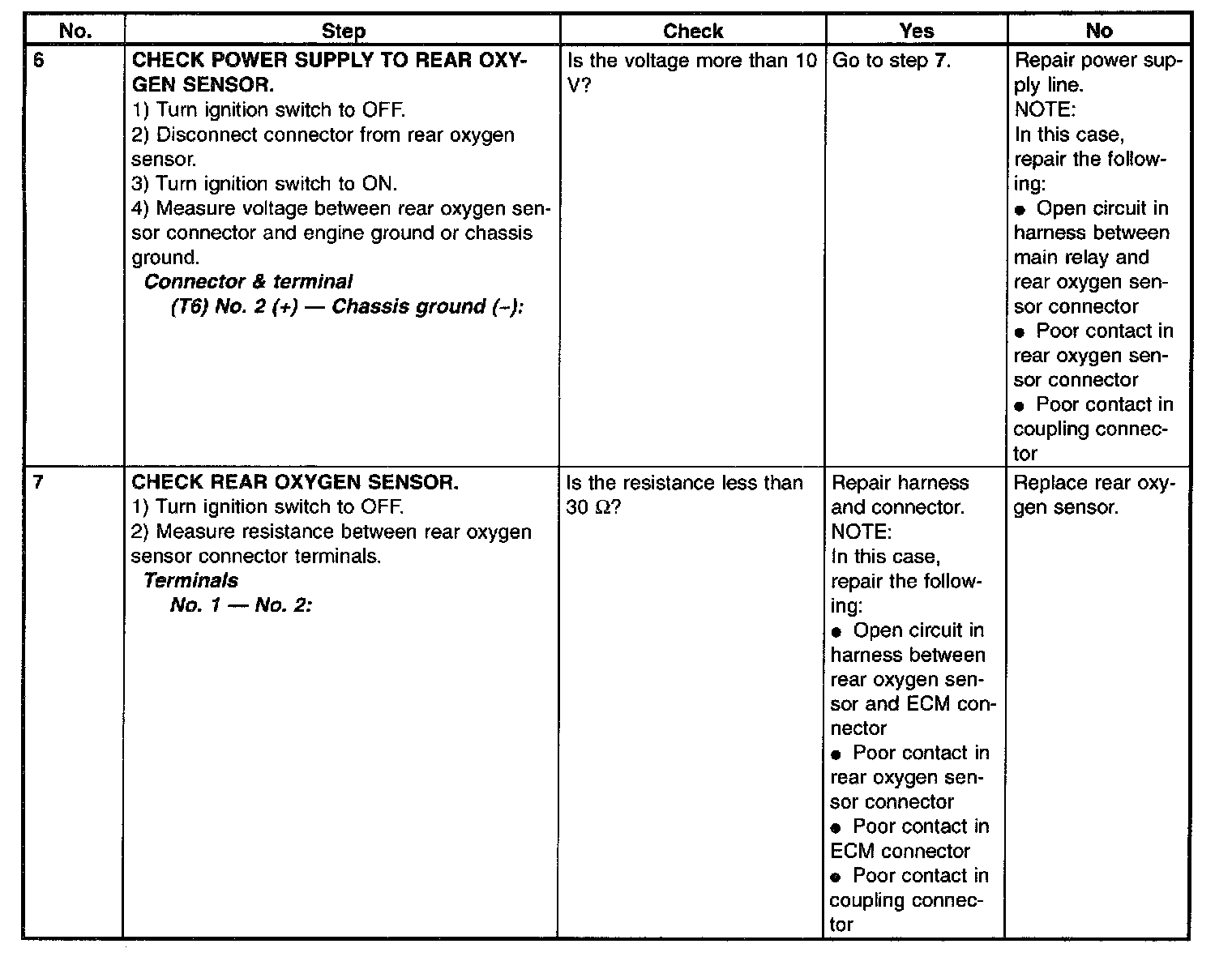

Step 6 - 7:
