DTC 93
DTC 93 REAR VEHICLE SPEED SENSORDIAGNOSIS: Input signal circuit of TCM is open or shorted.
TROUBLE SYMPTOM: No lock-up or excessive tight corner "braking".

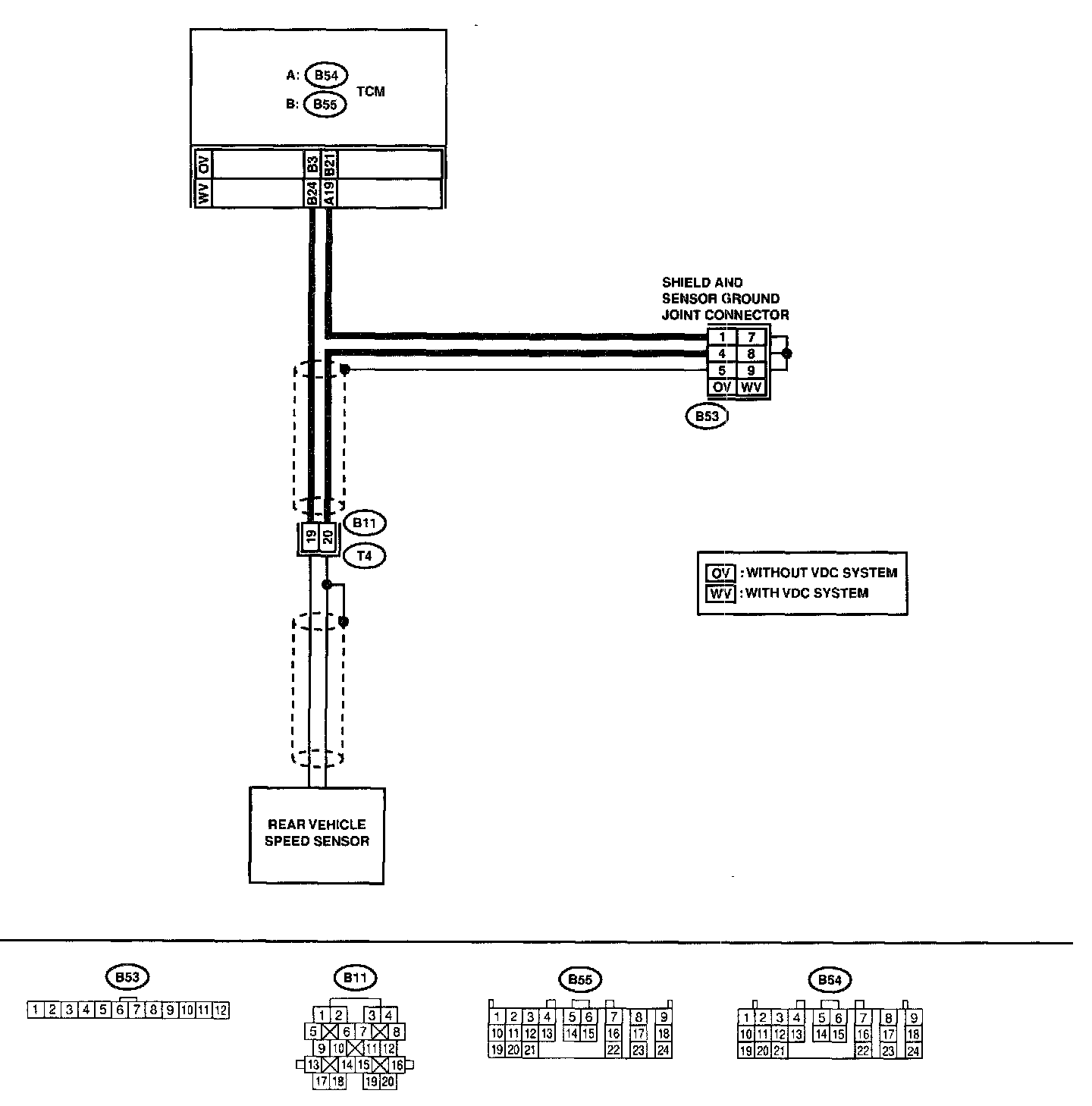

WIRING DIAGRAM:

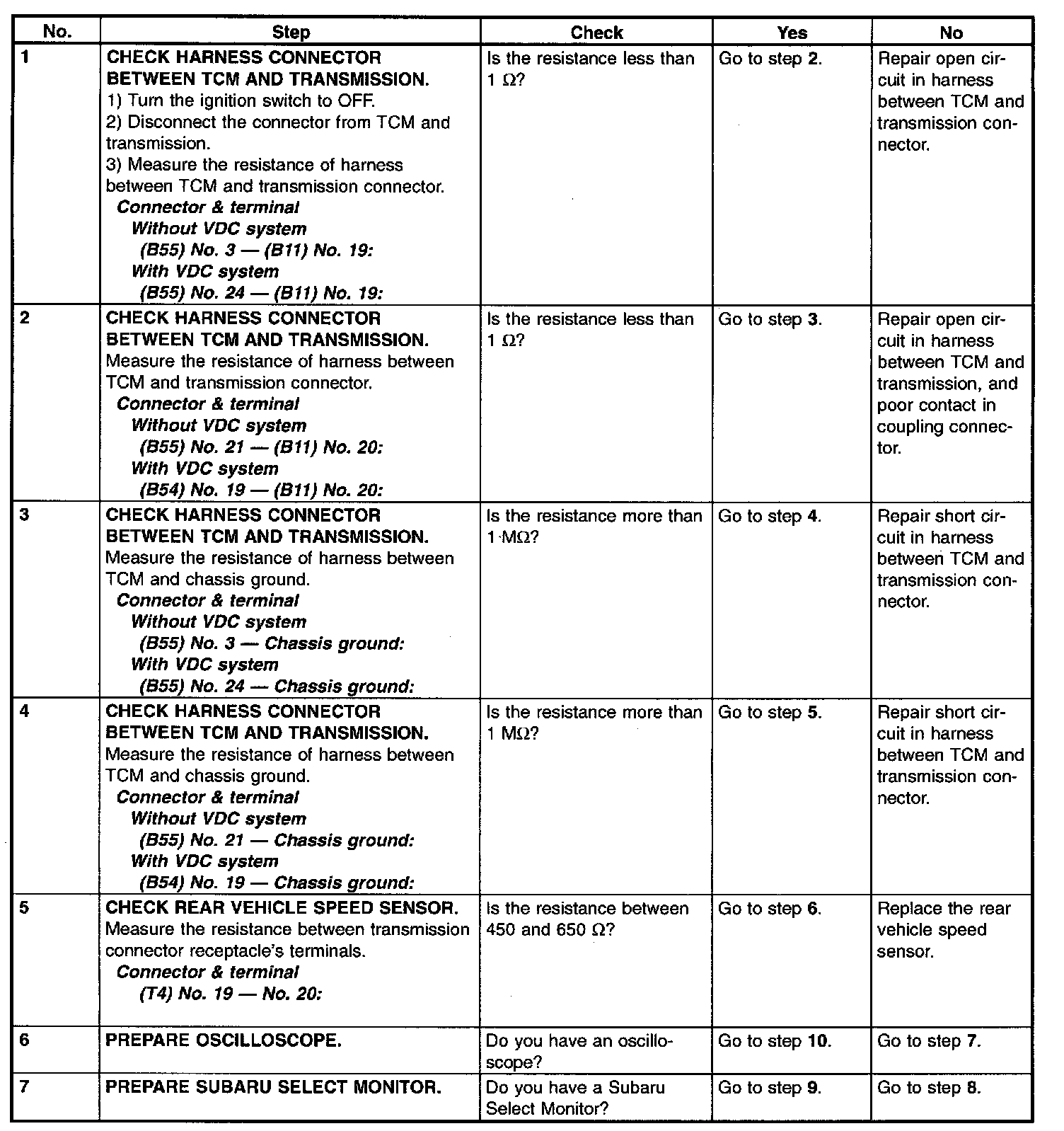

Test Step 1 through 7

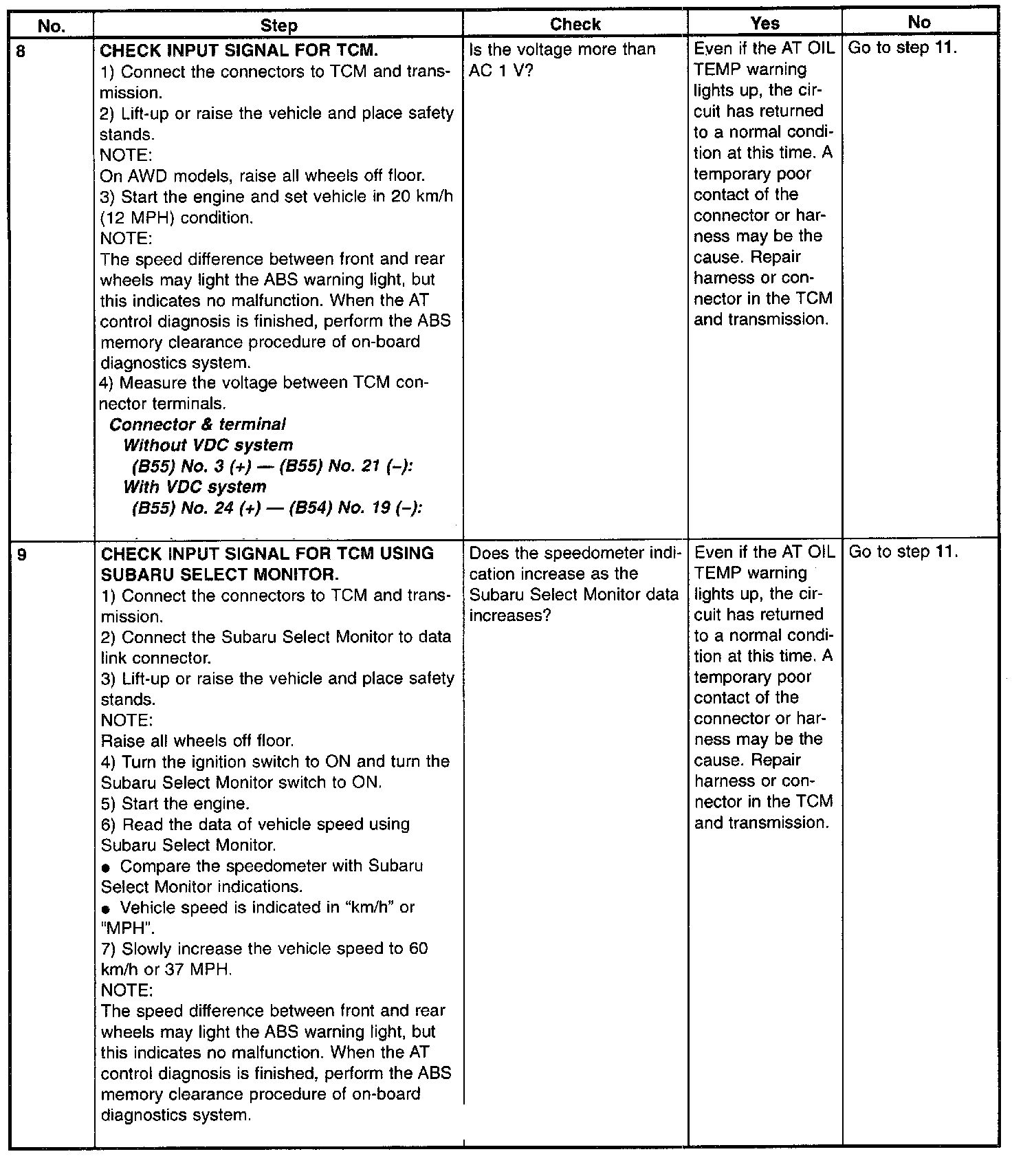

Test Step 8 and 9

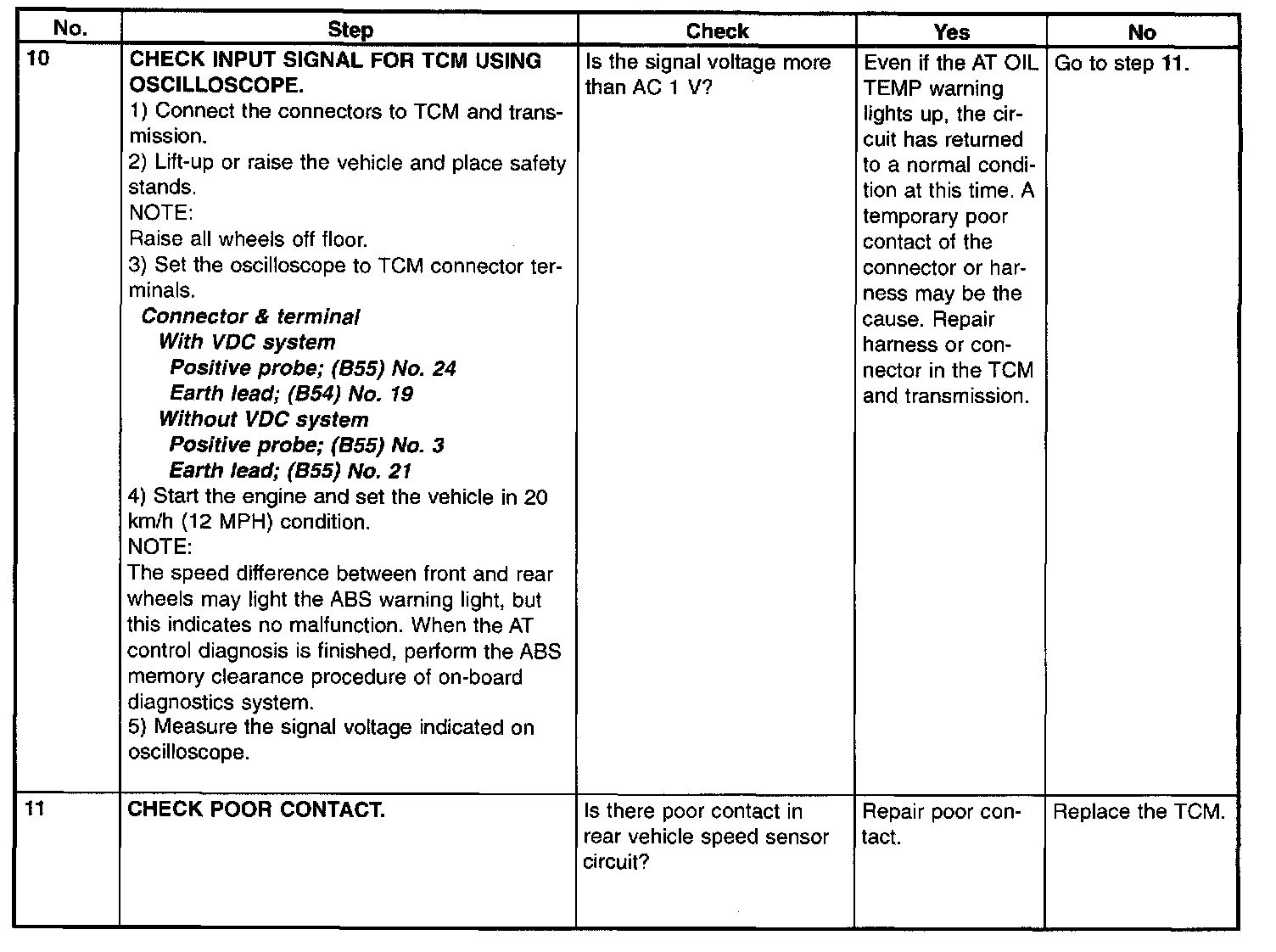

Test Step 10 and 11
DIAGNOSIS: Input signal circuit of TCM is open or shorted.
TROUBLE SYMPTOM: No lock-up or excessive tight corner "braking".
WIRING DIAGRAM:
Test Step 1 through 7
Test Step 8 and 9
Test Step 10 and 11
