Transmission Control Systems

DTC 76 2-4 BRAKE DUTY SOLENOID
DIAGNOSIS: Output signal circuit of 2-4 brake duty solenoid is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.





WIRING DIAGRAM:

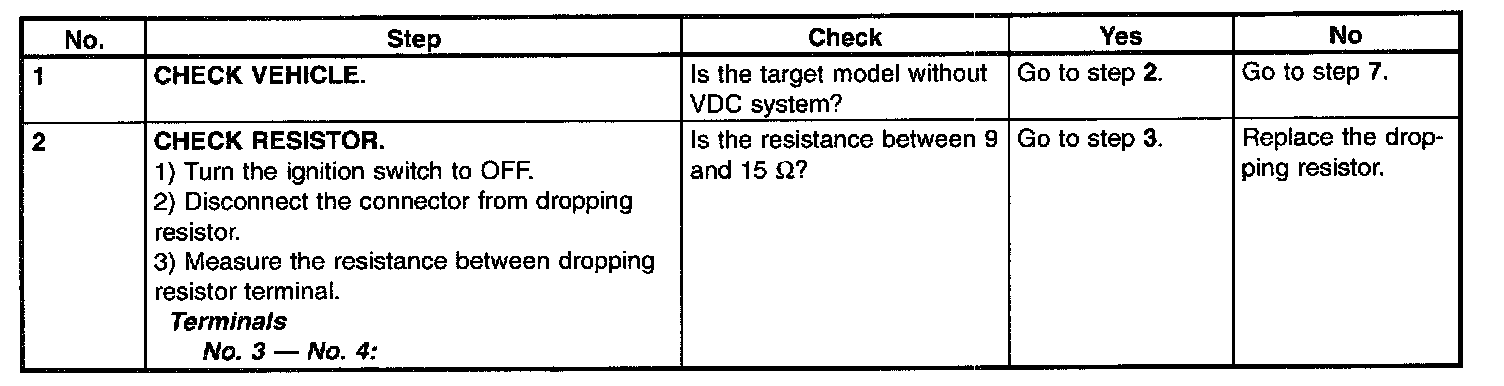

Test Step 1 and 2

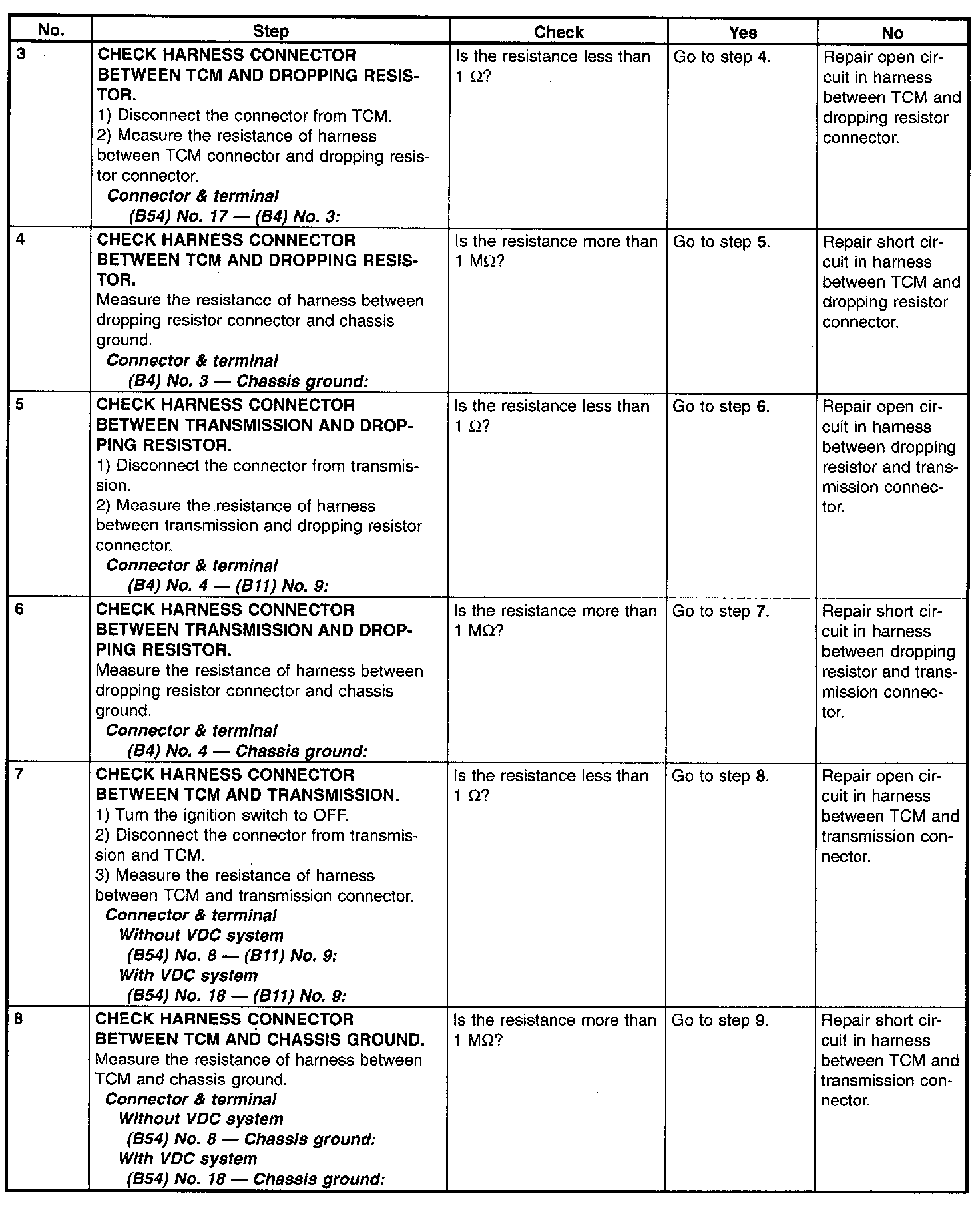

Test Step 3 through 8

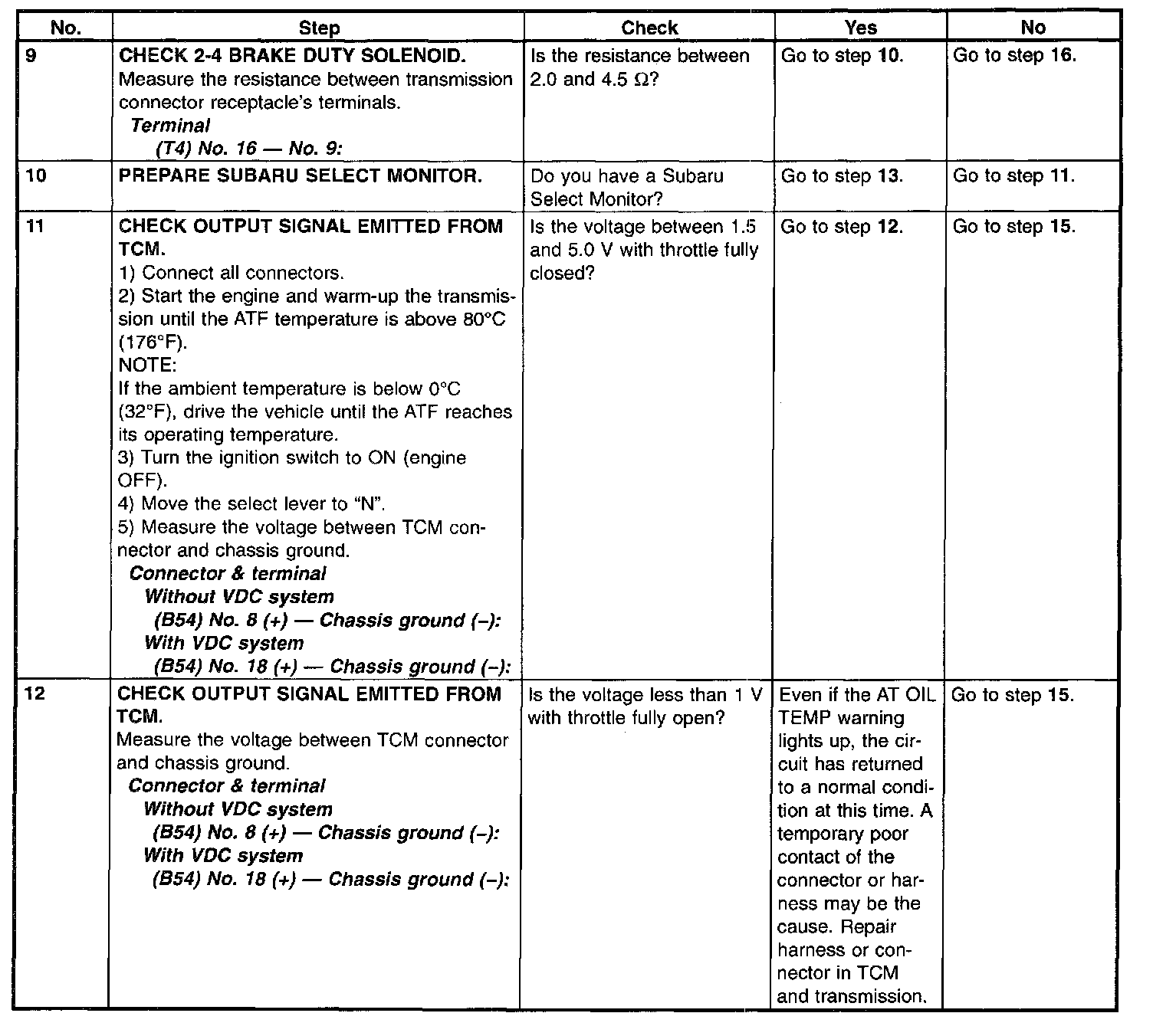

Test Step 9 through 12





Test Step 13 through 16

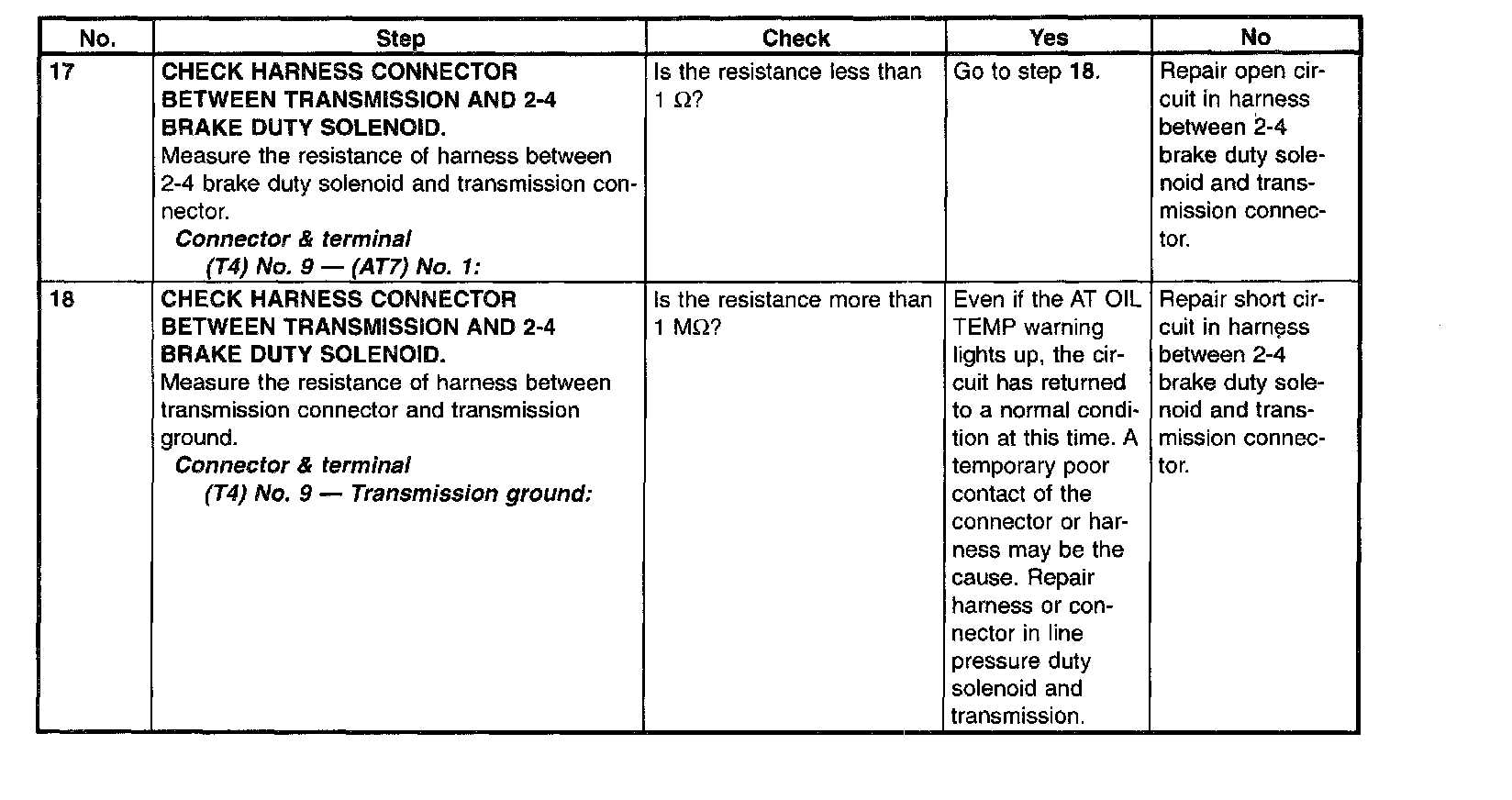

Test Step 17 and 18
