DTC 75

DTC 75 LINE PRESSURE DUTY SOLENOID
DIAGNOSIS: Output signal circuit of line pressure duty solenoid is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.

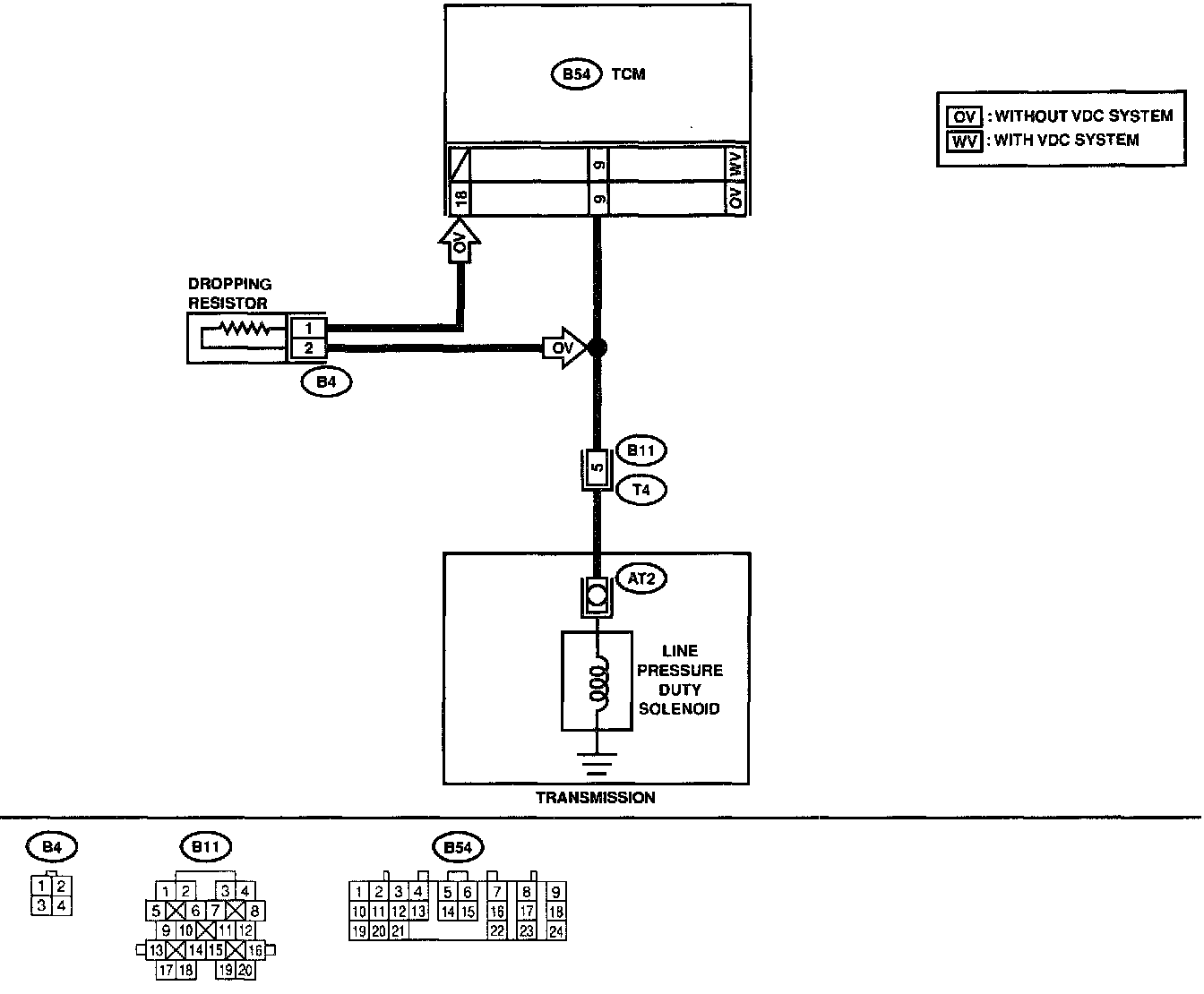

WIRING DIAGRAM:

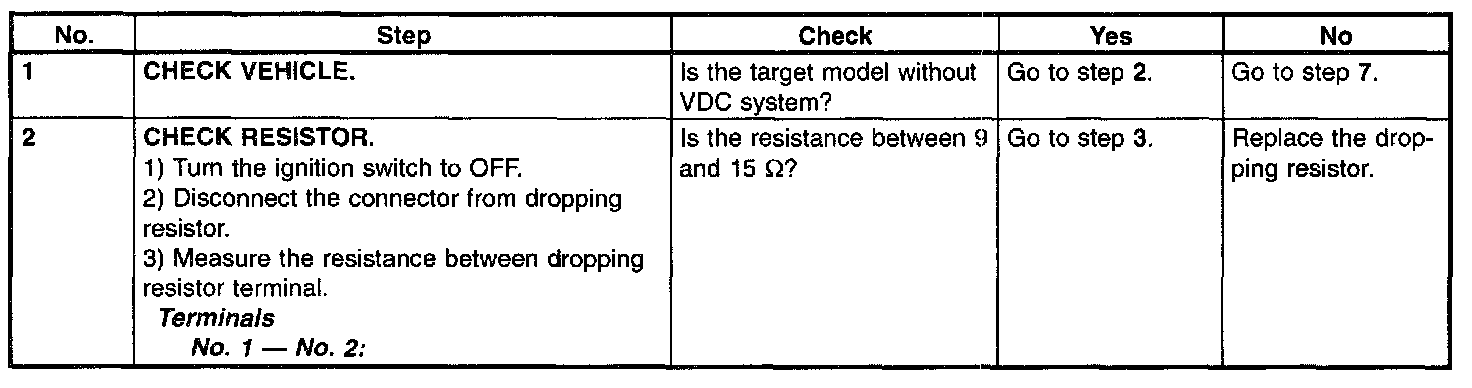

Test Steps 1 and 2





Test Steps 3 through 10





Test Steps 11 through 13

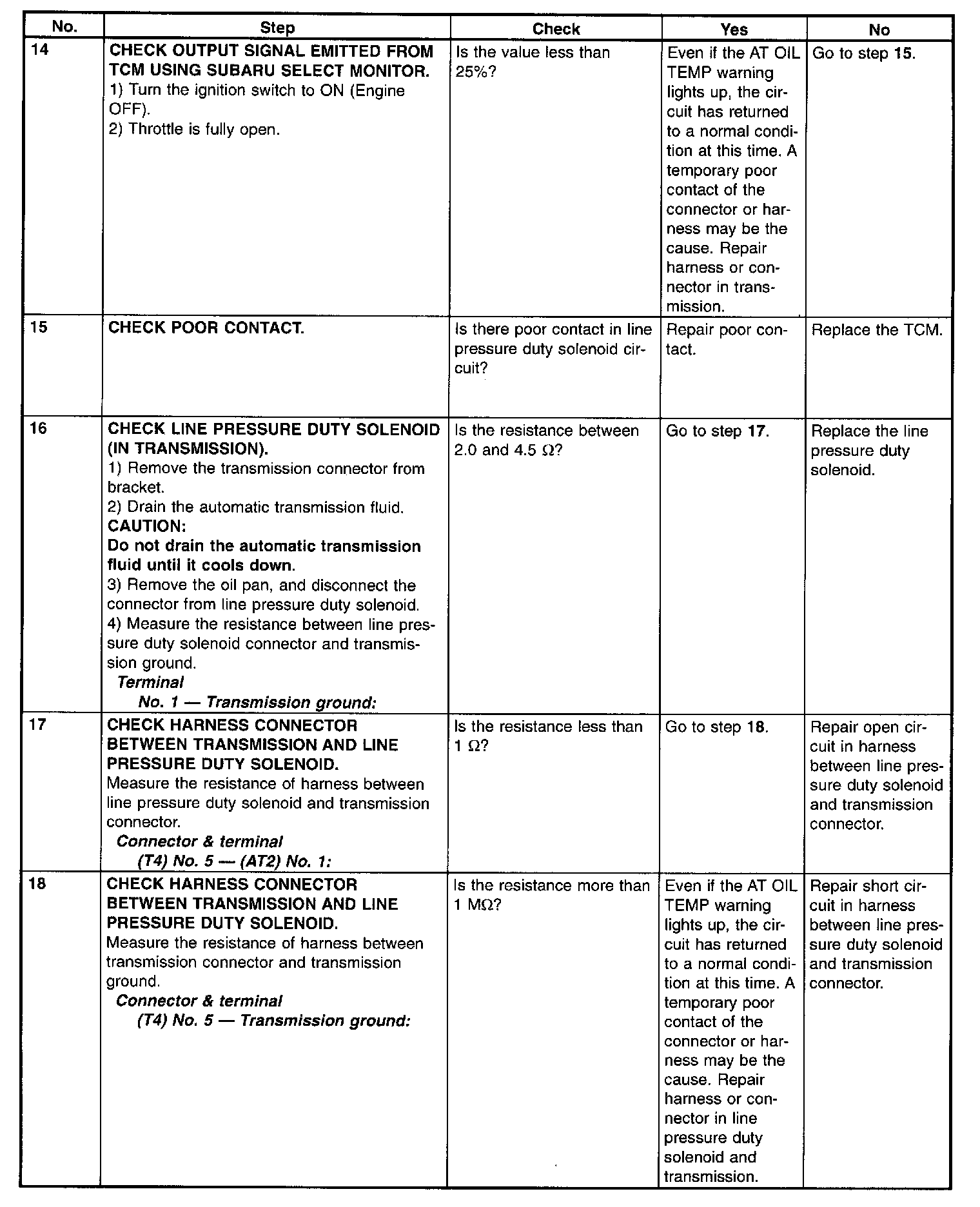

Test Steps 14 through 18
