Vdc System Trouble Code Charts For Warning Light Codes
TROUBLE CODE 74 ABNORMAL PRESSURE SENSORDIAGNOSIS:
- Faulty pressure sensor
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

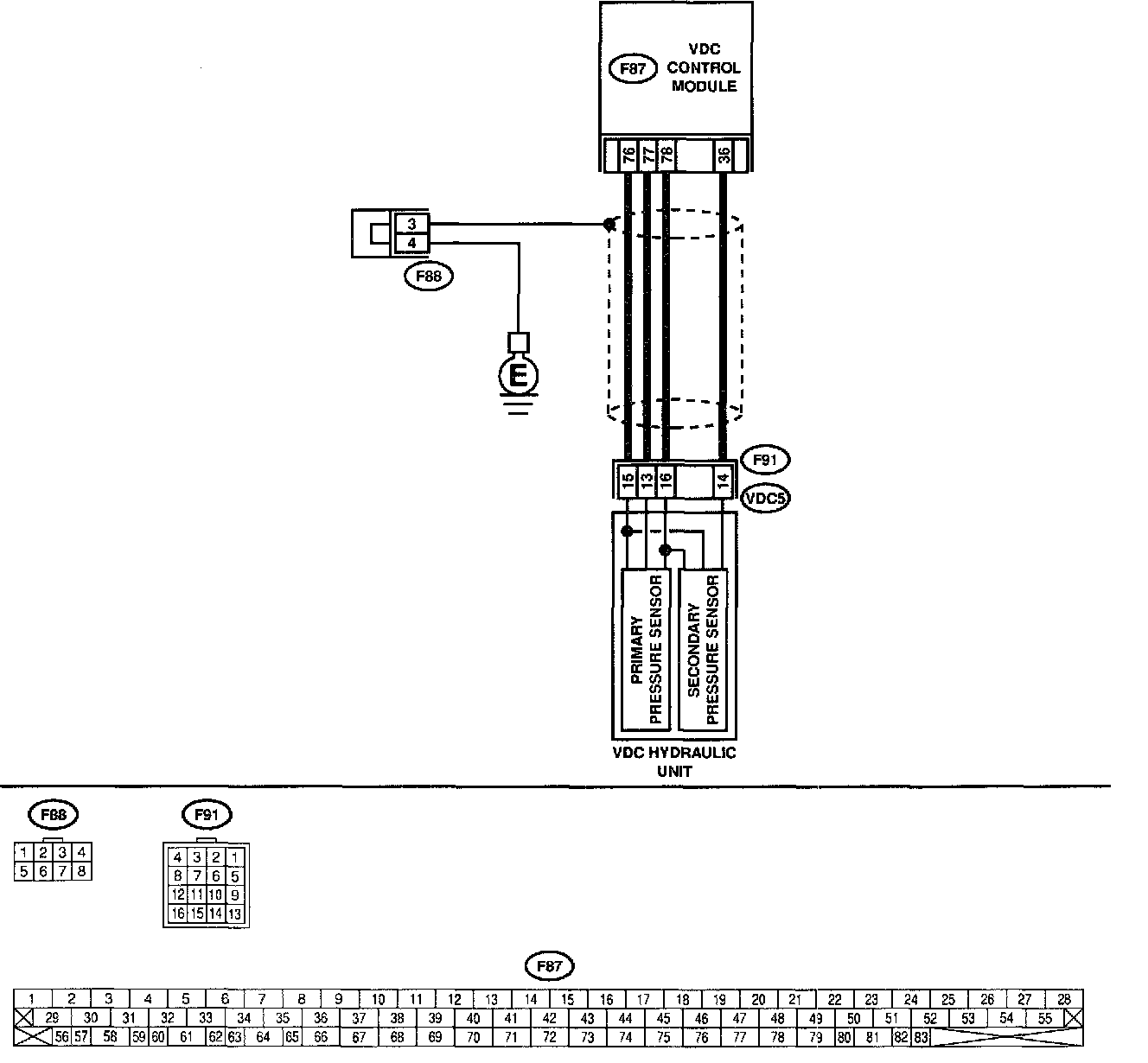

WIRING DIAGRAM:
PROCEDURE:

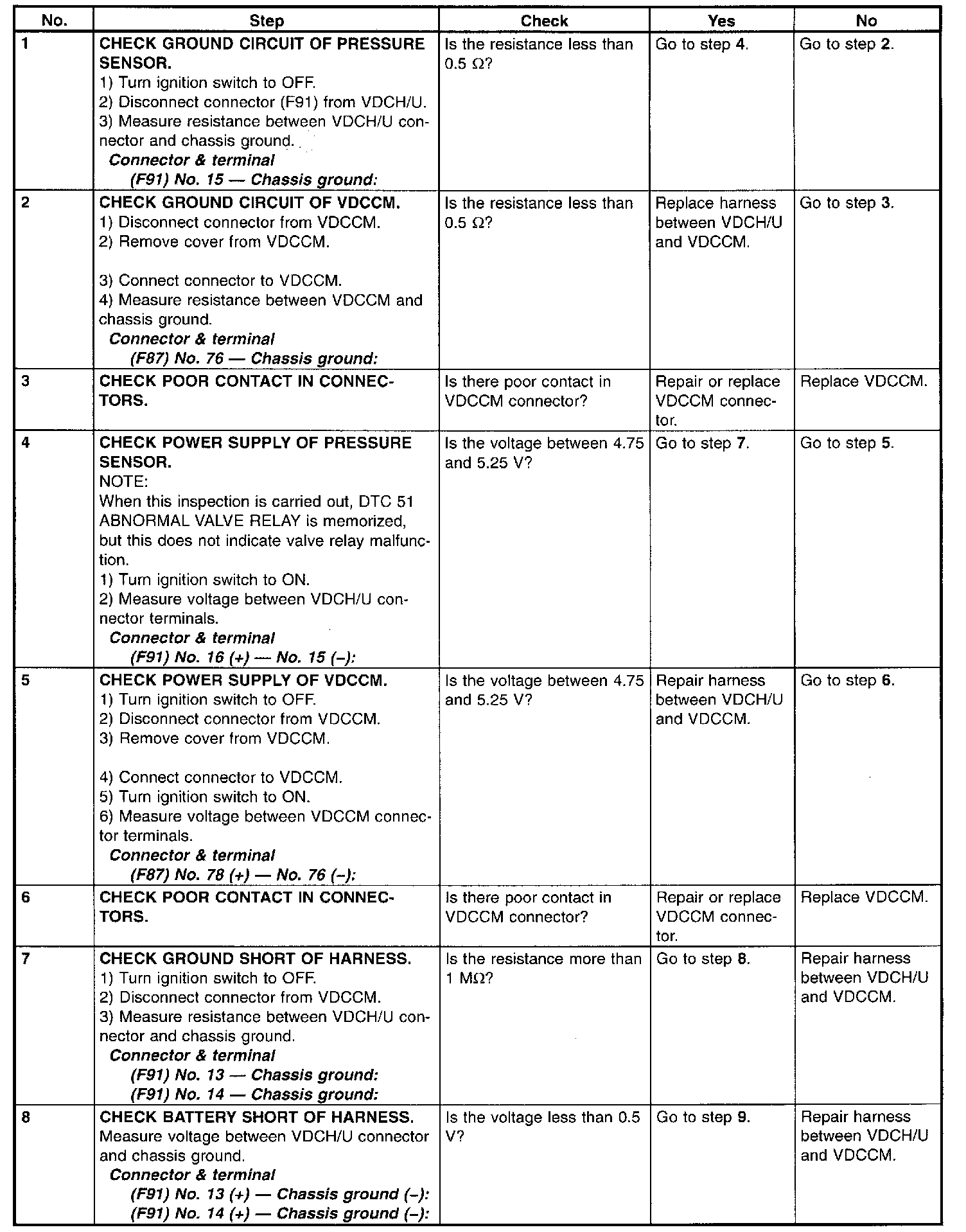

No. 1 - 8

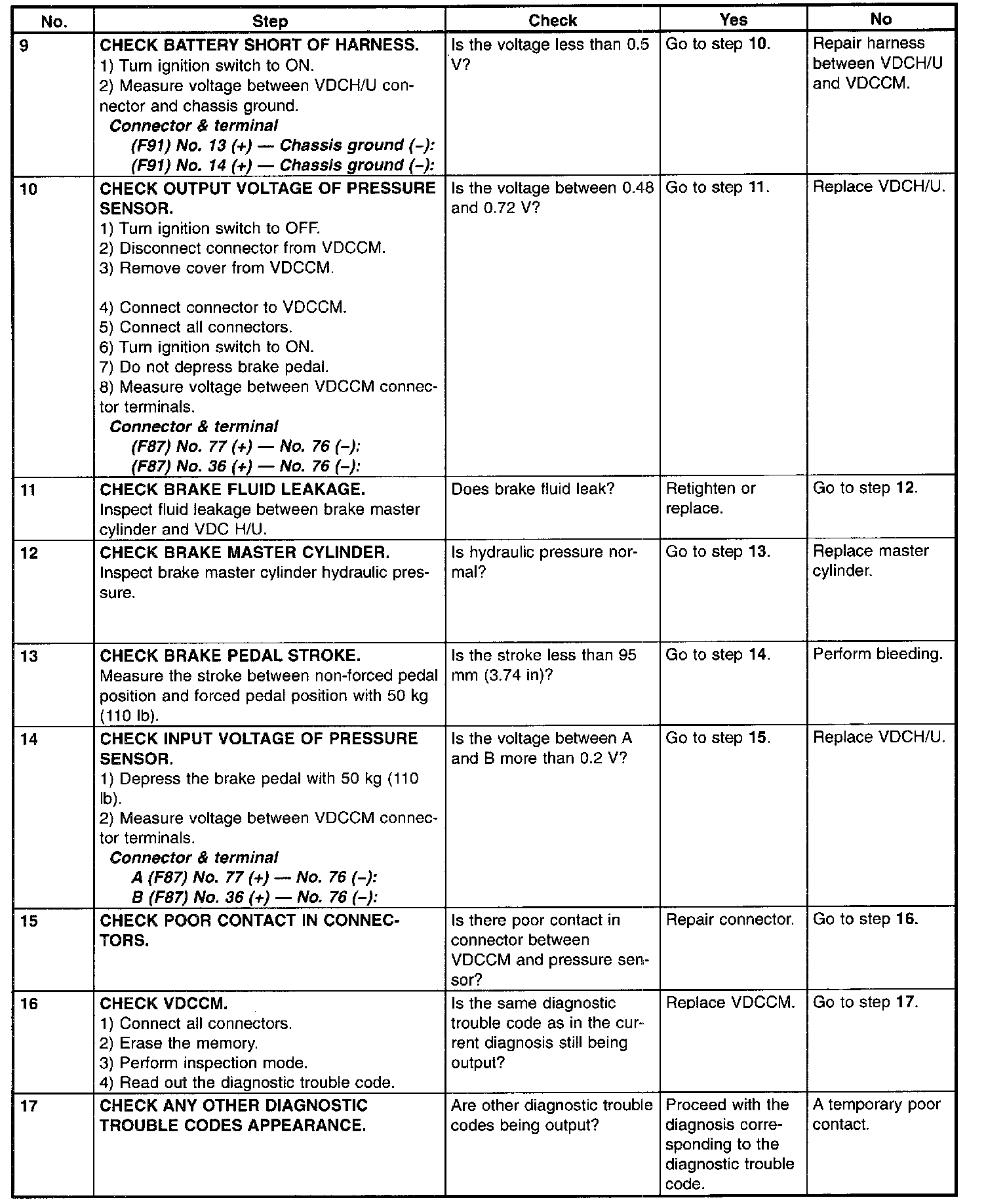

No. 9 - 17
DIAGNOSIS:
- Faulty pressure sensor
TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.
WIRING DIAGRAM:
PROCEDURE:
No. 1 - 8
No. 9 - 17
