Differential Pressure of Pressure Sensor Is Too Big

TROUBLE CODE 74 DIFFERENTIAL PRESSURE OF PRESSURE SENSOR IS TOO BIG.

DIAGNOSIS:
- Faulty pressure sensor

TROUBLE SYMPTOM:
- ABS does not operate.
- VDC does not operate.

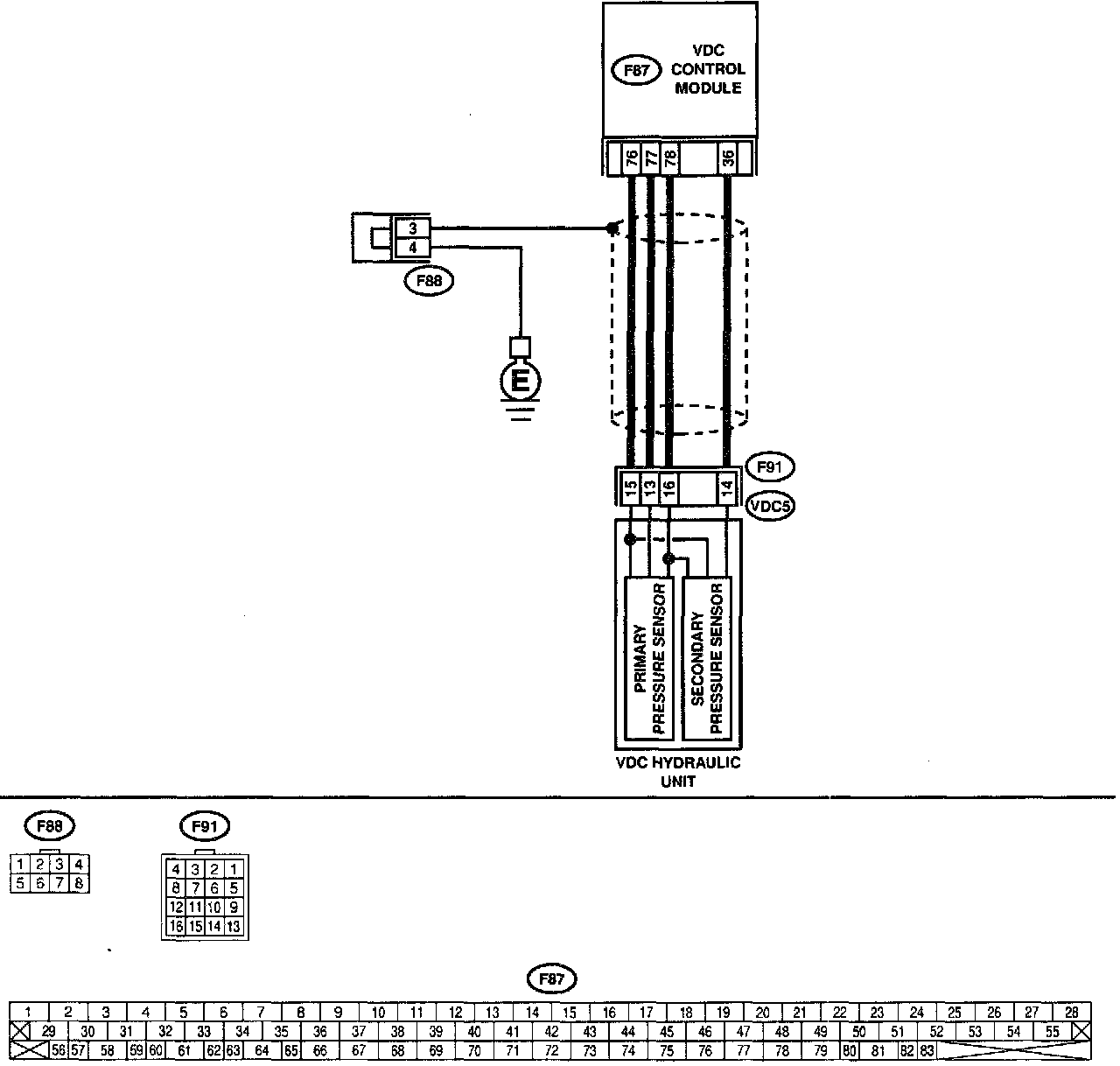

WIRING DIAGRAM:

PROCEDURE:





No. 1 - 8

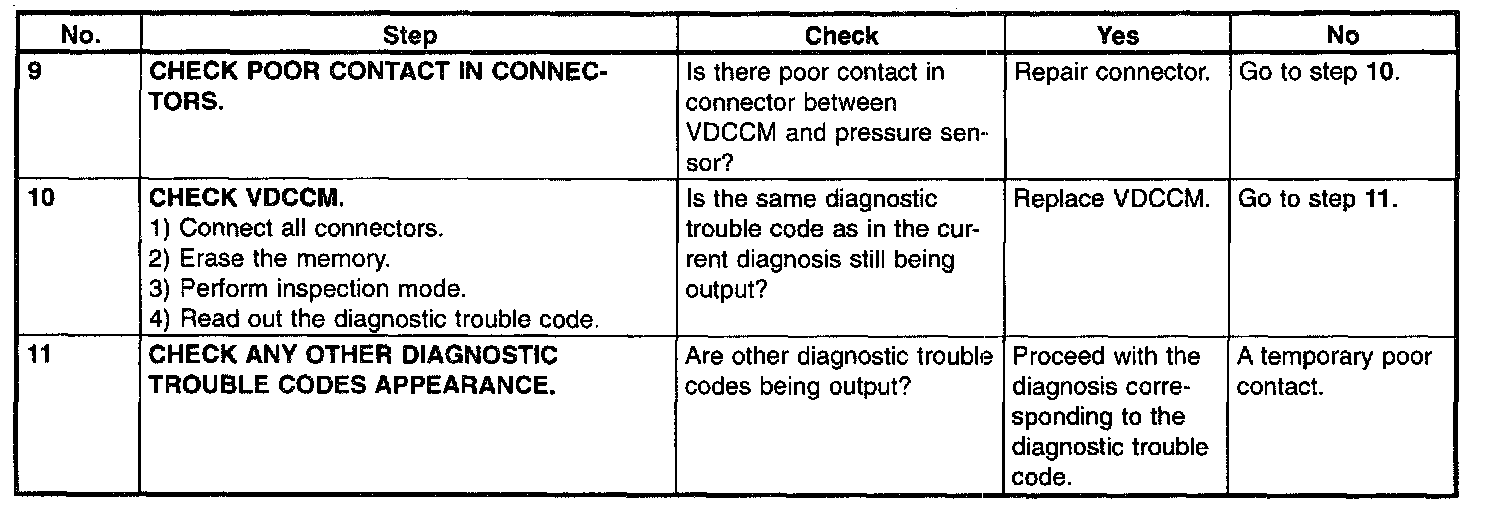

No. 9 - 11
