Transmission Control Systems

DTC 74 2-4 BRAKE TIMING SOLENOID
DIAGNOSIS: Output signal circuit of 2-4 brake timing solenoid is open or shorted.
TROUBLE SYMPTOM: Excessive shift shock.

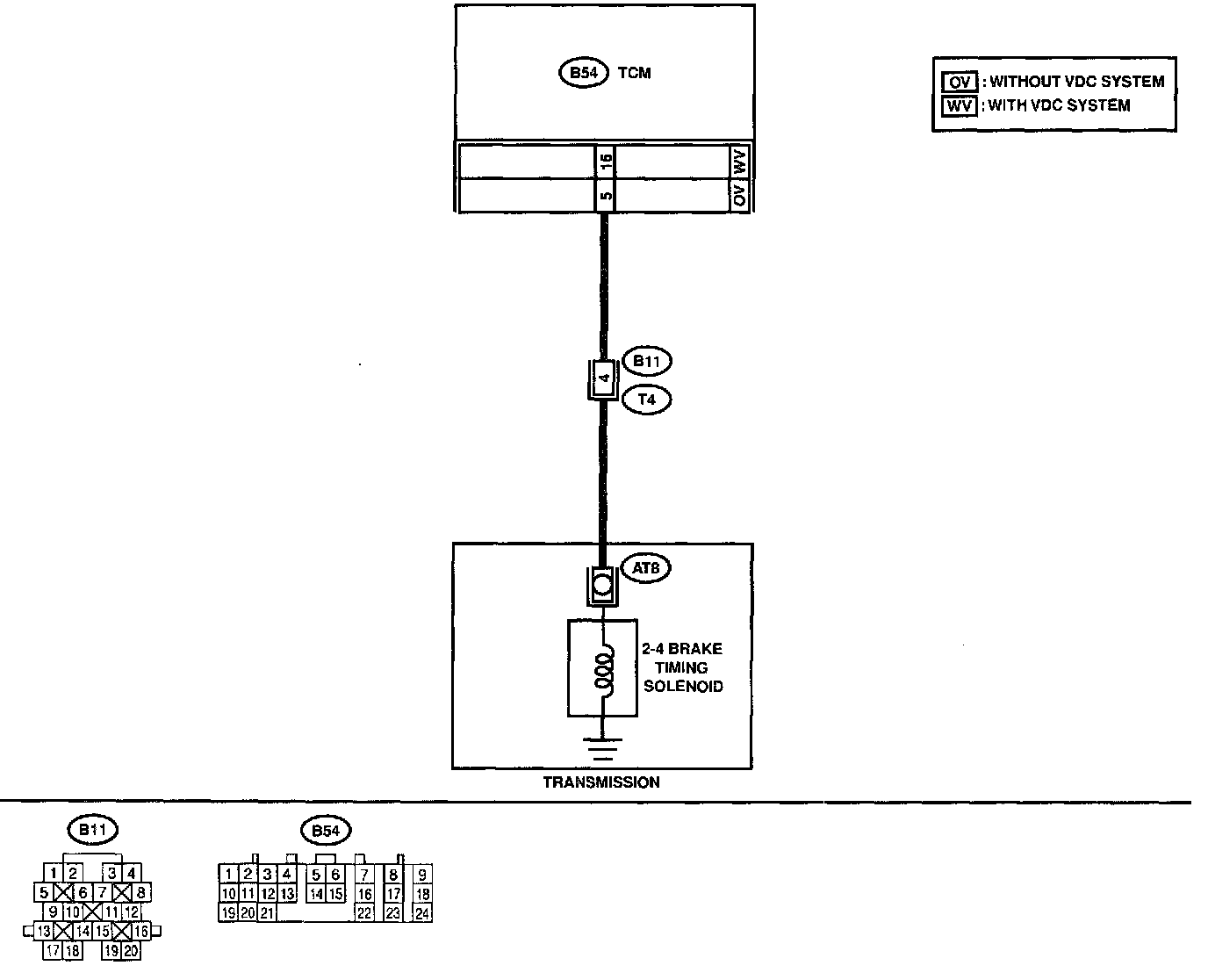

WIRING DIAGRAM:

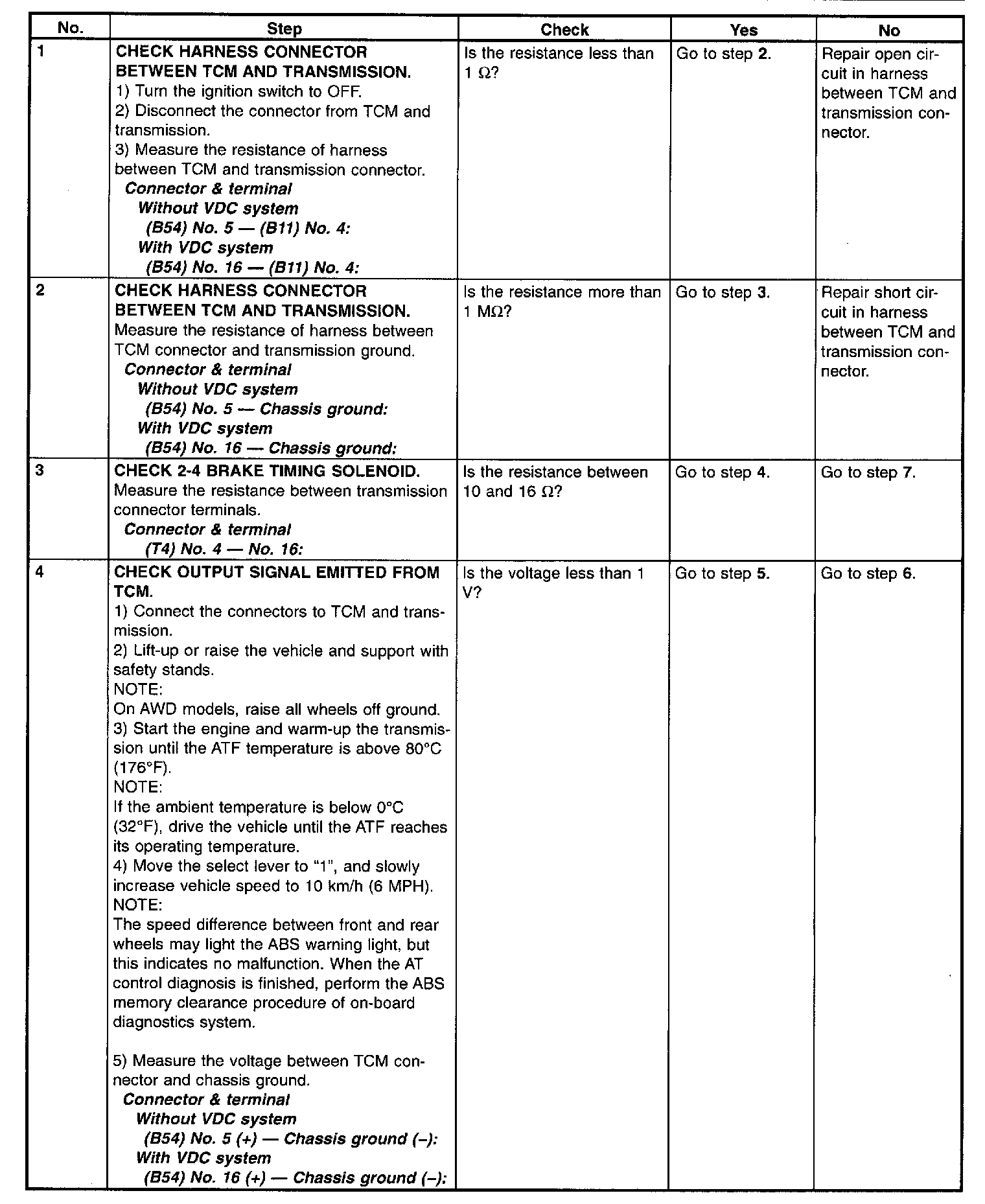

Test Steps 1 through 4

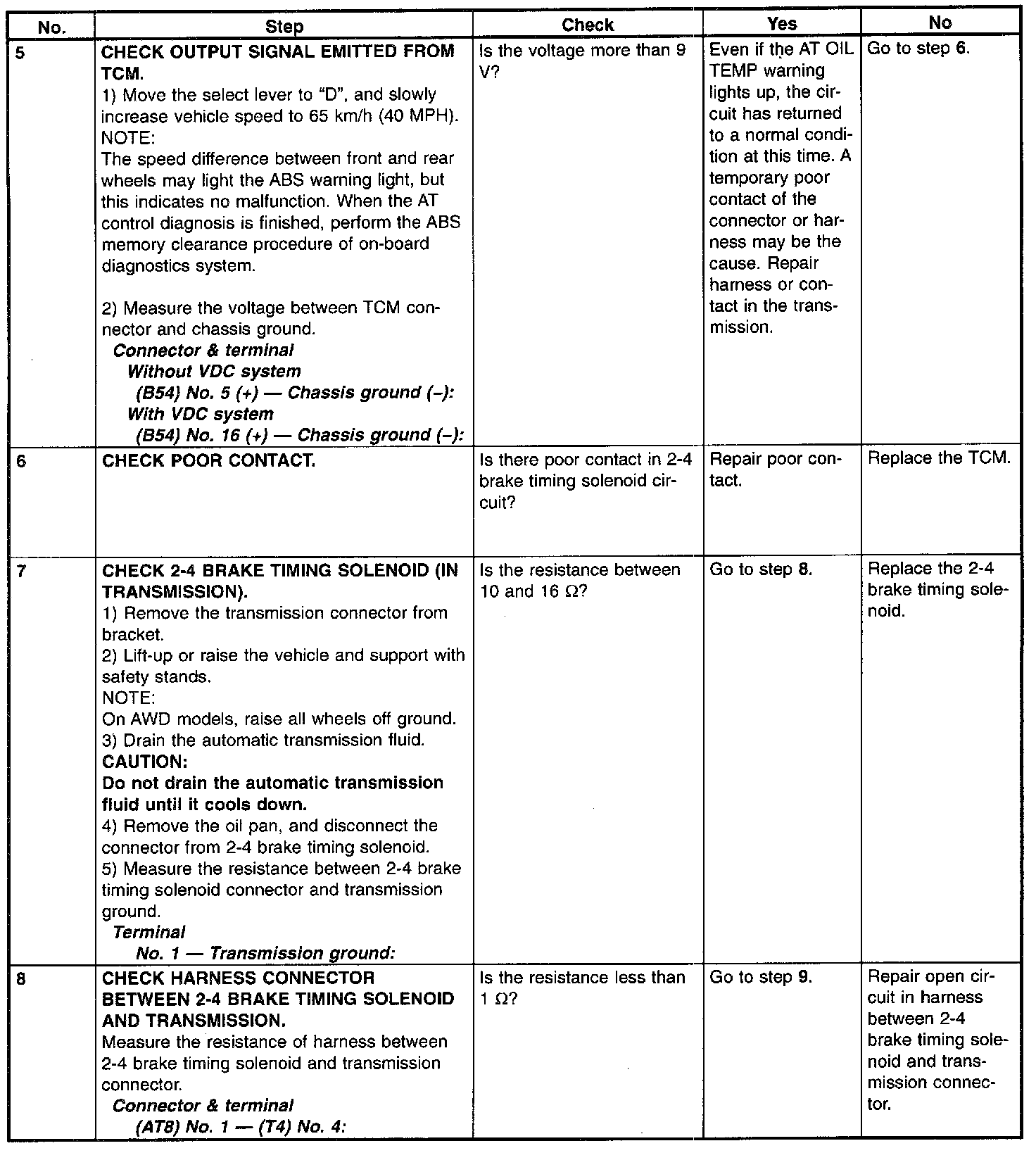

Test Steps 5 through 8

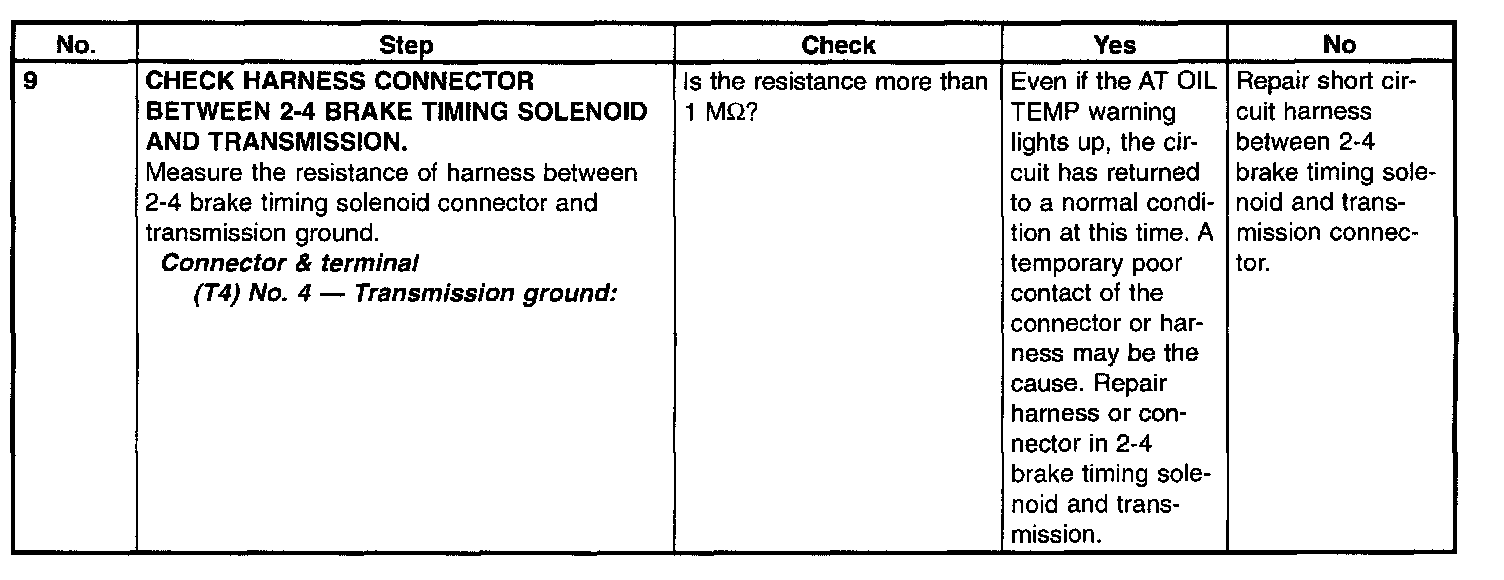

Test Step 9
